073-1151 Rev. B

8

© 2007, 2008 Apple Inc. All rights reserved.

Release the thumbscrew that secures the Xserve RAID Card to the enclosure.

4.

Note: The thumbscrew is captive; you cannot remove it.

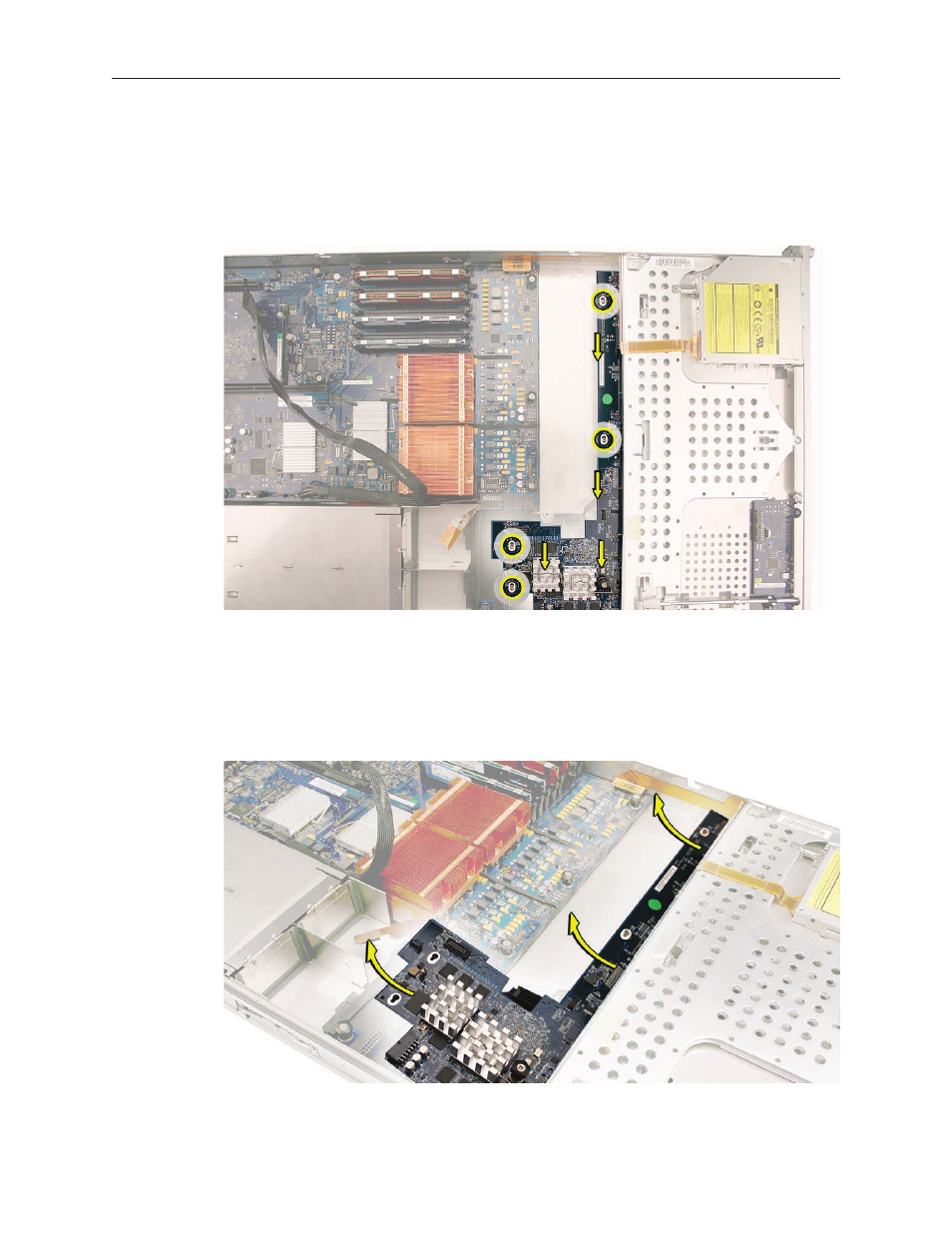

Shift the Xserve RAID Card toward the enclosure side, in the direction of the arrow shown,

5.

until it clears the four mushroom-shaped standoffs that hold the card in place.

Rotate the Xserve RAID Card up slightly from the logic board side (as shown), and carefully

6.

pull the card up and toward the logic board to free it from the standoffs and four alignment
slots in the enclosure. Be careful not to let any Xserve RAID Card components come into
contact with the standoffs or the enclosure as you remove the card.
