073-1151 Rev. B

13

© 2007, 2008 Apple Inc. All rights reserved.

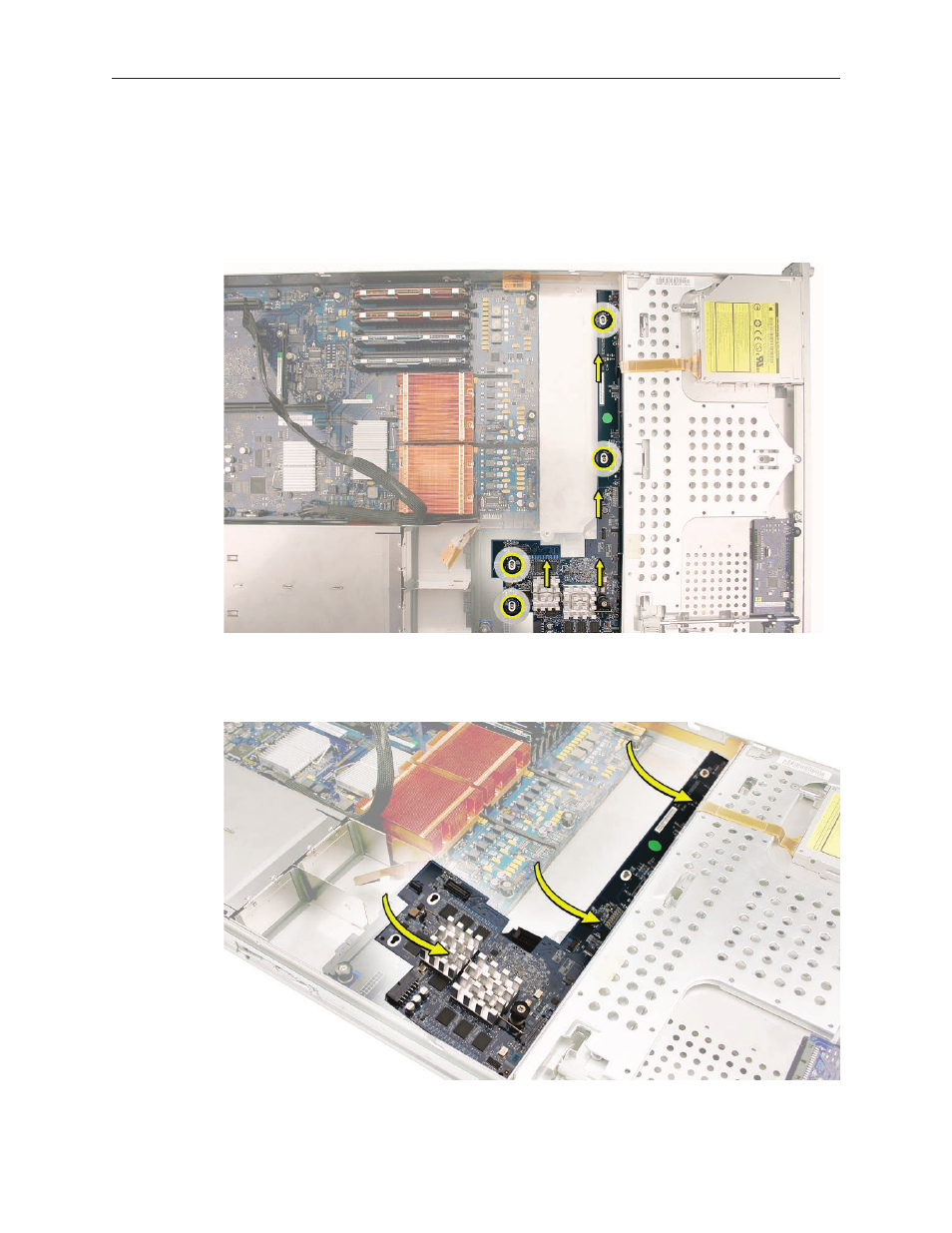

Replacing the Xserve RAID Card

Lower the Xserve RAID card into the enclosure at a slight angle (as shown), and carefully

1.

align the front edge of the card with the four backplane alignment slots in the enclosure. Be
careful not to let any card components come into contact with the standoffs or the
enclosure as you install the card.

Rotate the card downward and over the four mushroom-shaped standoffs.

2.

Slide the card in the direction of the arrow shown to fully seat the card in the enclosure.

3.

Tighten the thumbscrew that secures the card to the enclosure.

4.
