Xserve RAID Card

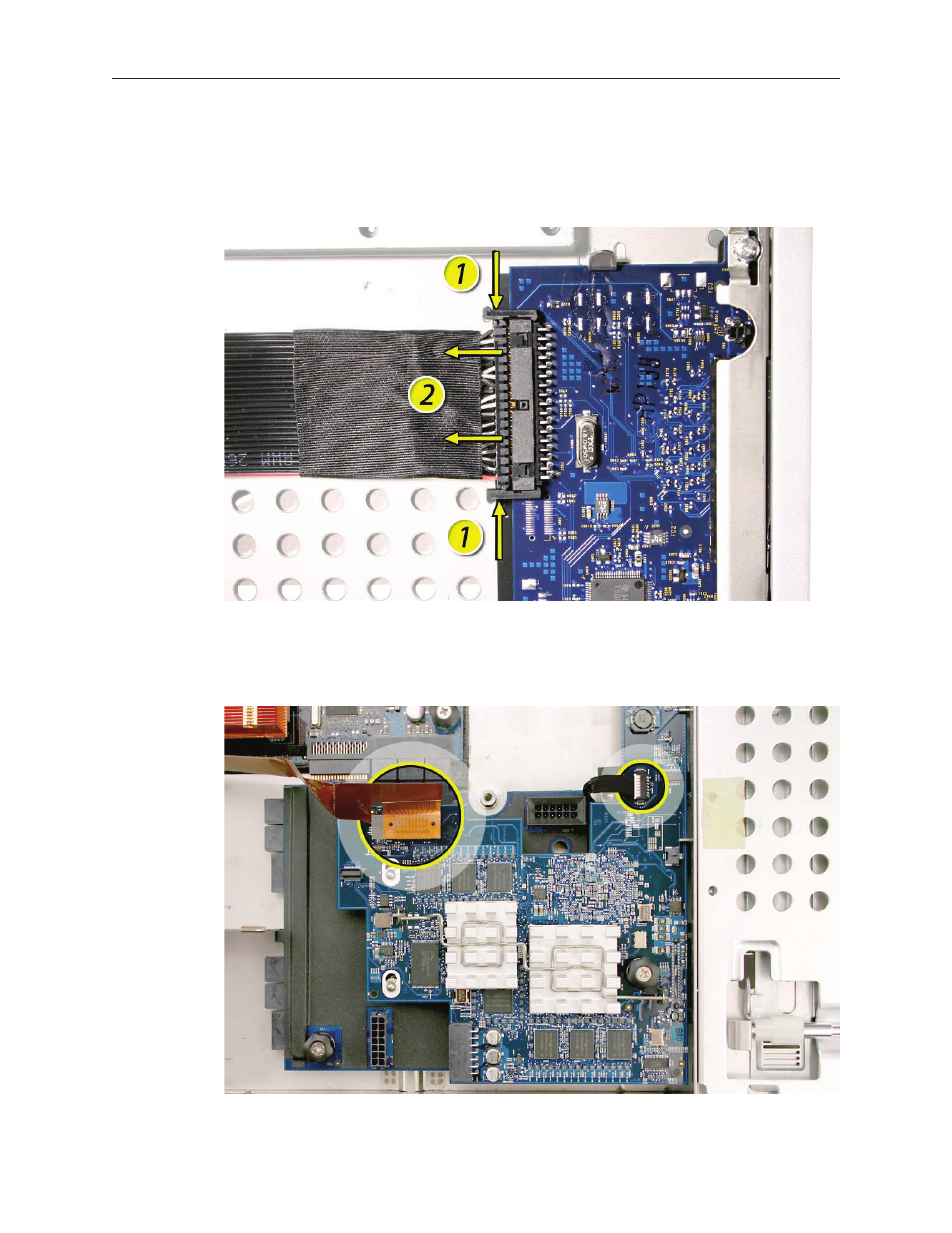

Release the two locking levers on the front panel board cable connector and disconnect the

1.

cable from the front panel board. Move the front panel board cable out of the way.

Disconnect the backplane-to-logic board I/O cable from the Xserve RAID Card.

2.

Disconnect the Xserve RAID Card battery cable from the Xserve RAID Card.

3.
