Apple Xserve (Early 2008) DIY Procedure for Xserve RAID Card Battery User Manual
Page 12
073-1151 Rev. B
12
© 2007, 2008 Apple Inc. All rights reserved.
Replacing the Power Distribution Board

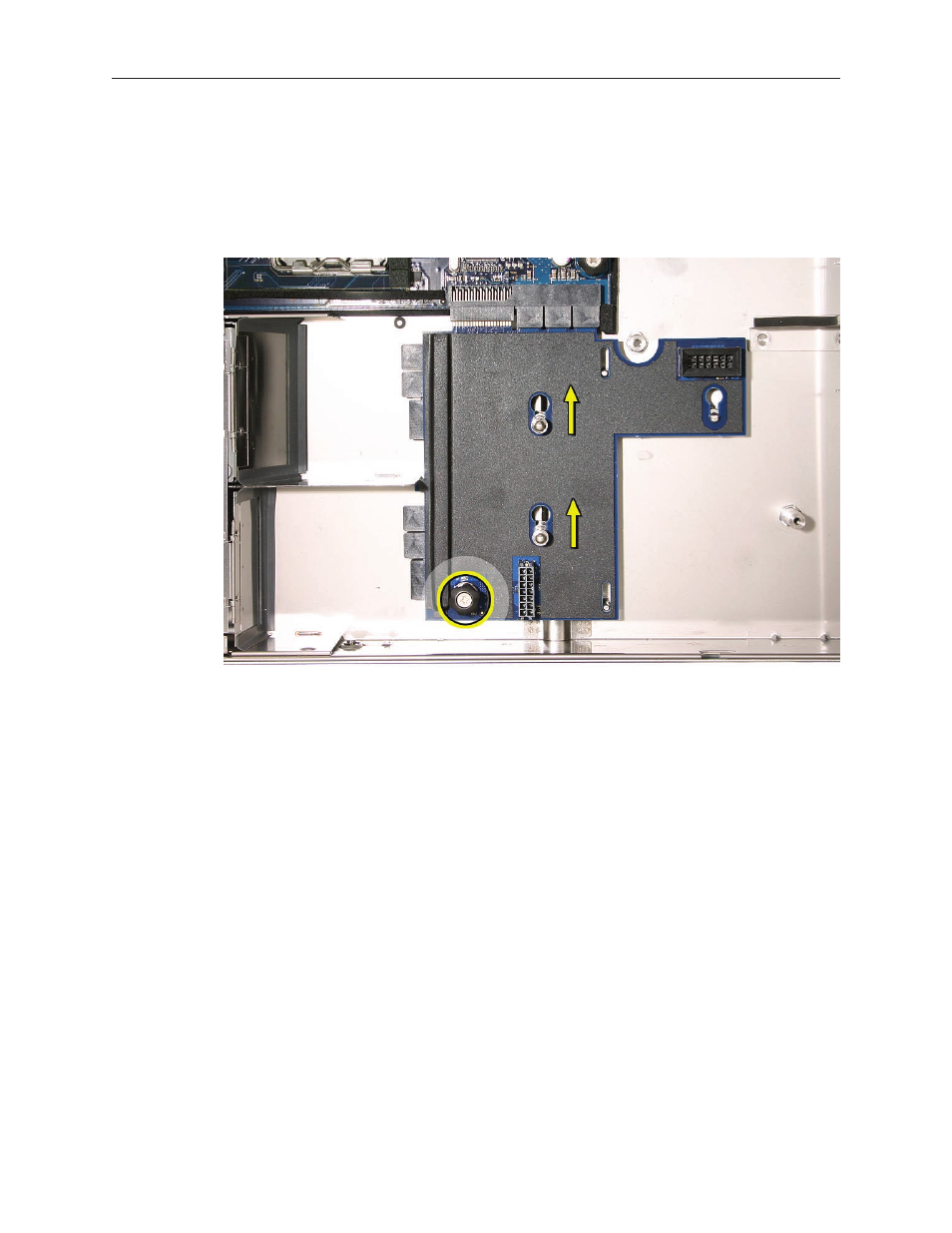

Lower the replacement power distribution board onto its mushroom standoffs in the
1.
enclosure.
Slide the board in the direction shown, to connect it to its connector on the logic board.
2.
Tighten the thumbscrew that secures the power distribution board to the enclosure.
3.
