26 Chapter 3 ESB TDM and EXS24 TDM

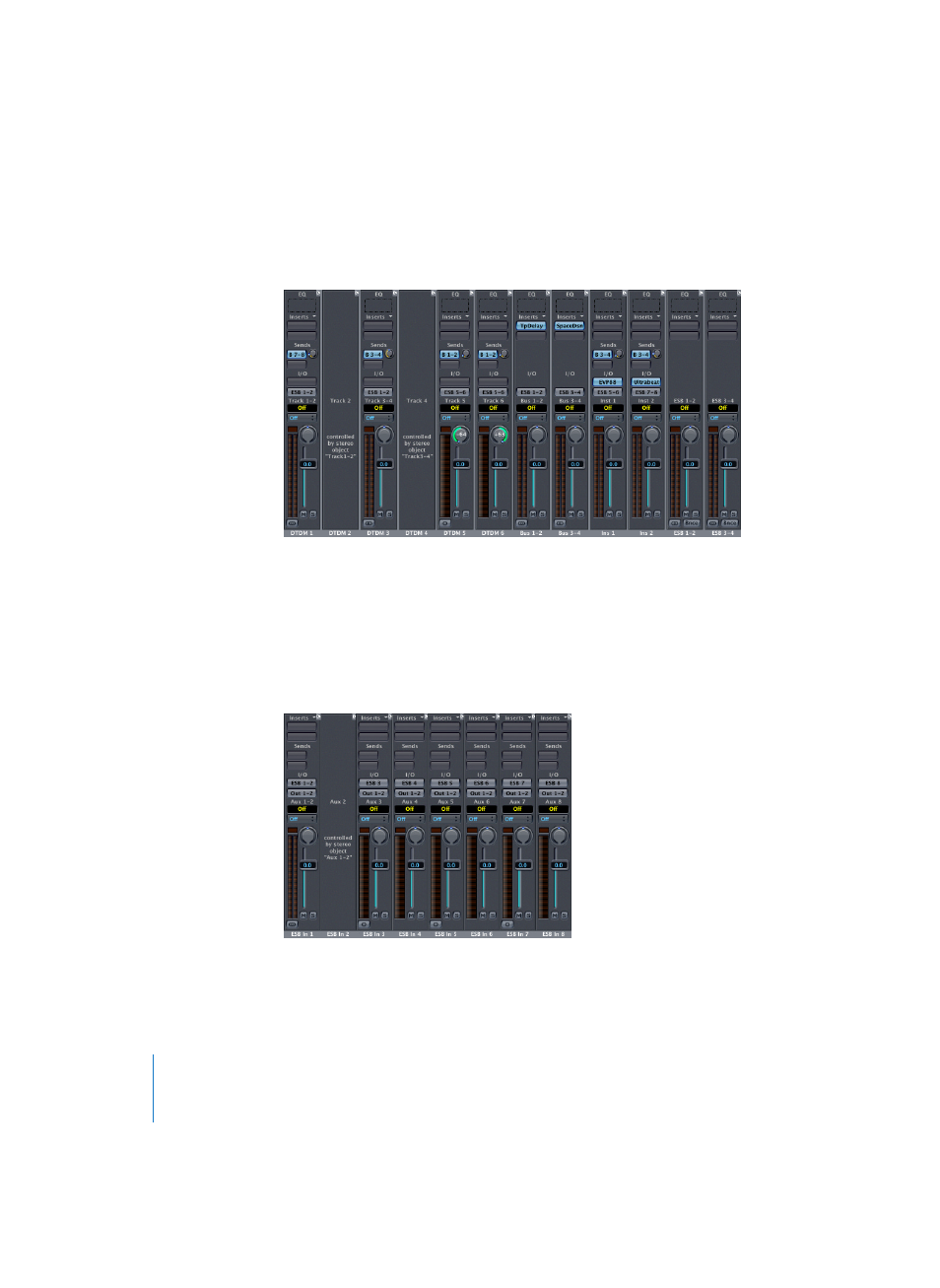

Dependent on the number of any given Object type required, your DTDM mixer could
look something like this:
This mixer example features six Audio Track Objects, two Bus Objects, two Audio
Instrument Objects, and two stereo sums. It is possible to engage up to 255 Audio
Track Objects and 64 Bus Objects.
The eight output signals of this mixer are routed into the TDM mixer, courtesy of
StreamManager technology. The output signals are received by the virtual ESB TDM
inputs—chosen as Inputs on the TDM Aux Objects. In the following example, Aux
channels 1–8 have been set up in this fashion:
