6.3. Maintenance
The Twister does not require regular maintenance. The control knob does not require lubrication.
7. Wiring
7.1. Twister
connector
The module has one connector and the following definitions apply:
Mating connector:
Deutsch DT06-6S GRAY
Mating sockets:
Deutsch 0462-201-16141
Gold mating sockets:
Deutsch 0462-201-1631
Recommended wire gage: 16-20 AWG
Wedge lock:
W6S
PIN
CIRCUIT
DESCRIPTION
1 SYS
POWER (
INPUT
) – battery voltage
(+9VDC…+32VDC)
2 SYS
GROUND (
INPUT
) – battery ground
3 INTERLOCK
(
INPUT
) – Positive/Ground polarity (configurable)
4
SIGNAL REF +
(
INPUT
) – ECM reference voltage, +5 VDC
5
SIGNAL REF -
(
INPUT
) – ECM reference voltage, ground
6 OUTPUT
SIG (
OUTPUT
) – ECM remote throttle control voltage

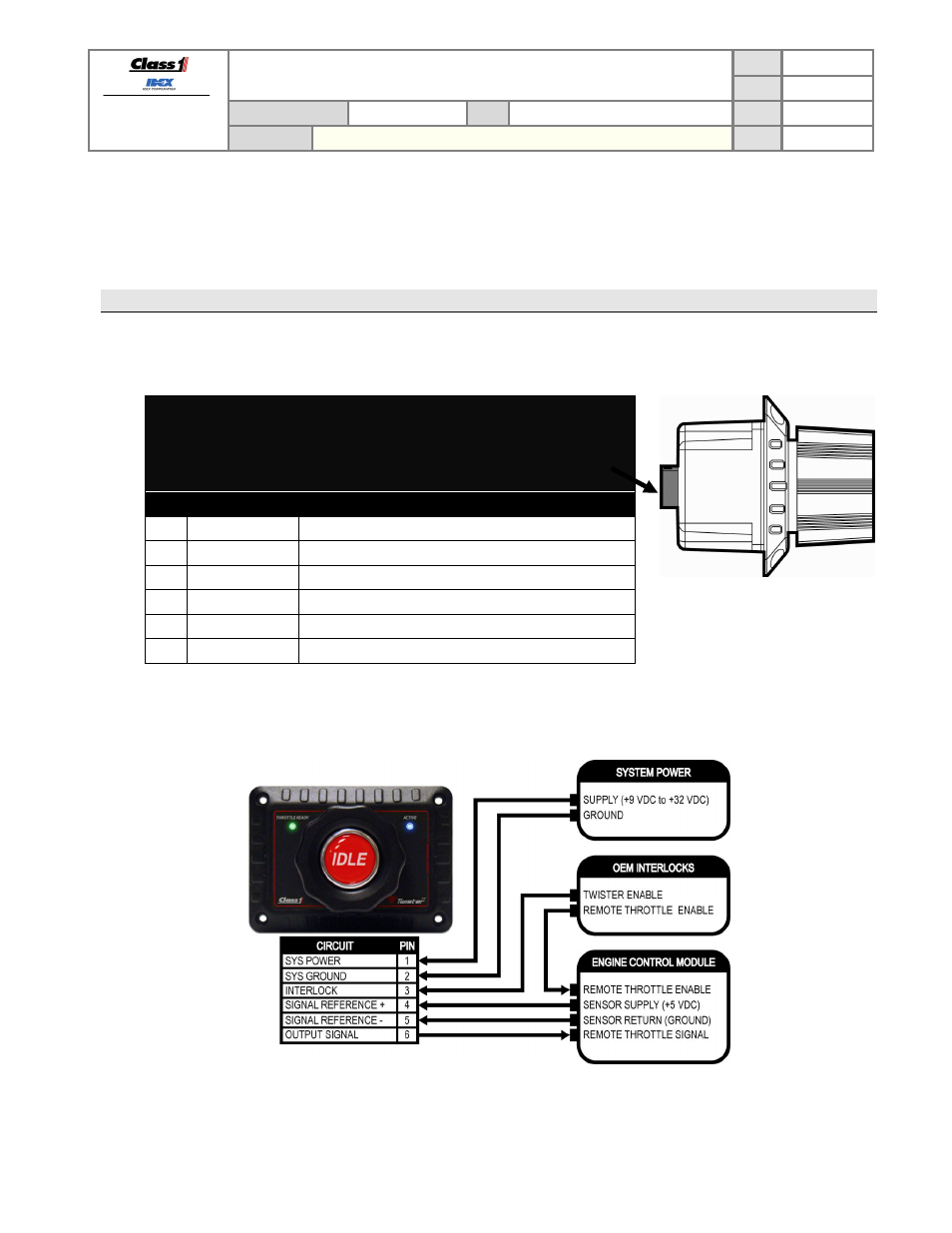

7.2. Twister
wiring
Figure 12.
Twister harness connections.
