Ddec, Ddec -17 – Class1 Throttle Information Reference User Manual
Page 16
16
e:\manuals\throttles\LDSBBT.p65
DDEC
DDECIII ECM
510 Throttle Signal
916 5 VDC
952 GROUND
916
952
510
916
952
510
525
10K POT
Vernier Throttle
manuals\throttles\ddc\ddeciiiA.ai

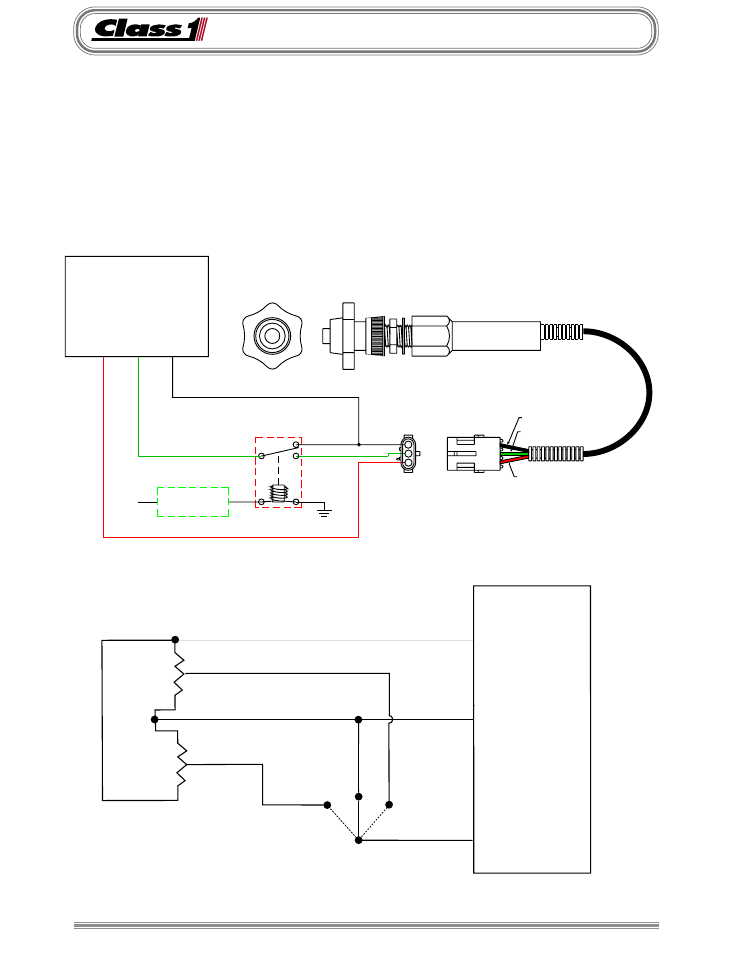

Detroit Diesel DDEC III engine ECMs are ready to connect and operate without any extra
programming. The remote throttle is called the Variable Speed Governor and the signal input
is to ECM terminal D-1.
Interlocking should be accomplished so that the circuit is grounded whenever the remote throttle
should NOT be used. When the circuit is grounded, it is called 525 and when it is operational,
it is called 510.
DDEC ECM
VIH Connector
A-3 D-1 C-3
OEM
Interlocks
+12 VDC
BLACK
GREEN
RED
A
B
C
A
B
C
