Engineering Standard Number
C1-102190-A
Digital Pressure Gauge
The digital displays are connected to the OEM harness with a Deutsch 8 pin mini-
connector.
Mating Connector: DTM06-08S
Locking Wedge WM-8S
Mating Terminal: 0462-201-20141 20 gauge socket
General Terminal Assignments:
1) Alarm Output (Ground)
2) Primary Pressure Signal
3) Sensor Supply (+ 5 or +10 VDC)
4) Power (+ 12 VDC)
5) Ground
6) Sensor Ground
7) Signal (frequency or secondary PSI in)
8) Test or Total or Alarm
Not all of the digital displays use all of the terminals.
See individual display pages for application information.
Harnesses are available for the digital displays in various lengths.
These include transmitter and power connections.
Harness Part Numbers by length and application.
5’ 10’ 20’ 30’
Flowmeter Display 102064 102033 102065 103165
Pressure Display 102060 102035 102061 102271
Breathing Air Display 102670 102671 102672
Oxygen System Display “ “ “
Tank Level Display 102193 102194 102195 102729
Dual Transducer 102439Y 102455
Speedometer 102242 102243 102244
DC Voltmeter “ “ “
Dual Display “Y” 102294 102295
Dual Current Amplifier 103318
Display Pigtail 102272 Extension 15’ 103367

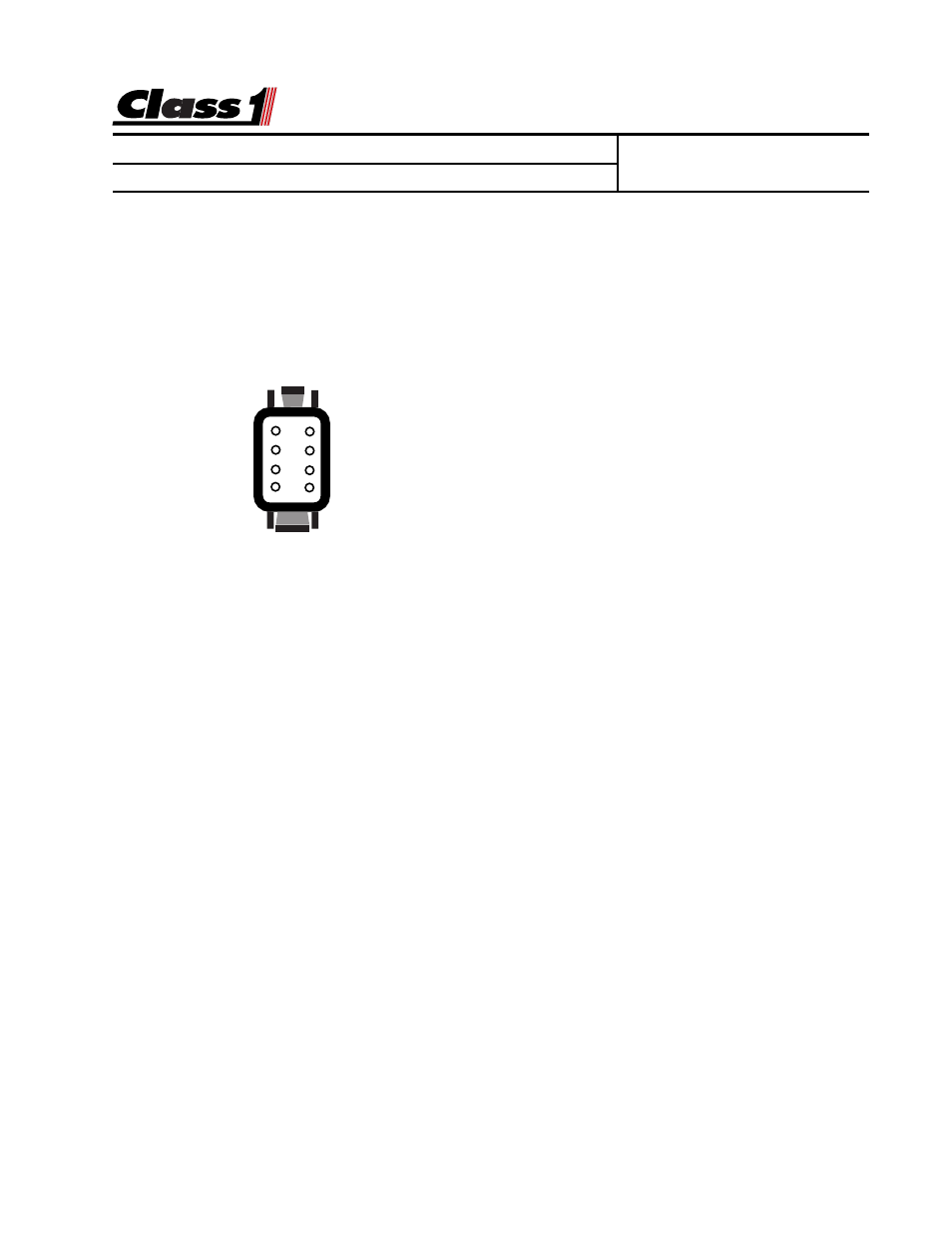

Harness
1
2
3
4 8
7
6
5
Wire Insertion View
