Wire view of aem ems – AEM 30-6610 Series 2 Plug & Play EMS User Manual
Page 13
Page 13 of 14
Connection Diagram for EMS P/N 30-6610
1995 Nissan 240SX S14 KA24DE (OBDI)
1995-1997 Nissan Sentra B14 SR20DE/GA16DE (x/c ’97 1.6L)
1995-1997 200SX B14 SR20DE/GA16DE (x/c ’97 1.6L)
1995-1996 Nissan Altima U13 KA24DE (x/c ’96 CA models)
Pin
1994-1996 Infiniti G20 P10 SR20DE
AEM EMS 30-
6610
I/O
Notes
101
IACV-AAC Open Valve
PW1
Output
PnP for Idle Air Control
102
Injector 1
Injector 1
Output
PnP for Injector 1
103
EGRC-Solenoid Valve
Idle 5
Output
Available, Ground/+12V, 1.5A max
104
Injector 3
Injector 3
Output
PnP for Injector 3
105
---
Low Side 12
Output
Available, Switched Ground, 1.5A max
106
ECCS Ground
Power Ground
Input
Dedicated
107
Injector 2
Injector 2
Output
PnP for Injector 2
108
Rear O2 Sensor Heater
Low Side 4
Output
Available, Switched Ground, 1.5A max
109
Injector 4
Injector 4
Output
PnP for Injector 4
110
---
Low Side 9
Output
Available, Switched Ground, 1.5A max
111
Rear O2 Sensor Heater Ground
Power Ground
Input
Dedicated
112
ECCS Ground
Power Ground
Input
Dedicated
113
Current Return
Permanent +12V
Input
Dedicated
114
REC Relay (240SX) / Intake VTC Solenoid (1.6L)
Low Side 8
Output
Available, Switched Ground, 1.5A max
115
Front O2 Heater (Except Altima and 240SX)
Low Side 1
Output
Available, Switched Ground, 1.5A max
116
EVAP Vent
Injector 9
Output
Available, Switched Ground, 1.5A max
117
--- Injector
10
Output
Available, Switched Ground, 1.5A max
118
ECCS Ground
Power Ground
Input
Dedicated

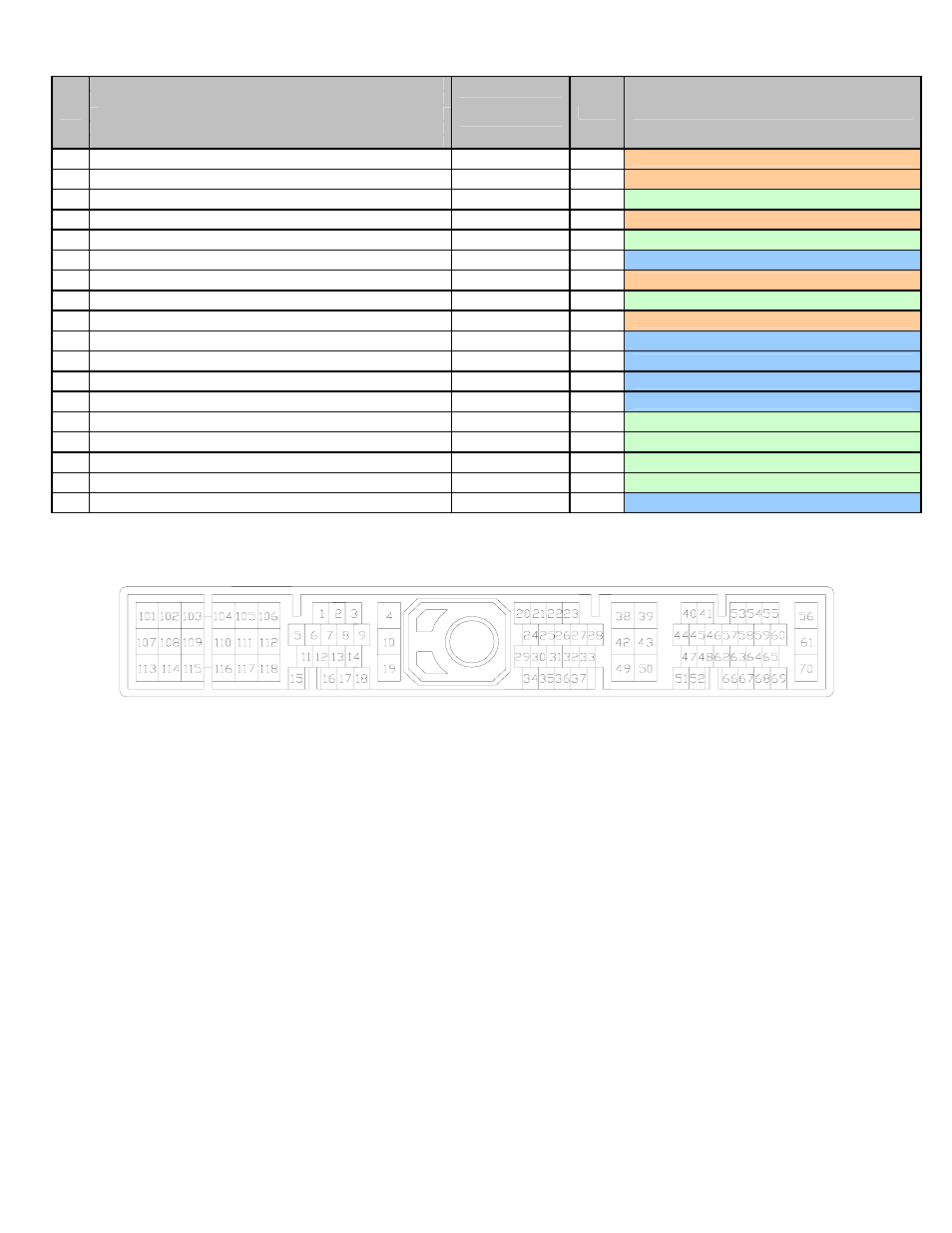

Wire View of AEM EMS
