AEM 30-6610 Series 2 Plug & Play EMS - Manual (Page 12)

Page 12 of 14

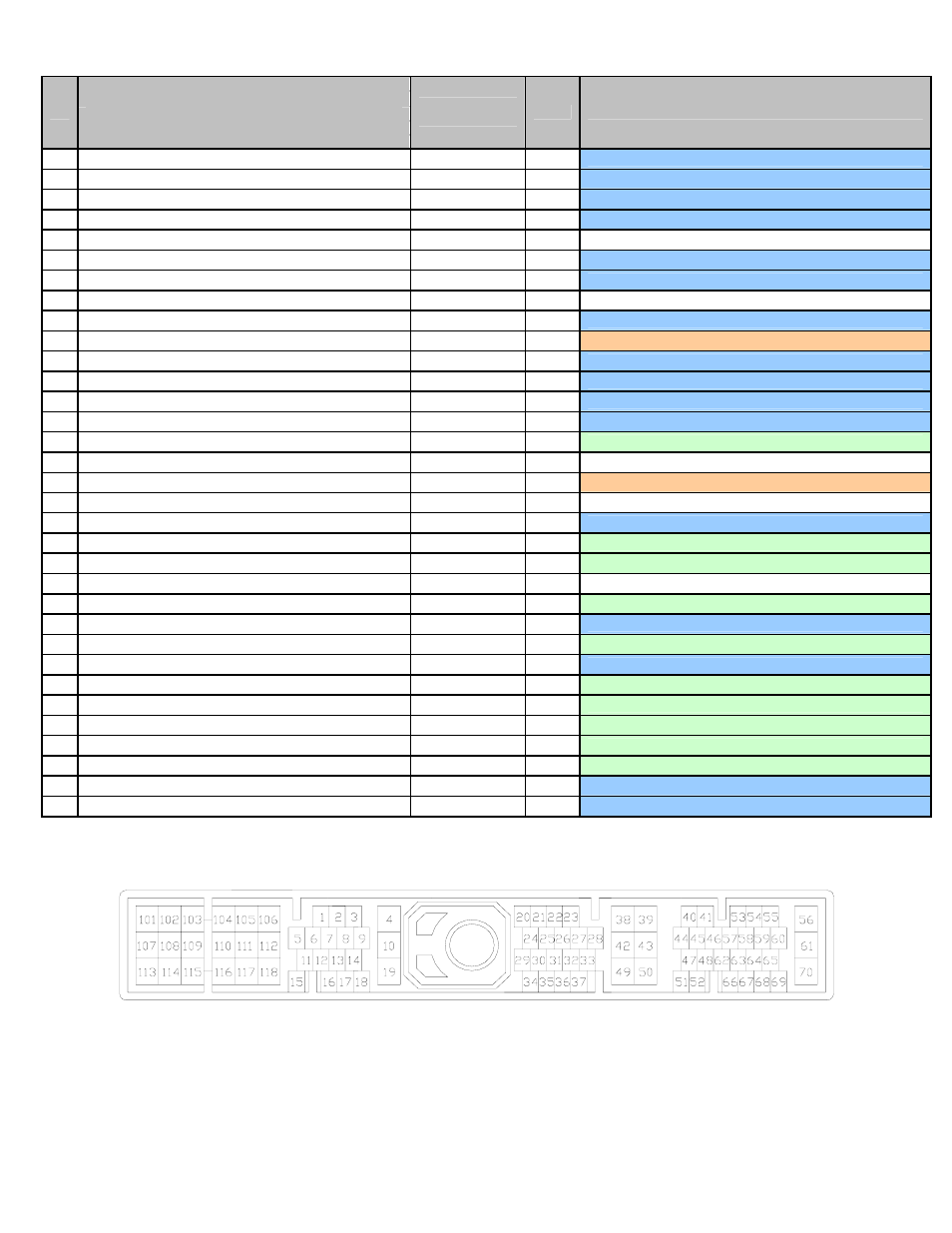

Connection Diagram for EMS P/N 30-6610
1995 Nissan 240SX S14 KA24DE (OBDI)
1995-1997 Nissan Sentra B14 SR20DE/GA16DE (x/c ’97 1.6L)
1995-1997 200SX B14 SR20DE/GA16DE (x/c ’97 1.6L)
1995-1996 Nissan Altima U13 KA24DE (x/c ’96 CA models)
Pin
1994-1996 Infiniti G20 P10 SR20DE
AEM EMS 30-
6610
I/O Notes
38 Ignition Switch Main Relay Input Dedicated, +12V activates Main Relay circuit
39 ECCS Ground Power Ground Input Dedicated
40 Camshaft Position Reference Signal Cam (T2) Signal Input Dedicated, Connected to Pin 44
41 Camshaft Position Signal Crank Signal Input Dedicated
42 IACV-AAC Close Valve (Except 2.0L) --- --- Not Used
43 ECCS Ground Power Ground Input Dedicated
44 Camshaft Position Reference Signal Cam (T2) Signal Input Dedicated, connected to Pin 40
45 Camshaft Position Signal --- --- Not Used
46 Front Heated Oxygen Sensor O2 #1 Input Dedicated, 0-5V input signal
47 Mass Air Flow Sensor MAF Input PnP for MAF Sensor
48 Mass Air Flow Ground Power Ground Input Dedicated
49 Sensor Power Supply +5V Sensor Output Dedicated
50 Sensor Ground Sensor Ground Output Dedicated
51 Engine Coolant Temperature Sensor Coolant Input Dedicated
52 Rear Heated Oxygen Sensor O2 #2 Input Available, O2 Sensor Input
53 Crankshaft OBD Sensor --- --- Not Used
54 Knock Sensor Knock 1 Input PnP for Knock Sensor
55 Rear Defogger Switch (Except 2.0L) --- --- Not Used
56 Power Supply for ECM +12V Switched Input Dedicated
57 Air Conditioner FICD (240SX & Altima only) Low Side 2 Output Available, Switched Ground, 1.5A max (connected to Pin 37)
58 Data Link Connector for GST Coil 2 Output Available, Switched Ground, 1.5A max
59 --- --- --- Not Used
60 Headlamp Switch (except 2.0L) Switch 3 Input Available, Switched Input
61 Power Supply for ECM +12V Switched Input Dedicated
62 EGR Temperature Sensor EGT 1 Input Available, Jumper set to 0-5V Input
63 Intake Air Temperature Sensor AIT Input Dedicated
64 Data Link Connector for CONSULT Coil 3 Output Available, Switched Ground 1.5A max
65 Data Link Connector for CONSULT EGT 2 Input Available, Jumper set to 0-5V Input
66 --- MAP Input Available, Manifold Pressure Sensor
67 --- EGT 4 Input Available, Jumper set to 0-5V Input
68 Data Link Connector for CONSULT Knock 2 Input Available, 0-5V Input
69 --- CAN1H Output Dedicated, CAN1 high side
70 Back-Up Power Supply Permanent +12V Input Dedicated
Wire View of AEM EMS
