Application Notes for EMS P/N 30-6601
1991-1993 Silvia S13 SR20DET, 1991-1995 180SX SR20DET
Make: Nissan Spare Injector Drivers: Inj 5, Pin 23
Model: Silvia and 180SX Spare Injector Drivers: Inj 6, Pin 105
Years Covered: 1991-1995 Spare Injector Drivers: Inj 7, Pin 14
Engine Displacement: 2.0L Spare Injector Drivers: Inj 8, Pin 114
Engine Configuration: Inline 4
Firing Order: 1-3-4-2
N/A, S/C or T/C: Turbocharged
Load Sensor Type: 0-5V MAF Boost Solenoid: PW 2, Pin 111
EGT 1 Location: Pin 5
# Coils: 4 EGT 2 Location: Pin 15
Ignition driver type: 0-5V Falling Edge trigger EGT 3 Location: Pin 44
EGT 4 Location: Pin 115
Number of Injectors: 4 (P&H drivers: Inj 1-4) Spare 0-5V Channels: MAP, Pin 35
Factory Injectors: 370cc Saturated Spare 0-5V Channels: ADCR11, Pin 33
Factory Inj Resistors: No
Injection Mode: Sequential
Knock Sensors used: 1 Spare Low Side Driver: LS2, Pin 45
Lambda Sensors
used: 1 Spare Low Side Driver: LS4, Pin 102
Idle Motor Type: Duty-controlled solenoid Spare Low Side Driver: LS5, Pin 10
Main Relay Control: Yes (not user programmable) Spare Low Side Driver: LS6, Pin 11
Crank Pickup Type: Optical
**Crank Teeth/Cycle: 24 (AEM trigger disc) Check Engine Light: LS10, Pin 24
Cam Pickup Type: Optical Spare High Side Driver: HS1, Pin 28
**Cam Teeth/Cycle: 1 (AEM trigger disc)
Transmissions
Offered: Manual/Automatic
Trans Supported: Manual
Drive Options: RWD Spare Switch Input: Switch 2, Pin 43
Supplied Connectors: N/A
AEM extension/patch
harness 30-2995
A/C Switch Input: Switch 6, Pin 41

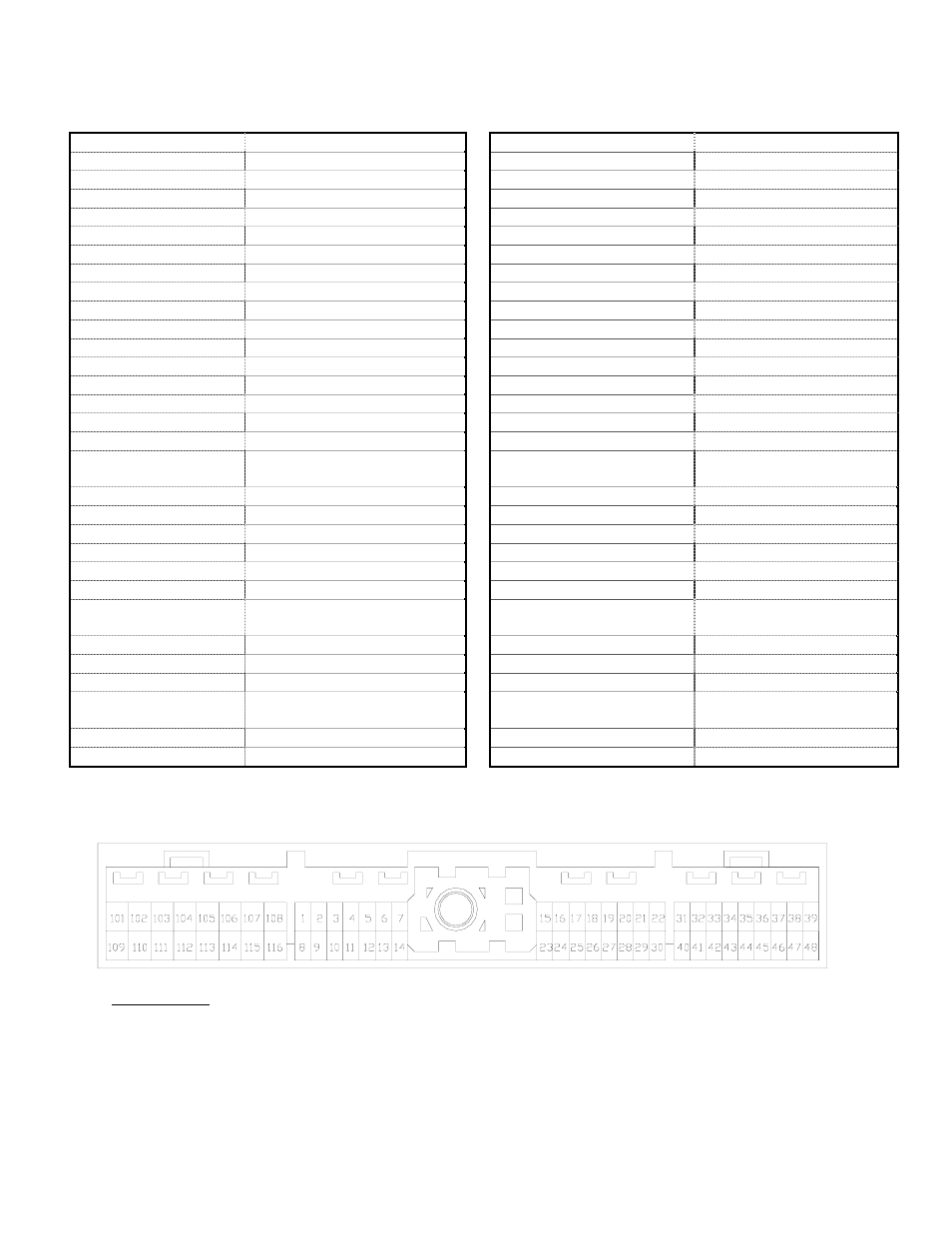

Wire View of AEM EMS
WARNING:
*All switch input pins must connect to ground; the switch should not provide 12V power to
the EMS because that will not be detected as on or off.
The function of several pins have been changed from the original 30-1601 EMS, please
see the pinout chart for more info.
