AEM 30-6601 Series 2 Plug & Play EMS - Manual (Page 10)

Connection Diagram for EMS P/N 30-6601
Pin
1991-1995 Nissan 180SX SR20DET,
1991-1993 Nissan Silvia S13 SR20DET
AEM EMS 30-6601 I/O Notes
15 Data Link Connector EGT 2 Input Available, jumper set for 0-5V Input
16 Mass Air Flow Sensor MAF Input PnP for MAF Sensor
17 Mass Air Flow Ground Power Ground Input Dedicated
18 ECT Sensor Coolant Input PnP for Coolant Temp Sensor
19 Oxygen Sensor O2 #1 Input Dedicated, 0-5V input signal
20 Throttle Position Sensor TPS Input PnP for Throttle Position Sensor
21 Sensor Ground Sensor Ground Output Dedicated, sensors only
22 Crankshaft Reference Signal Cam (T2) Input Dedicated, must use AEM replacement trigger disc.
23 Data Link Connector Injector 5 Output Available, Switched Ground, 1.5A Max
24 Malfunction Indicator Light Low Side 10 Output Available, Switched Ground, 1.5A Max
25 Exhaust Over Temp Warning Lamp Low Side 3 Output Available, Switched Ground, 1.5A Max
26 Exhaust Temperature sensor AIT Input
Available, Air Intake Temperature Sensor Input,
(2.2k pull-up resistor to 5V)
27 Knock Sensor Knock 1 Input PnP for Knock Sensor
28 A/T Signal No. 4 High Side 1 Output Available, Switched +12V, 1.5A Max
29 Sensor Ground Sensor Ground Output Dedicated, sensors only
30 Crankshaft Reference Signal Cam (T2) Input Dedicated, must use AEM replacement trigger disc.

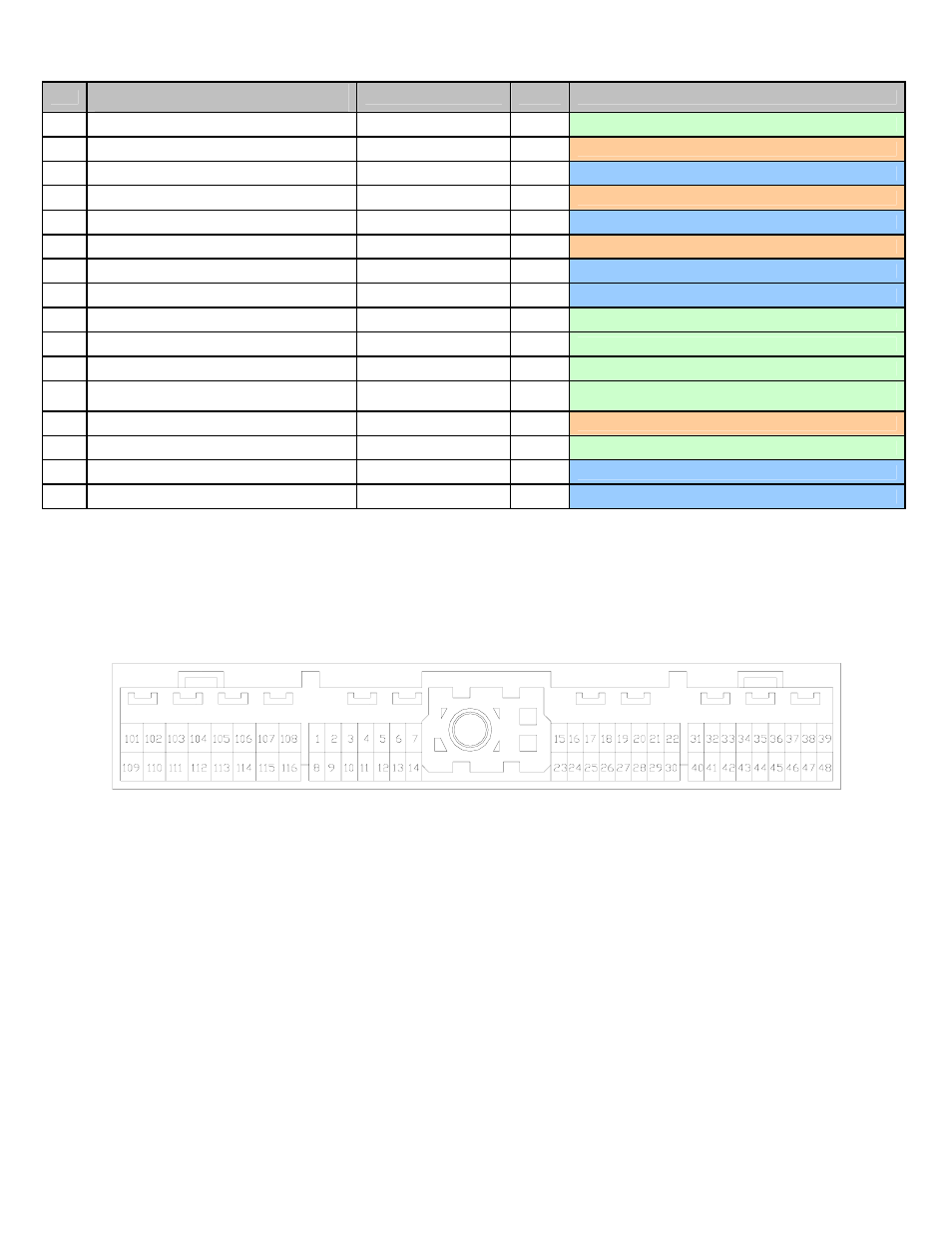

Wire View of AEM EMS
Connection Diagram for EMS P/N 30-6601
Page 10 of 13
