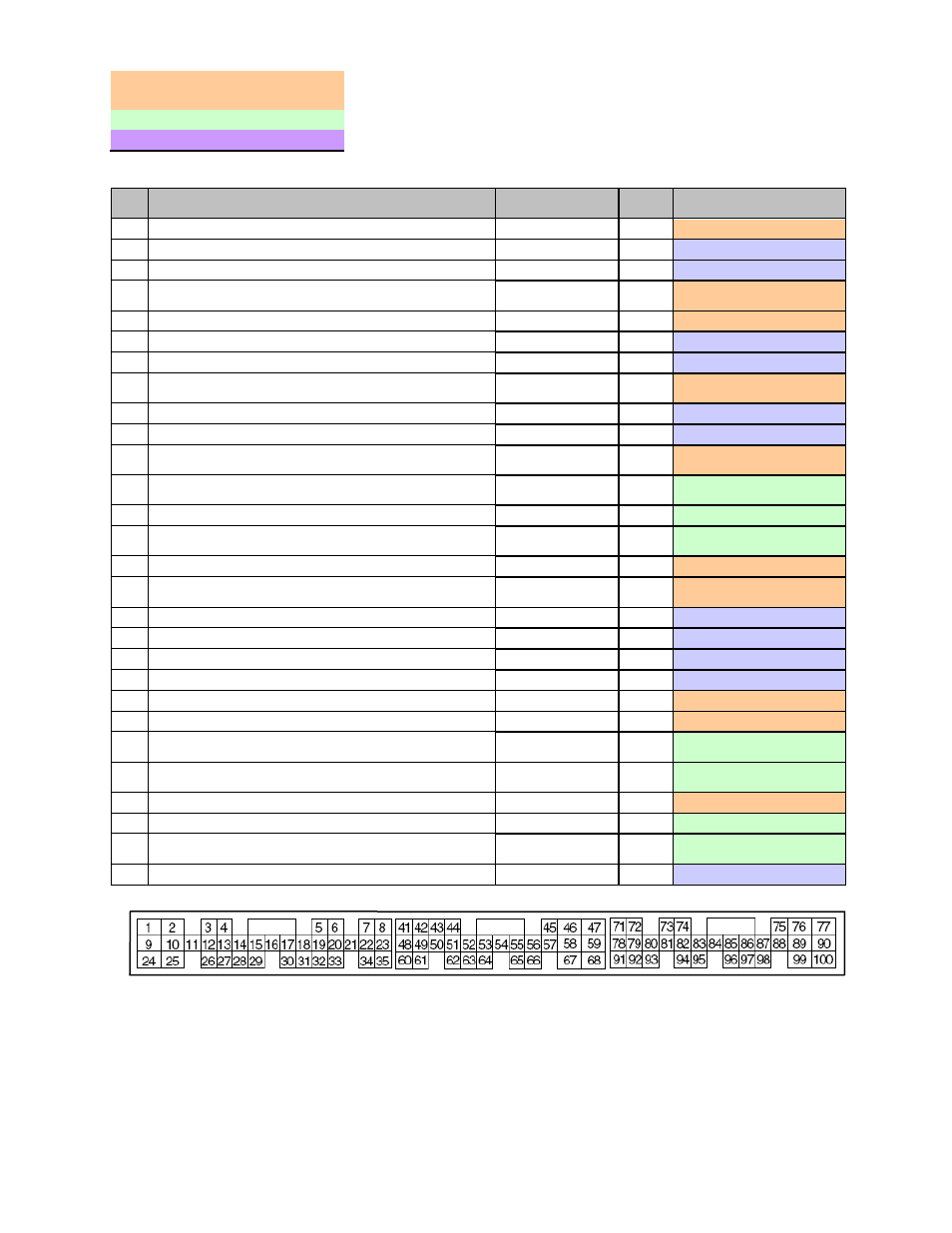

Connection Diagram for EMS P/N 30-6320
PnP
Means the Plug and Play system comes with this configured for proper operation of this
device. Is still available for reassignment by the end user.
Avail
Means the function is not currently allocated and is available for use
Dedicated
Means the location is fixed and cant be changed
Pin
2006 Mitsubishi Lancer EVO IX
AEM EMS 30-
6320
I/O
Notes
41
Turbocharger Wastegate Solenoid
PW #2
Output
PnP for Boost Control
42
Sensor Supplied Voltage
5V Sensor
Output
Dedicated
43
Crankshaft Position Sensor
Crank (T1)
Input
Dedicated
44
Engine Coolant Temperature Sensor
Coolant
Input
PnP for Coolant
Temperature
45
Tachometer Signal
Low Side Driver #7
Output
PnP for Tachometer
46
Power Ground
Power Ground
Input
Dedicated
47
Power Supply
Power
Input
Dedicated
48
Fuel Pressure Solenoid Valve
Low Side Driver
#12
Output
PnP for Fuel Pressure
Control
49
Sensor Ground
Sensor Ground
Output
Dedicated
50
Camshaft Position Sensor
Cam (T2)
Input
Dedicated
51
Barometric Pressure Sensor
Baro
Input
PnP for Barometric
Pressure
52
Generator FR Terminal
EGT #1
Input
Available, RTD
Temperature
53
Intake Camshaft Position Sensor
Car Speed
Input
PnP for MIVEC
54
Power Steering Pressure Switch
Switch #5
Input
Avail, switch must connect
to ground
55
Fuel Pump Relay 3 (Low Speed)
Low Side Driver #4
Output
PnP for Fuel Pump
56
Intercooler Water Spray Motor (European EVO Only)
PW #1
Output
PnP for Intercooler Water
Spray
57
MFI Relay
Main Relay (C5)
Output
Dedicated
58
Power Ground
Power Ground
Input
Dedicated
59
Power Supply
Power
Input
Dedicated
60
Battery Backup
Permanent Power
Input
Dedicated
61
Volume Airflow Sensor
Spare Speed
Input
PnP for Air Flow Meter
62
Intake Air Temperature Sensor
AIT
Input
PnP for Air Temperature
63
---
Idle #6
Output
Available Switched Gnd,
1.5A Max
64
---
Idle #8
Output
Available Switched Gnd,
1.5A Max
65
A/C Switch 2
Switch #3
Input
PnP for A/C
66
Intercooler Water Spray Auto Switch (European EVO Only)
MAF
Input
Available, 0-5V sensor input
67
Intercooler Water Spray Manual Switch (European EVO
Only)
PW #1
Output
Available Switched Gnd,
1.5A Max
68
Ignition Start Switch
Cranking (SW1)
Input
Dedicated
