AEM 30-6100 Series 2 Plug & Play EMS User Manual
Page 9
Page 9 of 12
This product is legal in California for racing vehicles only and should never be used on public highways.

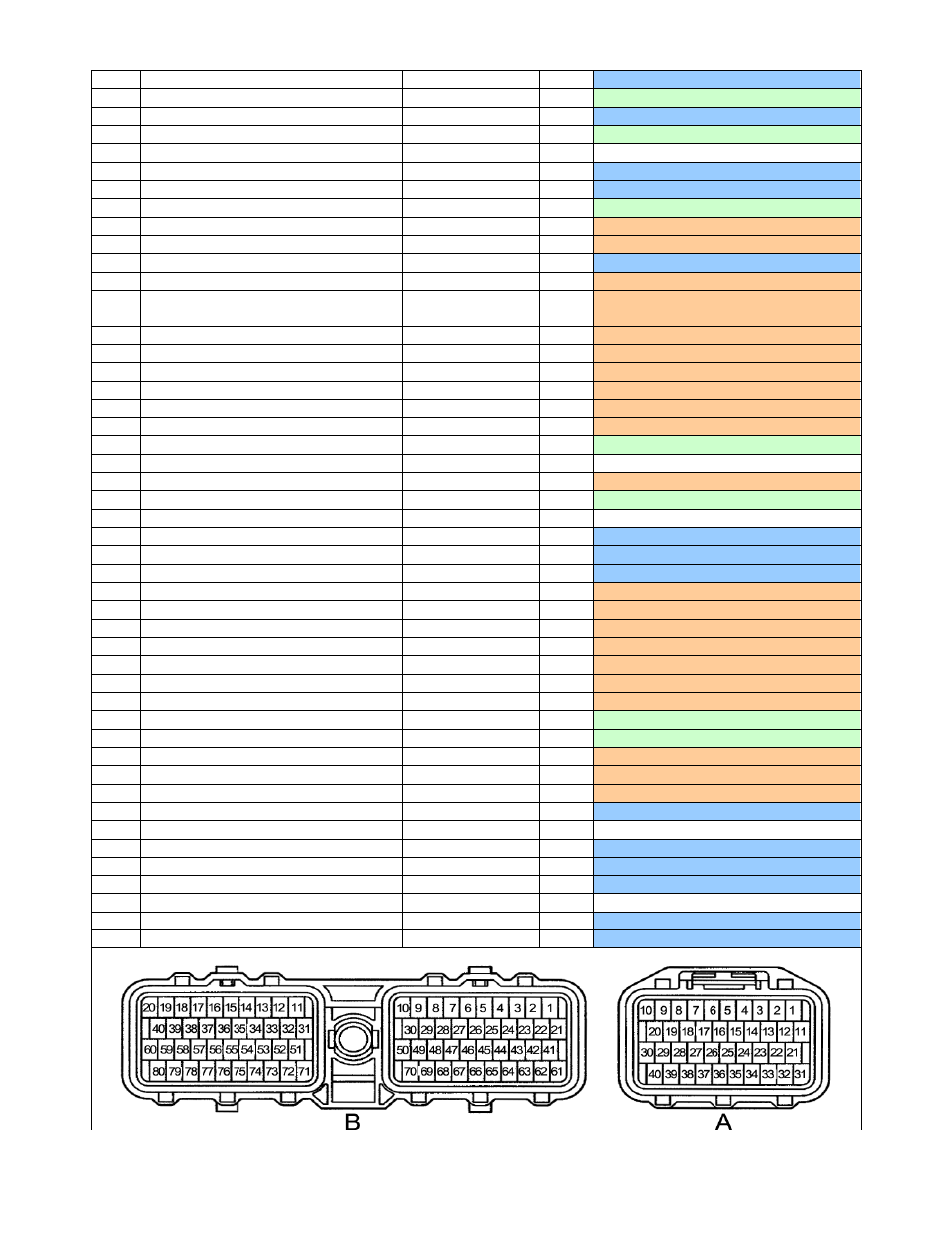

1B
Input Shaft Speed (B21) ground
Timing Ground
Output
Dedicated
2B
---
EGT 1
Input
Jumper: 0-5V, thermistor or EGT pull up
3B
VSS Ground
Timing Ground
Output
Dedicated
4B
---
EGT 2
Input
Jumper: 0-5V, thermistor or EGT pull up
5B
Cam Sensor 2 (G2) Ground
---
---
Not Used
6B
Cam Sensor 1 (G1) Ground
Timing Ground
Output
Dedicated
7B
Crank Sensor (NE) Ground
Timing Ground
Output
Dedicated
8B
---
EGT 3
Input
Jumper: 0-5V, thermistor or EGT pull up
9B
Auto Trans Sol No2 S2 (Auto only)
HS3
Output
PNP Auto Trans sol #2
10B
Auto Trans Sol No1 S1 (Auto only)
HS4
Output
PNP Auto Trans sol #1
11B
5V Sensor Reference power
+5V Sensor
Output
Dedicated
12B
A/T Sol No5 (Line Press, A/T only)
PW 1
Output
PNP Auto line pressure
13B
A/T Sol No4 (Engagement, A/T only)
PW 4
Output
PNP Auto gear engagement speed
14B
A/T Sol No3 (Converter, A/T only)
PW 3
Output
PNP Auto Converter Lockup
15B
Injector 6
Injector 6
Output
PnP Injector 6 (P&H 4A/1A driver)
16B
Injector 5
Injector 5
Output
PnP Injector 5 (P&H 4A/1A driver)
17B
Injector 4
Injector 4
Output
PnP Injector 4 (P&H 4A/1A driver)
18B
Injector 3
Injector 3
Output
PnP Injector 3 (P&H 4A/1A driver)
19B
Injector 2
Injector 2
Output
PnP Injector 2 (P&H 4A/1A driver)
20B
Injector 1
Injector 1
Output
PnP Injector 1 (P&H 4A/1A driver)
21B
Input Shaft Speed signal (Auto only)
Switch 2
Input
Available Switch input
22B
---
---
---
Not Used
23B
Tail Shaft Speed sensor (Auto only)
T4 (Spare Speed)
Input
PNP for Vehicle Speed with AT vehicles
24B
Auto Trans Fluid Temp (Auto only)
ADCR14
Input
Available 0-5V input, 2.2k pull up to 5V
25B
Cam Sensor 2 (G2) Input
---
---
Not Used
26B
Cam Sensor 1 (G1) input
Cam Sensor +
Input
Dedicated
27B
Crank Sensor (NE) input
Crank Sensor +
Input
Dedicated
28B
Sensor Ground
Sensor Ground
Output
Dedicated, Sensors only
29B
DATALINK connector
IDLE7
Output
PNP Idle control motor
30B
---
IDLE8
Output
PNP Idle control motor
31B
Auto Trans Sol No5 (SLT+, Auto only)
+12V Switched
Output
PNP Auto trans line pressure
32B
Idle 4
IDLE4
Output
PNP Idle control motor
33B
Idle 1
IDLE1
Output
PNP Idle control motor
34B
Idle 3
IDLE3
Output
PNP Idle control motor
35B
Idle 2
IDLE2
Output
PNP Idle control motor
36B
---
IDLE5
Output
Available idle driver
37B
---
IDLE6
Output
Available idle driver
38B
VSV For exhaust bypass valve
LS4
Output
PNP for EBP on stock twins
39B
VSV For Exhaust gas control valve
LS5
Output
PNP for EGC on stock twins
40B
VSV For intake air control
LS3
Output
PNP for IAC for stock twins
41B
5V Reference
+5V Sensor
Output
Dedicated
42B
Sub Throttle TPS signal input
---
---
Not Used
43B
TPS signal input
TPS
Input
Dedicated
44B
Coolant Sensor Input
Coolant
Input
Dedicated
45B
Air Temp Sensor
Air Temp
Input
Dedicated
46B
EGR gas Temp Sensor
---
---
Not Used
47B
AFR#1
O2 #1
Input
Dedicated, 0-5V signal
48B
AFR#2
O2 #2
Input
Dedicated, 0-5V signal
