AEM 30-6100 Series 2 Plug & Play EMS User Manual
Page 10
Page 10 of 12
This product is legal in California for racing vehicles only and should never be used on public highways.

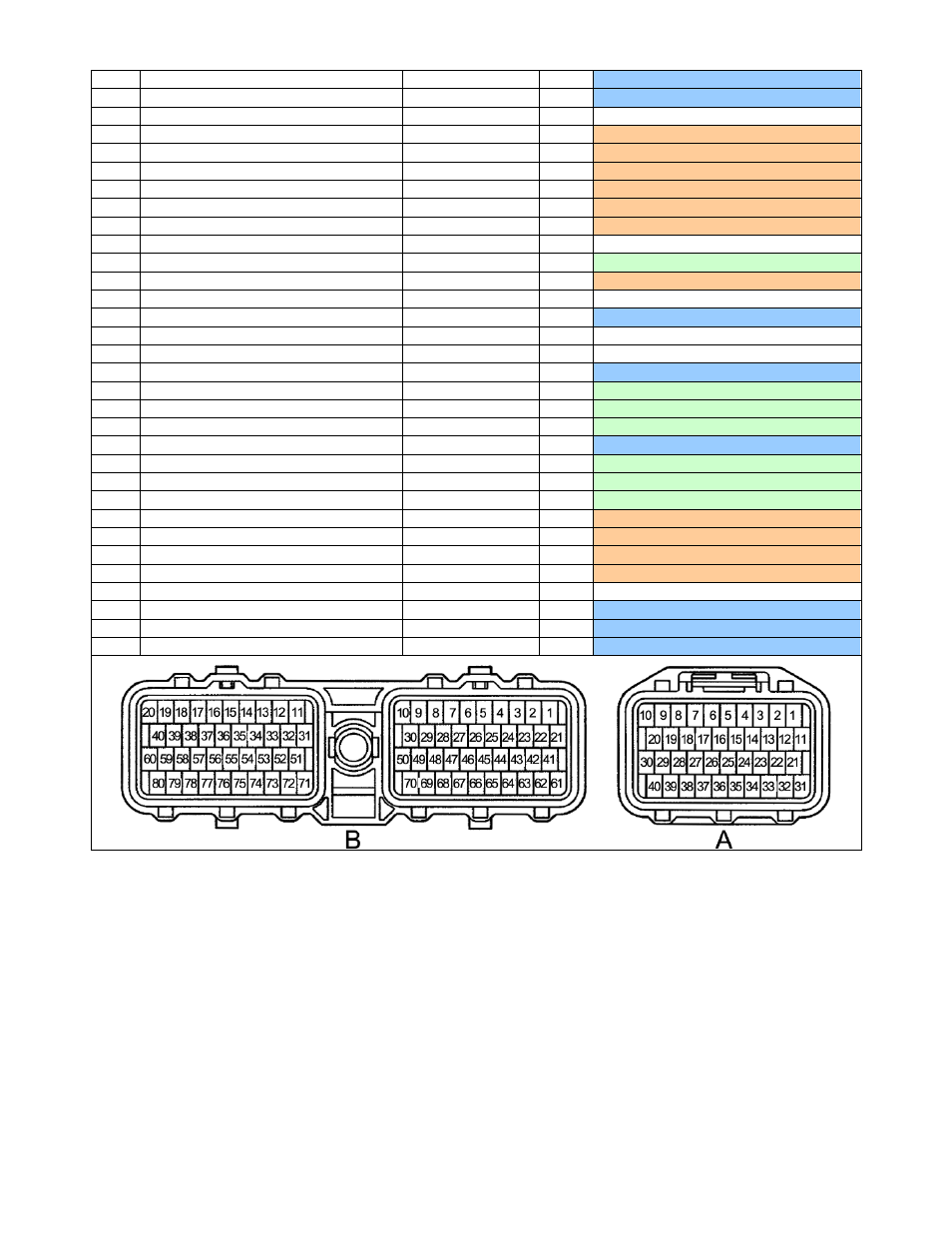

49B
Rear Knock Sensor
Knock 2
Input
Dedicated, software knock filter
50B
Front Knock Sensor
Knock 1
Input
Dedicated, software knock filter
51B
FAIL (98 only)
---
---
Not Used
52B
Igniter 6
Coil 6
Output
Jumper: falling (5-0V) or rising (0-12V) edge
53B
Igniter 5
Coil 5
Output
Jumper: falling (5-0V) or rising (0-12V) edge
54B
Igniter 4
Coil 4
Output
Jumper: falling (5-0V) or rising (0-12V) edge
55B
Igniter 3
Coil 3
Output
Jumper: falling (5-0V) or rising (0-12V) edge
56B
Igniter 2
Coil 2
Output
Jumper: falling (5-0V) or rising (0-12V) edge
57B
Igniter 1
Coil 1
Output
Jumper: falling (5-0V) or rising (0-12V) edge
58B
Igniter return IGF1 to ECU ( 5V signal)
---
---
Not Used
59B
---
LS11
Output
Available Switched Ground 1.5amp max
60B
Boost Control
PW2
Output
PNP for boost control
61B
---
---
---
Not Used
62B
Map Sensor Input
MAP
Input
Dedicated
63B
Idle2 Sw from Sub TPS to ECU & TRAC
---
---
Not Used
64B
Idle1 Sw from Sub TPS to ECU & TRAC
---
---
Not Used
65B
Sensor Ground
Sensor Ground
Output
Dedicated, Sensors only
66B
VG signal for Airflow meter
MAF
Input
Available 0 to 5v input, 100k pull-up to 5V
67B
EFIF (98 only)
EGT 4
Input
Jumper: 0-5V, thermistor or EGT pull up
68B
---
LS9
Output
Available Switched Ground 1.5amp max
69B
Chassis Ground
Power Ground
Both
Dedicated
70B
---
Injector 7
Output
Available, P&H Injector driver 4A/1A
71B
Ox 1 Heater Ground
LS12
Output
Available Switched Ground 1.5amp max
72B
Ox 2 Heater Ground
LS2
Output
Available Switched Ground 1.5amp max
73B
Fuel Pressure up VSV
LS1
Output
PNP fuel pressure up VSV
74B
EVAP Solenoid
Injector 9
Output
PNP for EVAP control
75B
EGR Solenoid
Injector 10
Output
PNP for EGR control
76B
Neutral Starting switch
ATPNP (Gear)
Input
PNP for Neutral indicator
77B
Cranking signal input (12V)
---
---
Not Used
78B
Chassis Ground (98 only)
Power Ground
Both
Dedicated
79B
Chassis Ground
Power Ground
Both
Dedicated
80B
Chassis Ground
Power Ground
Both
Dedicated
