AEM 30-5132M Analog Boost Metric Gauge - Manual (Page 6)

Page 6
Voltage Pressure
0.50 30 inhg -1.0 BAR
0.75 24 inhg -0.8 BAR
1.00 17 inhg -0.6 BAR
1.25 11 inhg -0.4 BAR
1.50 5 inhg -0.2 BAR
1.67 0 PSI 0.0 BAR
1.75 1 PSI 0.1 BAR
2.00 4 PSI 0.3 BAR
2.25 7 PSI 0.5 BAR
2.50 10 PSI 0.7 BAR
2.75 13 PSI 0.9 BAR
3.00 16 PSI 1.1 BAR
3.25 19 PSI 1.3 BAR
3.50 23 PSI 1.5 BAR
3.75 26 PSI 1.8 BAR
4.00 29 PSI 2.0 BAR
4.25 32 PSI 2.2 BAR
4.50 35 PSI 2.4 BAR

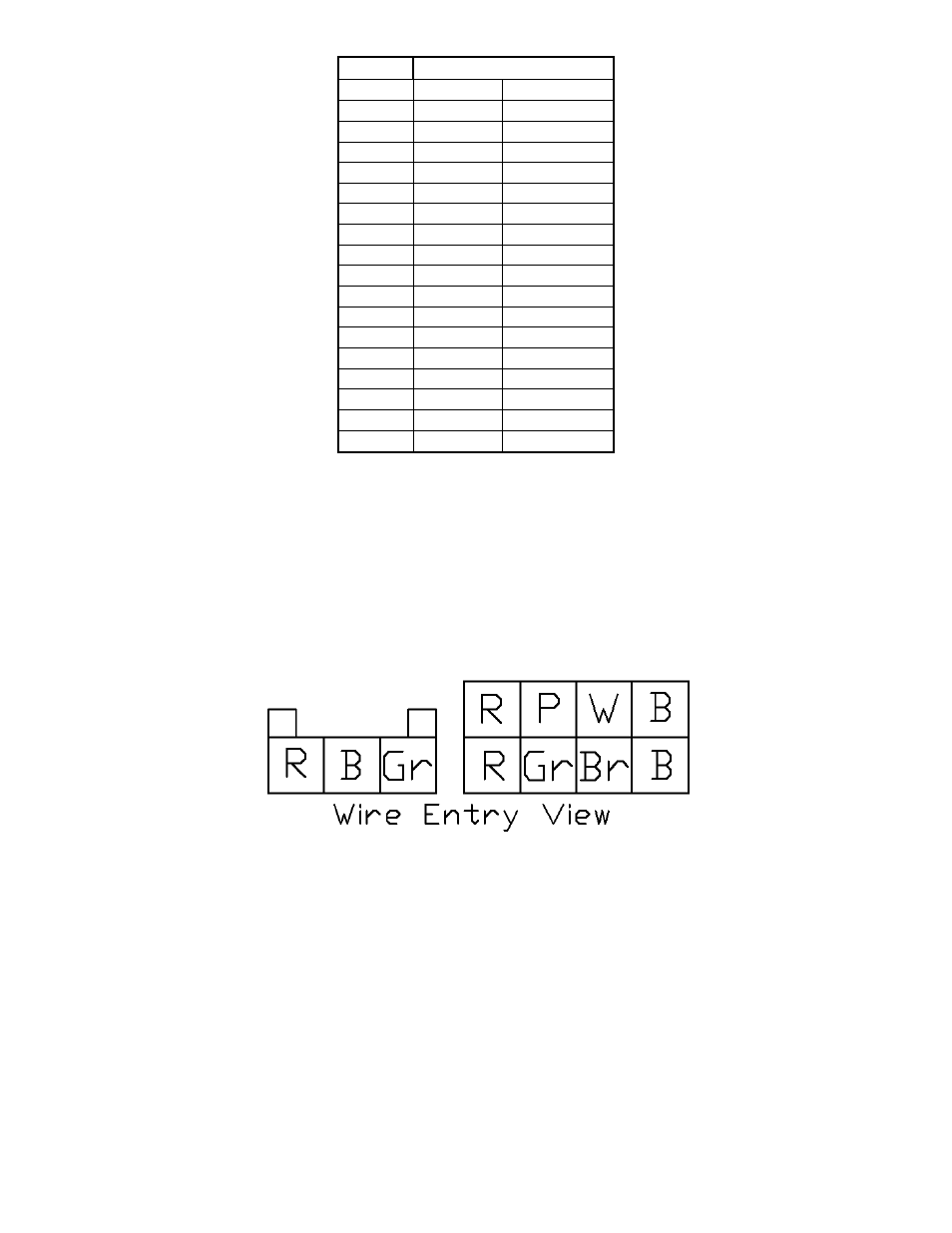

Connector Pinouts
The pinouts for the 3-pin sensor harness and 8-pin power harness are provided
below in Figure 6.
Figure 6. Harness Pinouts
Table 1. Analog Calibrations
