AEM 30-5132M Analog Boost Metric Gauge User Manual
Page 4
Page 4
Backlighting
The AEM Boost Gauge has 7 different backlight colors available to the end user, which
closely match some of the more common factory dash panels: white, blue, green, red,
orange, light blue, and aqua. To change the backlight color, rotate the backlighting
switch using a small precision style screwdriver. The backlight switch is accessed
through the small hole in the back of the gauge.
Status Lights
The AEM Boost gauge has two status lights, see Figure 4. The status light on the left
will flash if an out of range low voltage sensor error is detected. The status light on the
right will flash if an out of range high voltage sensor error is detected. In either case,
the needle will point straight downward to signify an error. See Table 1 for corrective
actions.

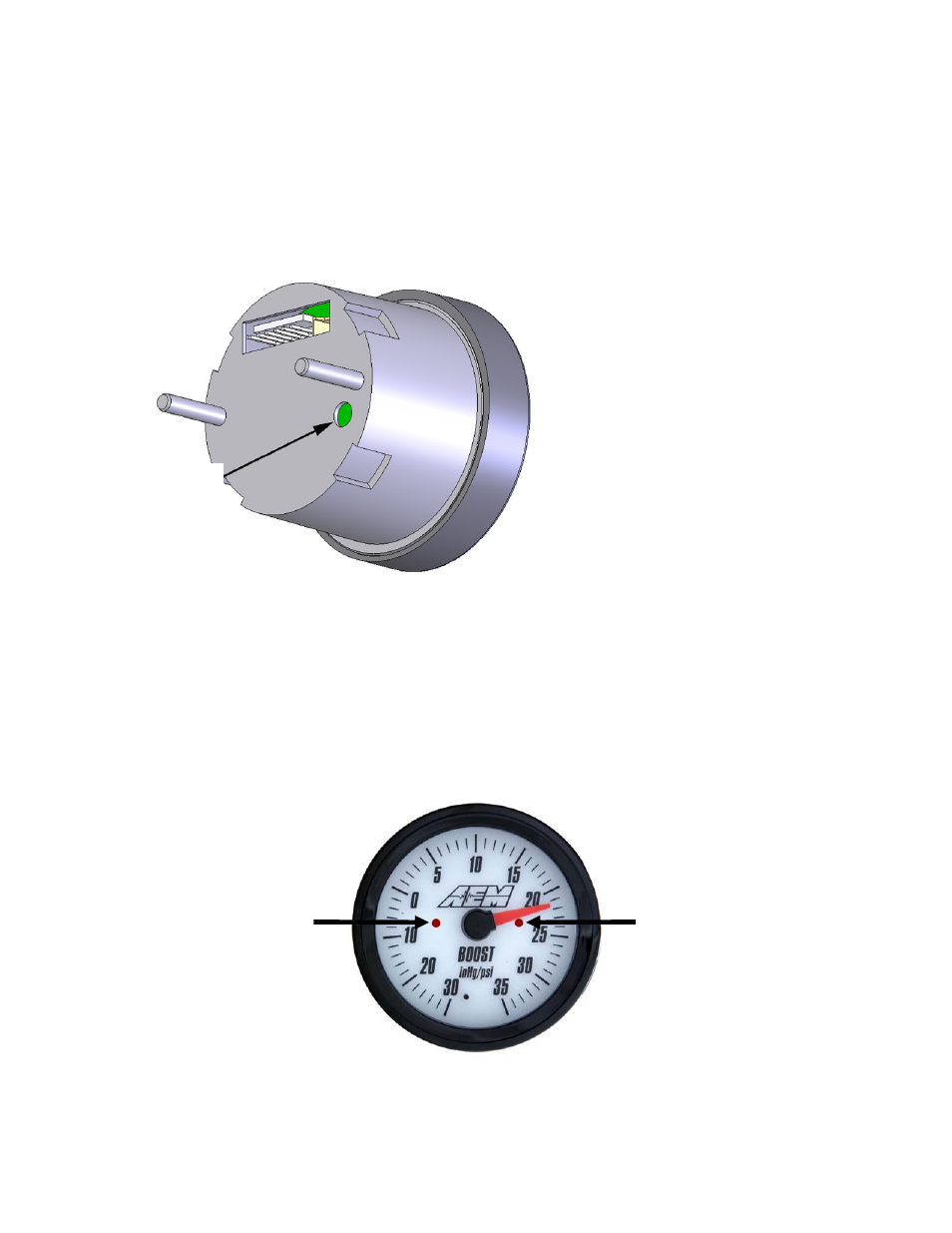

Figure 4. Backlighting Adjustment
Figure 4. Illuminated Status Lights
ACCESS
PORT
Left
Status
Light
Right
Status
Light
