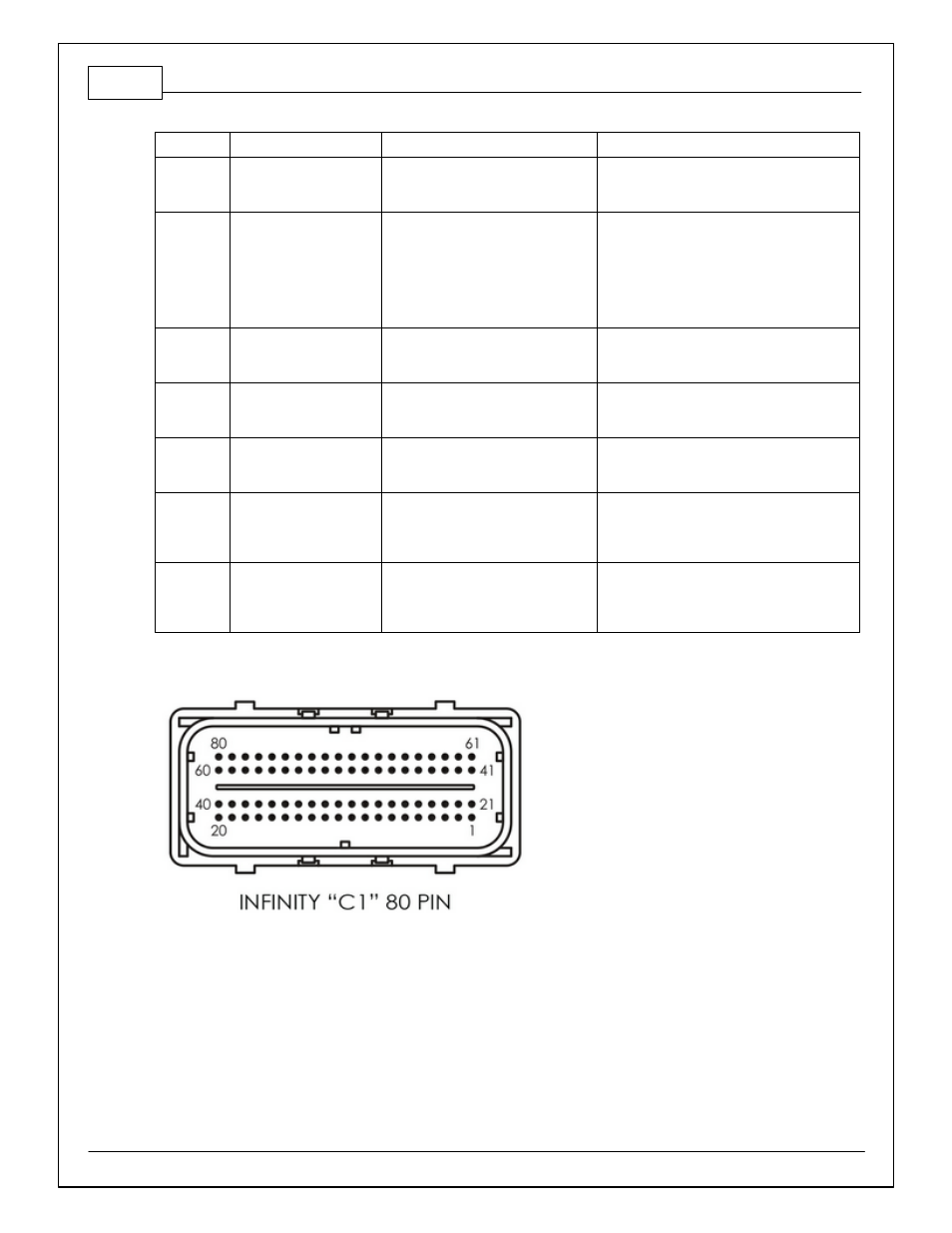

Infinity Pin Hardware Ref. Hardware Specification Notes
See the 1D lookup table 'ShiftSwitch' for
setup. Also assignable to multiple functions.
See Setup Wizard for details.
C1-75 Analog_In_10 12 bit A/D, 100K pullup to 5V 0-5V analog signal. Use +5V Out pins as power
supply and Sensor Ground pins as the low
reference. Do not connect signals referenced
to +12V as this can permanently damage the
ECU. See the Setup Wizard Barometric
Pressure page for setup and calibration.
Monitor the BaroPress [kPa] channel.
C1-76 Injector 3 Saturated (P/N 30-7108) or peak and
hold, 3A max continuous (P/N 30-
7106) Injector 3
C1-77 Injector 2 Saturated (P/N 30-7108) or peak and
hold, 3A max continuous (P/N 30-
7106) Injector 2
C1-78 Injector 1 Saturated (P/N 30-7108) or peak and
hold, 3A max continuous (P/N 30-
7106) Injector 1
C1-79 Stepper_2A Automotive, Programmable Stepper
Driver, up to 28V and ±1.4A Be sure that each internal coil of the stepper
motor are properly paired with the 1A/1B and
2A/2B ECU outputs. Supports Bi-Polar stepper
motors only.
C1-80 Stepper_1A Automotive, Programmable Stepper
Driver, up to 28V and ±1.4A Be sure that each internal coil of the stepper
motor are properly paired with the 1A/1B and
2A/2B ECU outputs. Supports Bi-Polar stepper
motors only.
