AEM 30-3438 Series 2 AEMnet Adapter User Manual
Page 5
Page 5

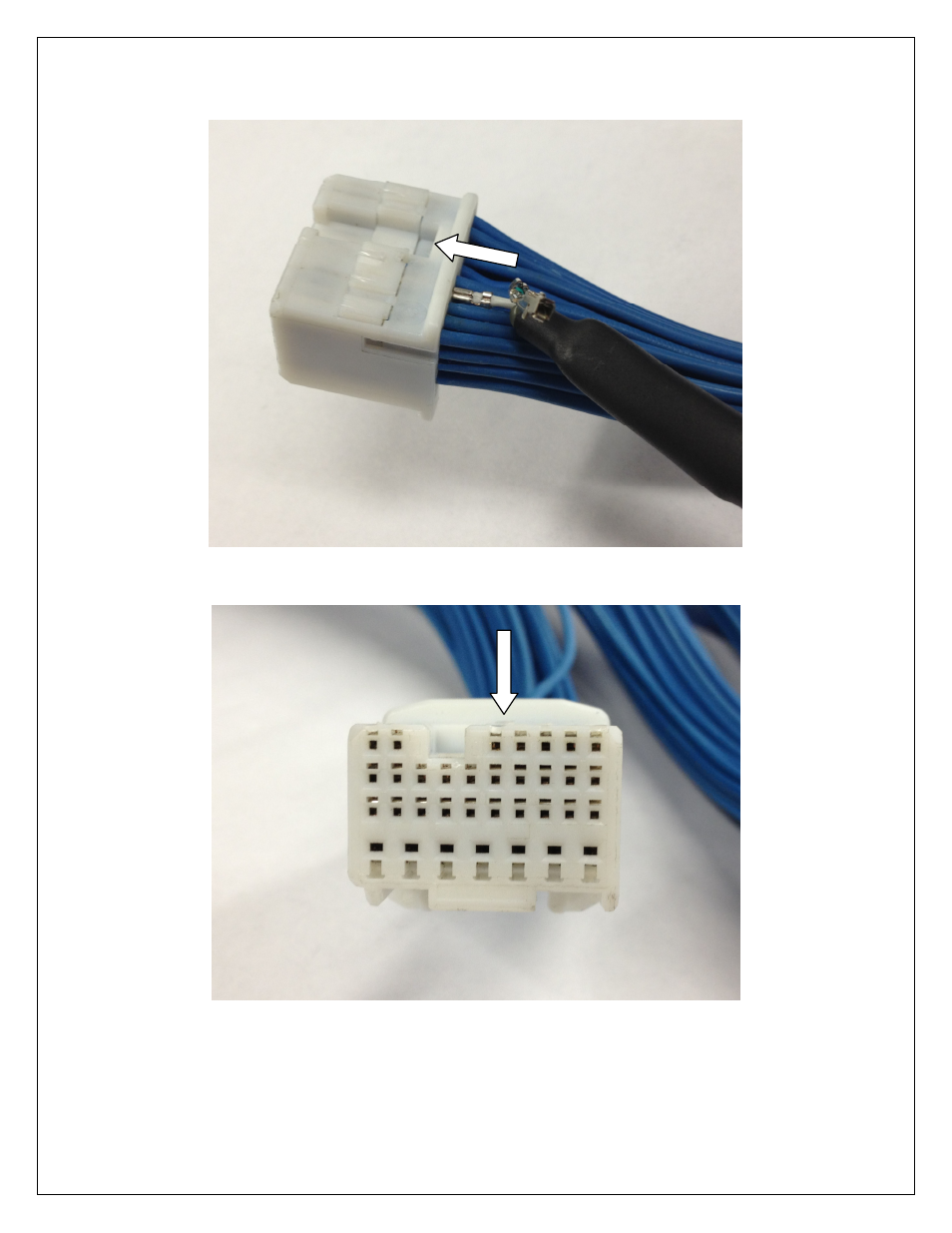

4. Make sure that the clip that holds the pin in the ECU connector is up so that it will clip
properly into the connector. To install the harness into the ECU plug, align the CANL and
CANH pins into the receptacle of the plug and push in until it clicks as shown in figure 6:
Figure 6: Pushing pin into ECU plug
5. Push the pin lock back into place until it is flush with the ECU plug as shown in figure 7:
Figure 7: Ensure pin lock is relocked
