AEM 30-3438 Series 2 AEMnet Adapter - Manual (Page 4)

Page 4
2. Next remove the pin from the plastic connector by inserting the removal tool (factory
recommended part available at Digikey, number 1276565-1 or alternatively you can use a
cheaper Molex depinning tool, part number 11-03-0043) to release the pin from the plastic
connector, then gently pulling on the wire at the same time as shown in figure 4.

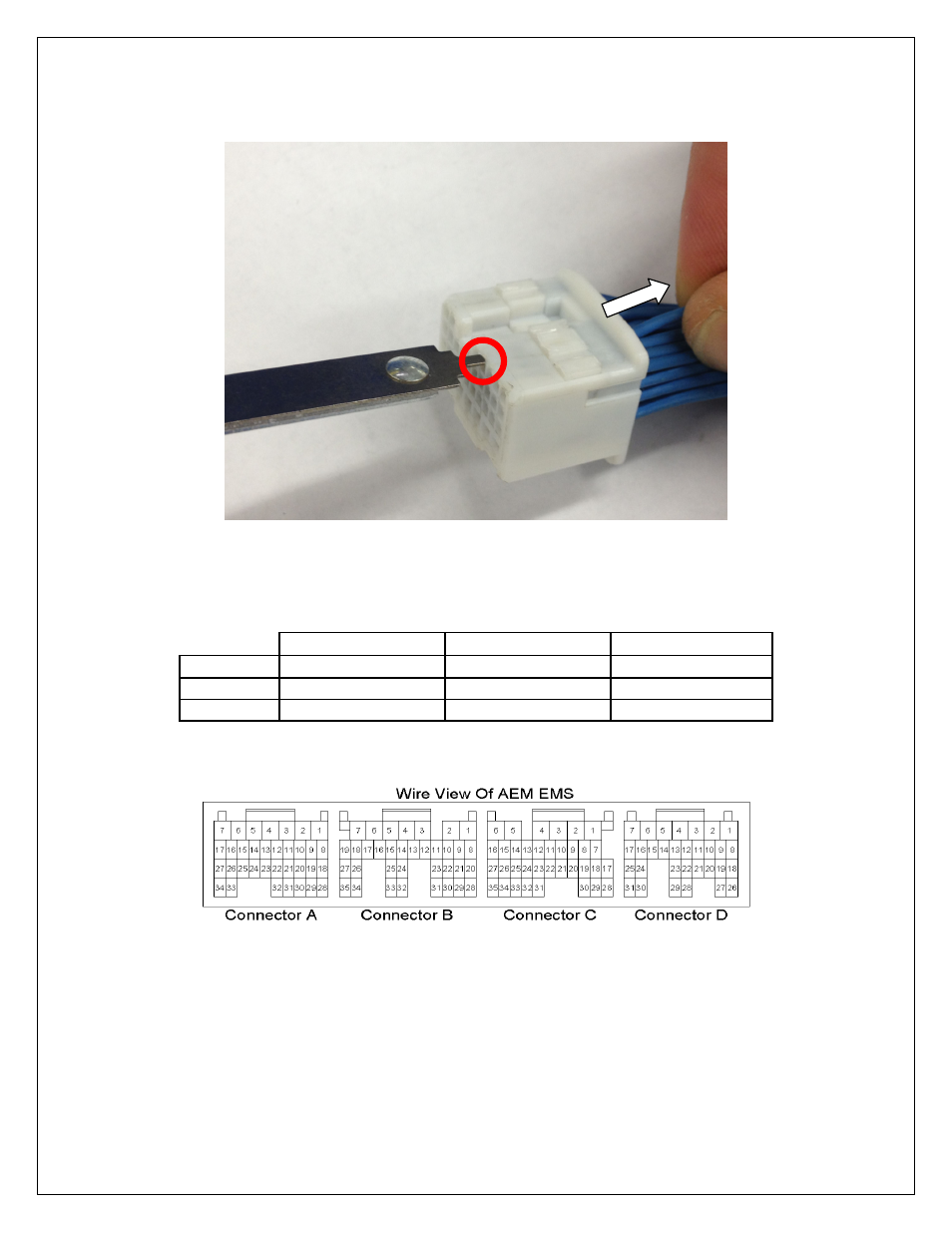

Figure 4: Insert removal tool (Molex tool shown) and pull on wire
INSTALL AEMnet ADAPTER HARNESS
3. Table 2 below lists the corresponding CAN1L and CAN1H pin locations for each Series 2
EMS.
CAN1L (Green wire) CAN1H (White wire)
EMS Adapter p/n LOCATION LOCATION
30-6820 30-3438 B29 B28
30-6821 30-3438 B29 B28
Table 2: CAN1L and CAN1H pin locations
Figure 5 below shows the connectors for the 6820 and 6821 Series 2 EMSs.
Figure 5: Wire-side view of pinout for 6820 and 6821 EMS
