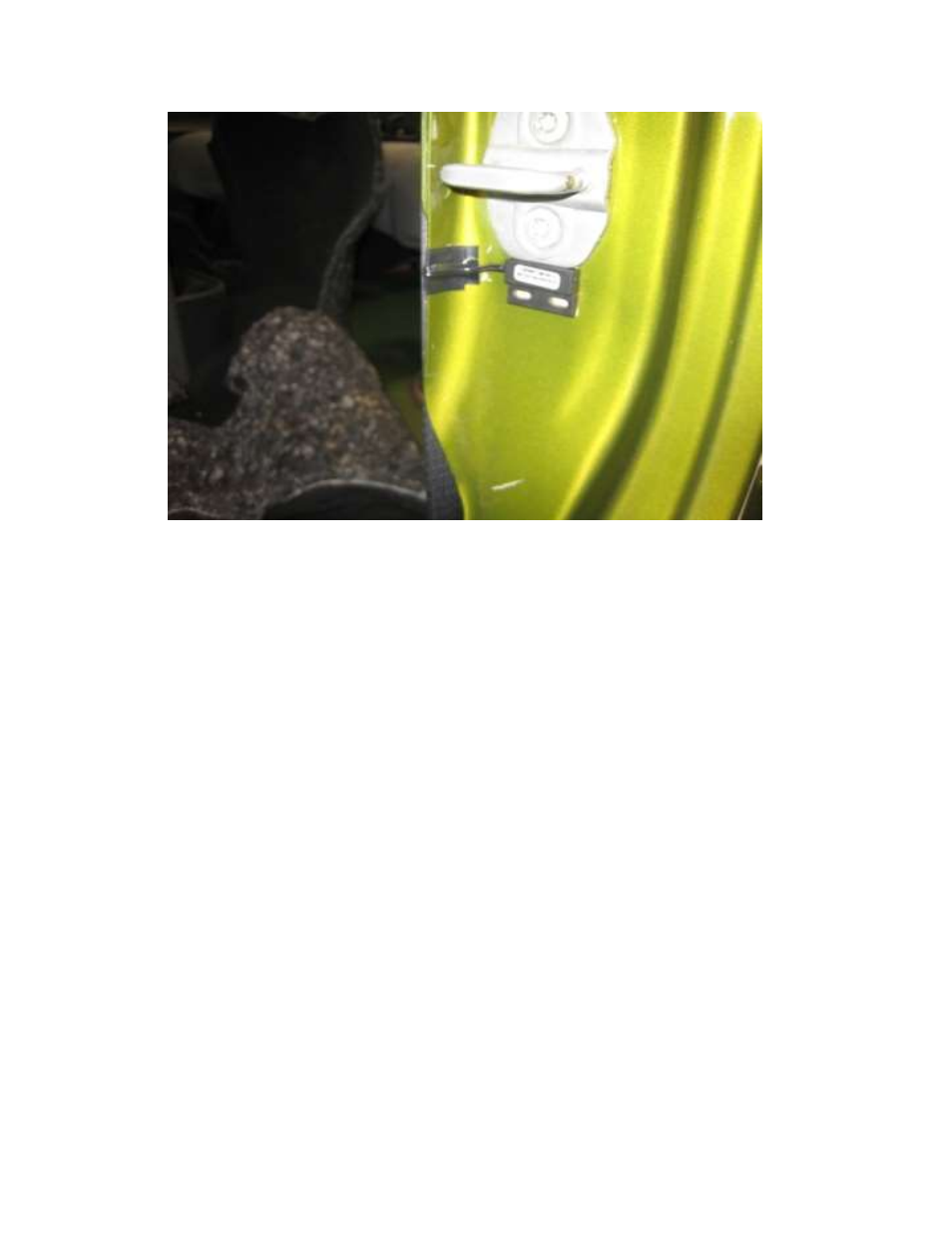

5. Divide the harness between the driver and passenger side. Mount the sensors on the driver and
passenger side just underneath the door latch on the inside door frames using the sticky pads
provided. Route the wires around the body seam by placing a small piece of electrical tape on the
body seam. Wrap the wire over the top of the tape towards the inside of the cab then secure the
wire with another piece of electrical tape. (shown above)
6. Drill a hole through the floorboard for the actuator and LED wires from the slider assembly. Route
the wires inside the cab through the hole. Use the floor drain hole if possible.
7. Plug the connectors into the harness. Make sure there is NO interference with the seat belt
system. Secure all wires!
8. Route the system disable switch, POS+ and NEG- wires up the driver side to the “A’ pillar on the
front diver side dash panel.
9. Remove the side dash panel. Drill a hole in the dash to accommodate the switch. Run the three
wires for the disable switch through the dash and plug into the back of the switch. Mount the
ground wire from the plug to a metal surface for the switch illumination.
