Installation Instruction RSEI 123

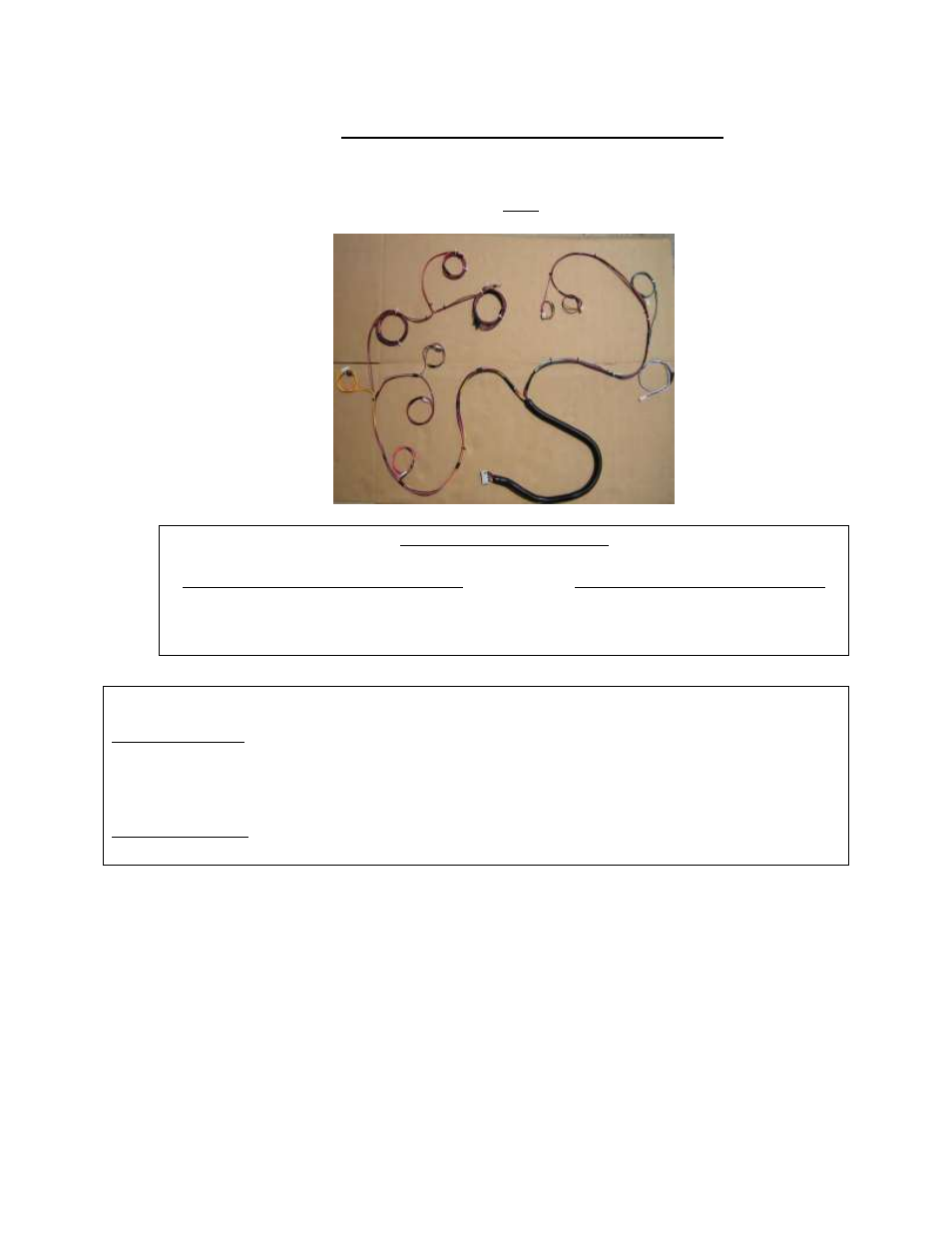

WIRING HARNESS INSTALLATION

**Note: The same harness is used for the JK 4-door version **

The additional door sensors are NOT used for the 2-door version

Step Slider Wiring Diagram

Driver Side

Wire Color

Passenger Side

Wire Color

Front Door Sensor

Orange/Yellow

Front Door Sensor

Green/Gray

Driver LED Light

Brown/Tan

Passenger LED Light Pink/Tan

Driver Actuator

Red/Black

Passenger Actuator Red/Black

**WARNING**

REMOVE FUSE FROM WIRING HARNESS PRIOR TO INSTALLATION! CONNECTING
THE HARNESS TO THE POWER SOURCE WITH THE FUSE ATTACHED WILL SHORT
OUT THE WIRING HARNESS

NEVER ALLOW THE DOOR SENSOR TO COME INTO DIRECT CONTACT WITH THE
ACTUATING MAGNET. THIS WILL DESTROY THE SENSOR MAKING IT UNUSABLE

1.

Roll the rear carpet back underneath the rear seat.

2.

The supplied harness is the same for all Jeep applications (Note: You will have some plug connectors
that will not be used). It is important that you secure harness so it is neatly out of the way to avoid
and damage to the wires.

3.

Lay the harness into position

4.

Start with the electronic box, plug it into the harness and mount it under the seat on the passenger
side.
