9
PureFlow AirDog
AirDog® 100 & 150 Dodge Cummins 1989 - 1993
Section 5-A Fuel to Engine
Installing the Fuel Supply Line from the AirDog
®
to the Injector
Pump!
When installing the AirDog
®
fuel system, for optimum engine performance it is
recommended to bypass the factory filter canister.
5A-1. Remove the original factory fuel supply line at the fuel inlet port on the injector pump.

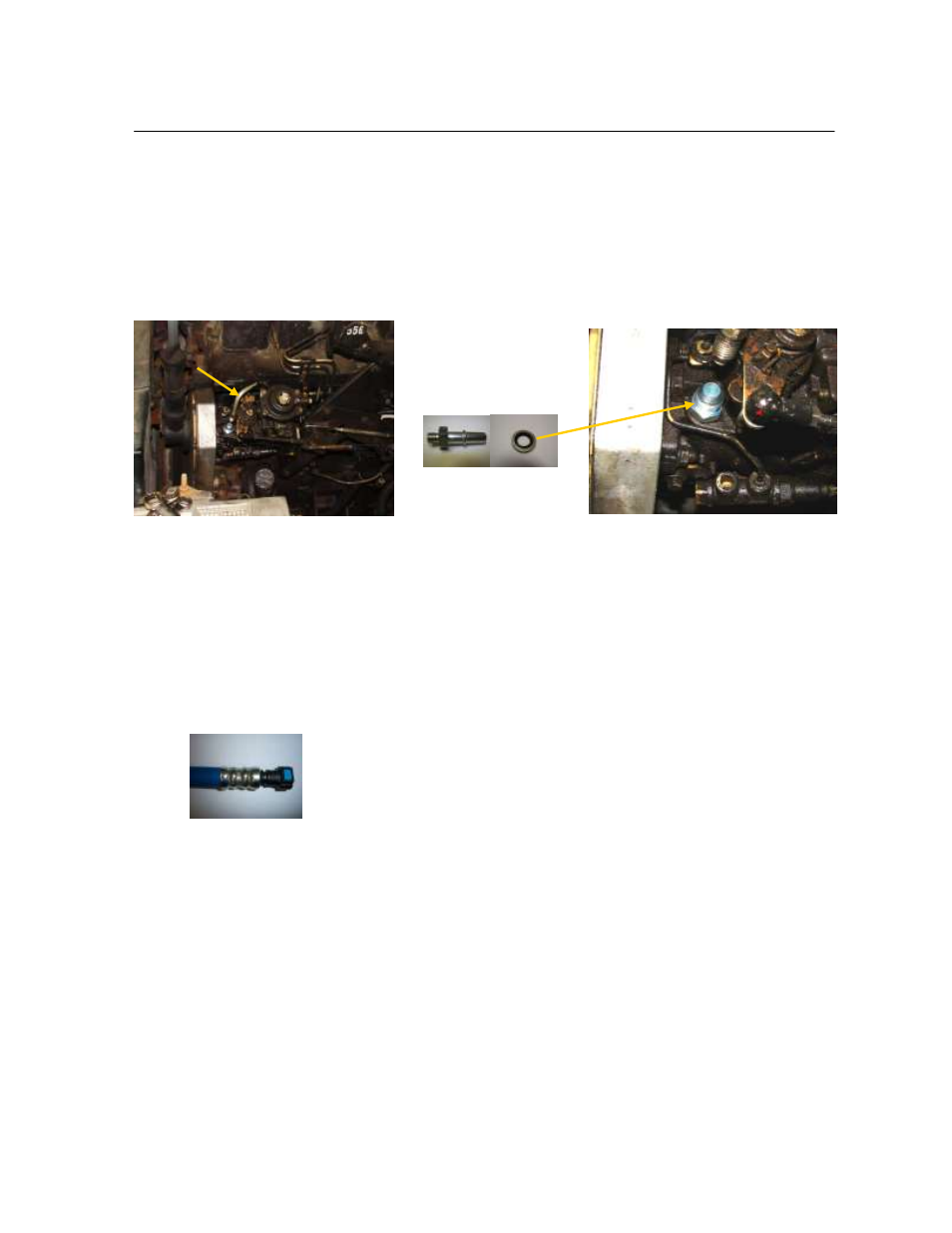

Figure 12 Figure 13
5A-2. Install the 12mm x ½” male SAE J2044 (WAP 102) fitting with the seal washer
supplied into the inlet port of the injector pump (Ref. Figure 13) vacated by the
original fitting. Do not over tighten the fitting. It may crack or break.
5A-3 Insert the female quick connect end (see figure 14) of the “pressure hose assembly”
into the male quick connect fitting previously installed in the port marked “ENGINE”.
You will hear a “click” when it connects.
Figure 14
5A-4. Connect the other end of the “pressure hose assembly” to the inlet fitting installed in
step 5A-2. It will “click” when properly connected.
5A-5 Any excess fuel hose can be addressed by routing the hose in a fashion to take up the
extra length, or a section of the hose can be removed. Push lock splices have been
included if you choose to remove the excess hose.
