FP-100 & FP-150 Dodge Cummins 1989 - 1993
Section 5-E High Flow Suction

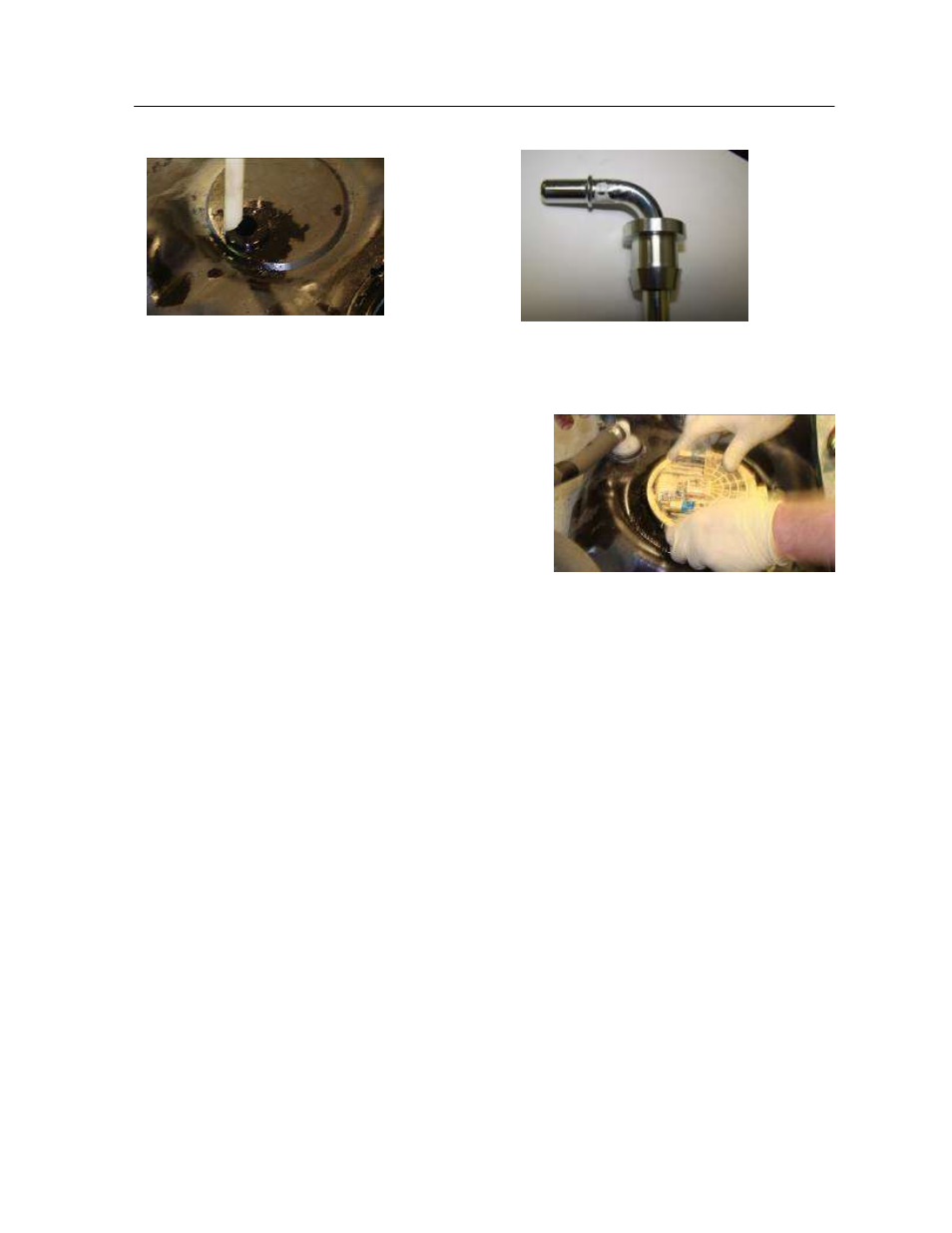

Figure 46 Figure 47
5E-7. Re-install the Collection basket.
Re-install the factory return line to the proper
port of the Collection basket before the tank is
re-installed.
Figure 48
5E-8. Connect the end of the “Suction Hose Assembly” to the bulk head fitting while it is
easily accessible. A “click” will be heard when it is properly installed.
5E-9 Any excess fuel hose can be addressed by routing the hose in a fashion to take up
the extra length, or a section of the hose can be removed. Push lock splices have
been included if you choose to remove the excess hose
5E-10. If the fuel tank was dropped to install the suction tube, re-install the fuel tank.
If the truck bed was removed, reinstall the bed.
