16
PureFlow AirDog
AirDog
®
FP-100 & FP-150 Dodge 1989-1993
Section 5-E High Flow Suction

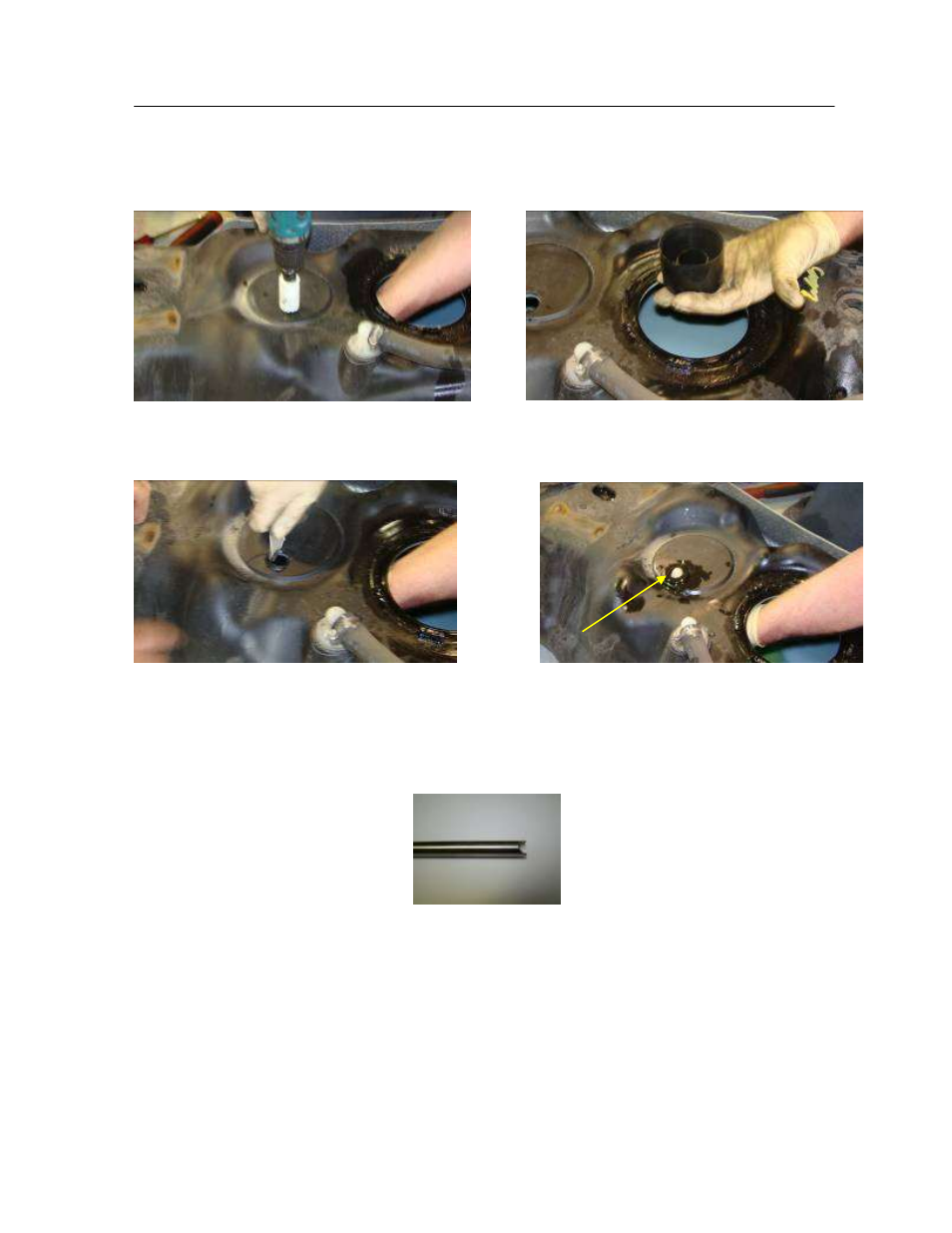

5E-2. Drill a 1-1/8” hole at the selected location in the fuel tank for the suction tube. Hold
a container below the drill point to catch debris.
Figure 41 Figure 42
5E-3. Remove all burrs from the edge of the hole.
Figure 43 Figure 44
5E-4. Install the grommet in the new suction tube access hole.
5E-5. Measure and cut the suction tube to a length that will allow approximately 1/8”
clearance off the bottom of the tank. It is suggested to form the end of the tube similar
to Figure 45.
Figure 45
5E-6. Lubricate the bulkhead fitting with motor oil. Pressing firmly, insert the suction tube
assembly into the grommet. Be sure the bulkhead fitting is completely seated in the
grommet.
