15
PureFlow AirDog
AirDog
®
FP-100 & FP-150 Dodge 1989-1993

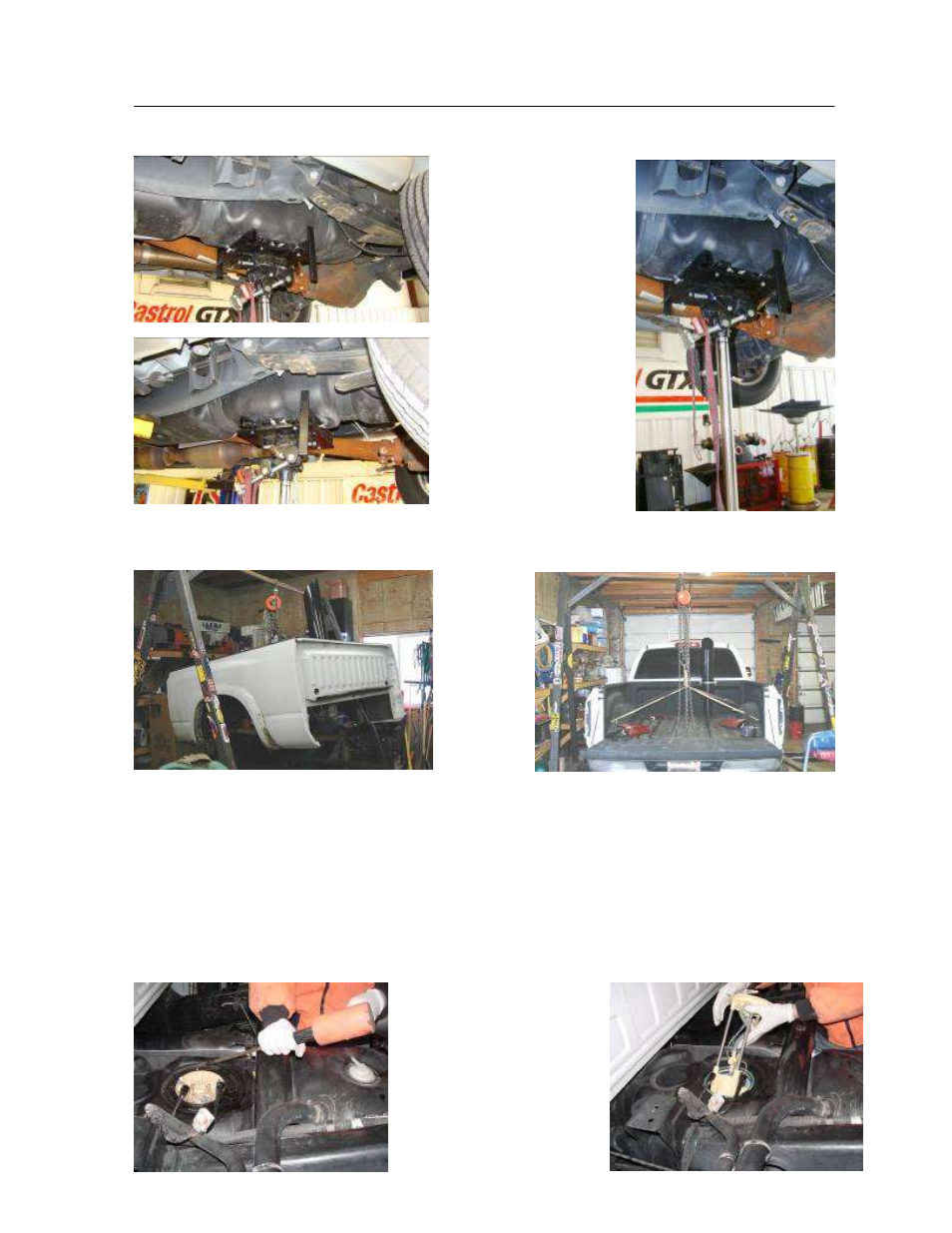

Section 5-E High Flow Suction Tube
Figure 36
Figure 37
Figure 38
If you choose to remove the bed, properly support the truck bed to prevent
serious injury or death!
Figure 32 Figure 33
NOTE: The fuel tank used for the pictures is an example only and may not be exactly the
same as your tank.
IMPORTANT: Select a location for the suction tube that has adequate clearance
below the bed. Also consider that under hard acceleration, fuel will migrate
toward the back of the fuel tank.
5E-1. Remove the collection basket.
Figure 39
Figure 40
