13
PureFlow AirDog
AirDog® 100 & 150 Dodge Cummins 1989 - 1993
Section 5-D Fuel Lines
Fuel Suction Line for AirDog
®
FP-100!
NOTE: The AirDog
®
FP-150 requires a High Flow Suction Tube. If you are installing an
AirDog
®
FP-150 skip Section 5D and go to section 5E for these installation instructions!
Connecting the Fuel Supply Line from the Tank to AirDog
®
FP-100

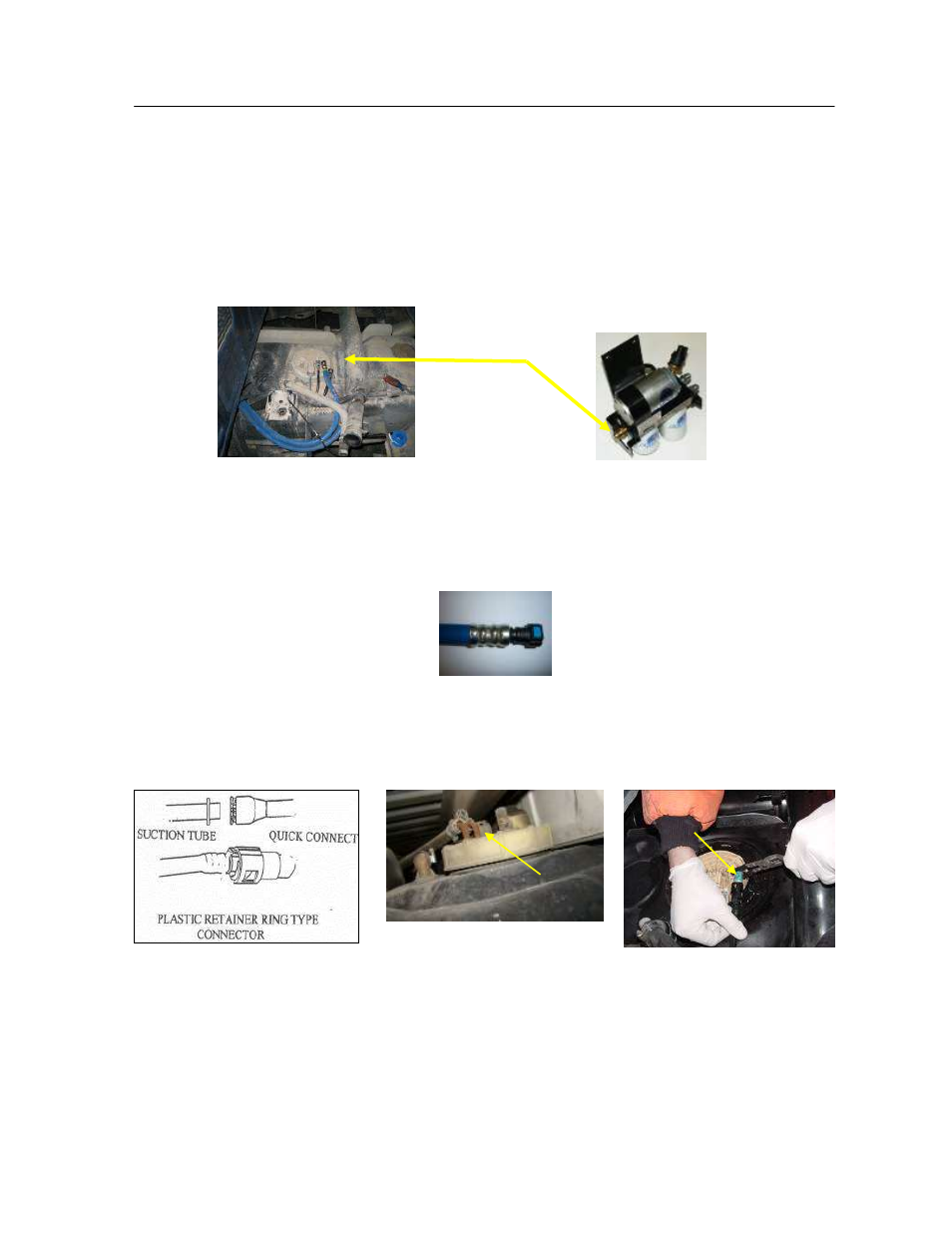

Figure 29 Figure 30
5D-1. Insert the female quick connect end (see figure 31) of the “Suction Hose Assembly” to
the male quick connect fitting in the “Fuel In” port during step 4-3 of this manual. A
“click” will be heard when the fitting is properly connected.
Figure 31
5D-2. Remove the original fuel suction line Quick Connect fitting from fuel tank by
squeezing the tabs on the end of the connector together. Consult factory manual if
unsure.
Suction Tube
Quick Connect Fitting
View From Beneath Bed
Figure 32 Figure 33 Figure 34
In More Detail
To release the quick-connect fitting from the fuel tank suction tube, push the fitting
toward the suction tube while firmly holding the plastic retainer ring into the fitting.
With the plastic ring firmly depressed, pull the fitting assembly from the suction tube.
Use care to hold the retainer ring square to the Quick Connect Fitting body. It may be
difficult to disconnect the fitting if the retainer is cocked or becomes cocked during-
Fuel Return Tube
