PureFlow AirDog FP-150 - Dodge Cummins 1989-1993 - Manual (Page 8)

8
PureFlow AirDog
AirDog® 100 & 150 Dodge Cummins 1989 - 1993
Section 4 AirDog ® & Mounting Brackets
Installing the AirDog
®
& Mounting Brackets to the
Truck’s Frame.

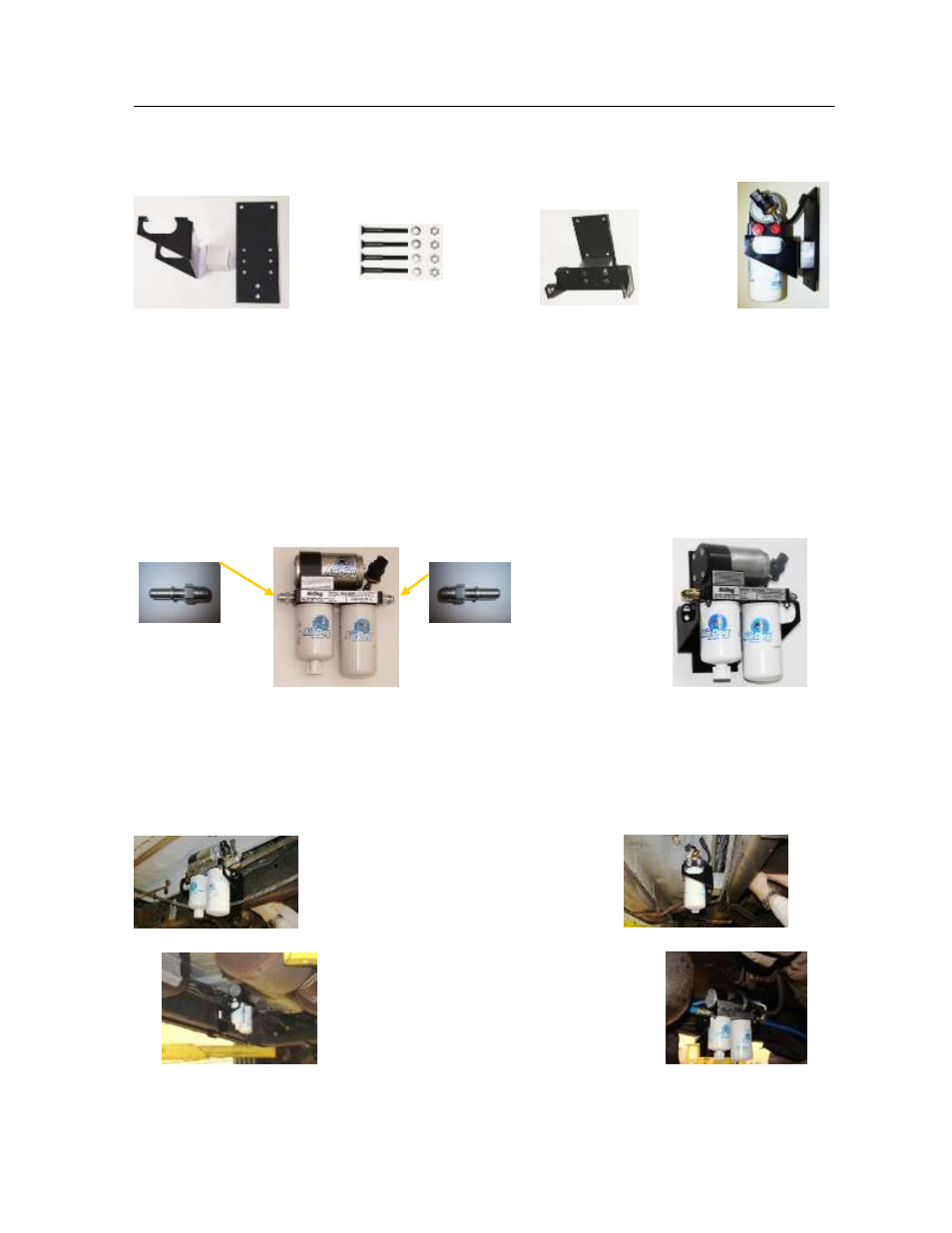

Figure 2 Figure 3 Figure 4 Figure 5
4-1. Assemble the AirDog® mounting bracket to the frame bracket, use the spacer block to
clear lines and wiring harnesses on the frame. Adjust the assembly up or down on the
frame bracket as necessary for clearance.
4-2. Install a 1/2” J2004 QC x 3/8” NPTF male fitting in the ‘FUEL IN’ and the out to
‘ENGINE’ ports in the AirDog®.
WARNING: The NPT fitting threads must be lubricated with oil or anti-seize compound
before installation to prevent galling!
FUEL IN ENGINE
Figure 6 Figure 7
4-3. Mount the AirDog® to the frame bracket assembly using supplied hardware.(Figure 7)
NOTE: Be sure to direct the ‘fuel in’ port to the rear.
4-4. Clamp the frame between the AirDog® bracket assembly and the backing plate using
the 3/8” x 3 ½” bolts, lock washers, and nuts included in the kit.
Mount
The AirDog®
Outside
The
Figure 8 frame Figure 9
OR
Inside
The
Frame
Figure 10 Figure 11
4-5. Position the AirDog® on the frame as necessary for clearance. Properly torque the
bolts & nuts!
