PureFlow AirDog
AirDog® 100 & 150 Dodge Cummins 1989 - 1993
Section 5-C AirDog® Fuel Return To Tank

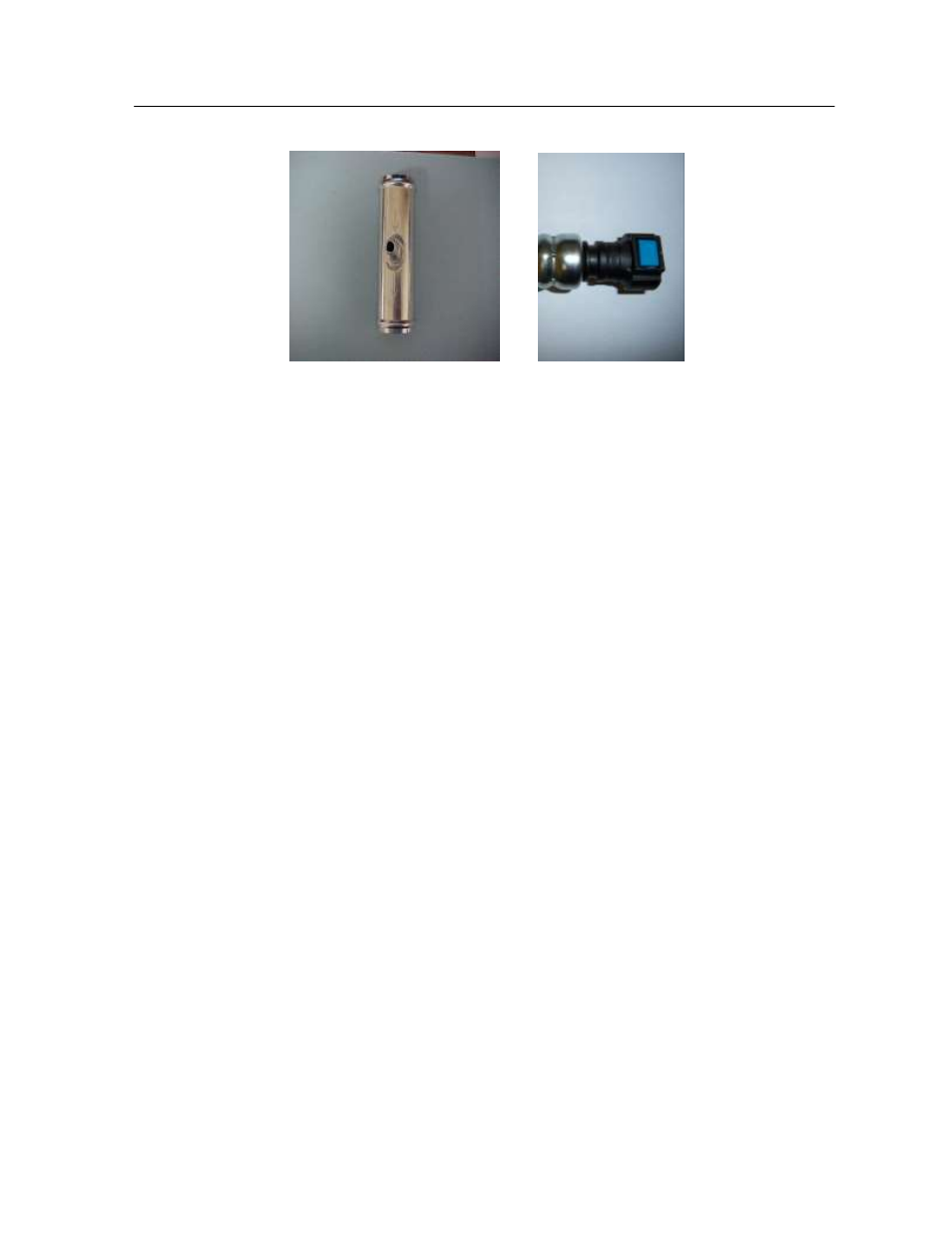

Figure 27 Figure 28
5C-2. Insert “Return Fuel Filler Tube” assembly in filler tube. INSTALL THE FILLER
TUBE WITH ARROWS POINTING TOWARD THE TANK!! SEE FIG 27
Properly tighten clamps.
5C-3. Insert the SAE J2044 female quick connect end (see Figure 28) of the “Return Hose
Assembly” into the pre-installed male quick connect fitting in the port marked “Tank”.
The fitting will “click” when properly installed.
5C-4 Attach the other end of the “Return Hose Assembly” onto the male end form of the
“Return Fuel Filler Tube” installed in step 5C-2. A ”click” will be heard when the
fitting is properly connected.
5C-5 Any excess fuel hose can be addressed by routing the hose in a fashion to take up
the extra length, or a section of the hose can be removed. Push lock splices have
been included if you choose to remove the excess hose.
