Page 74
72
Model 8042
Rev. 11/03
Operation

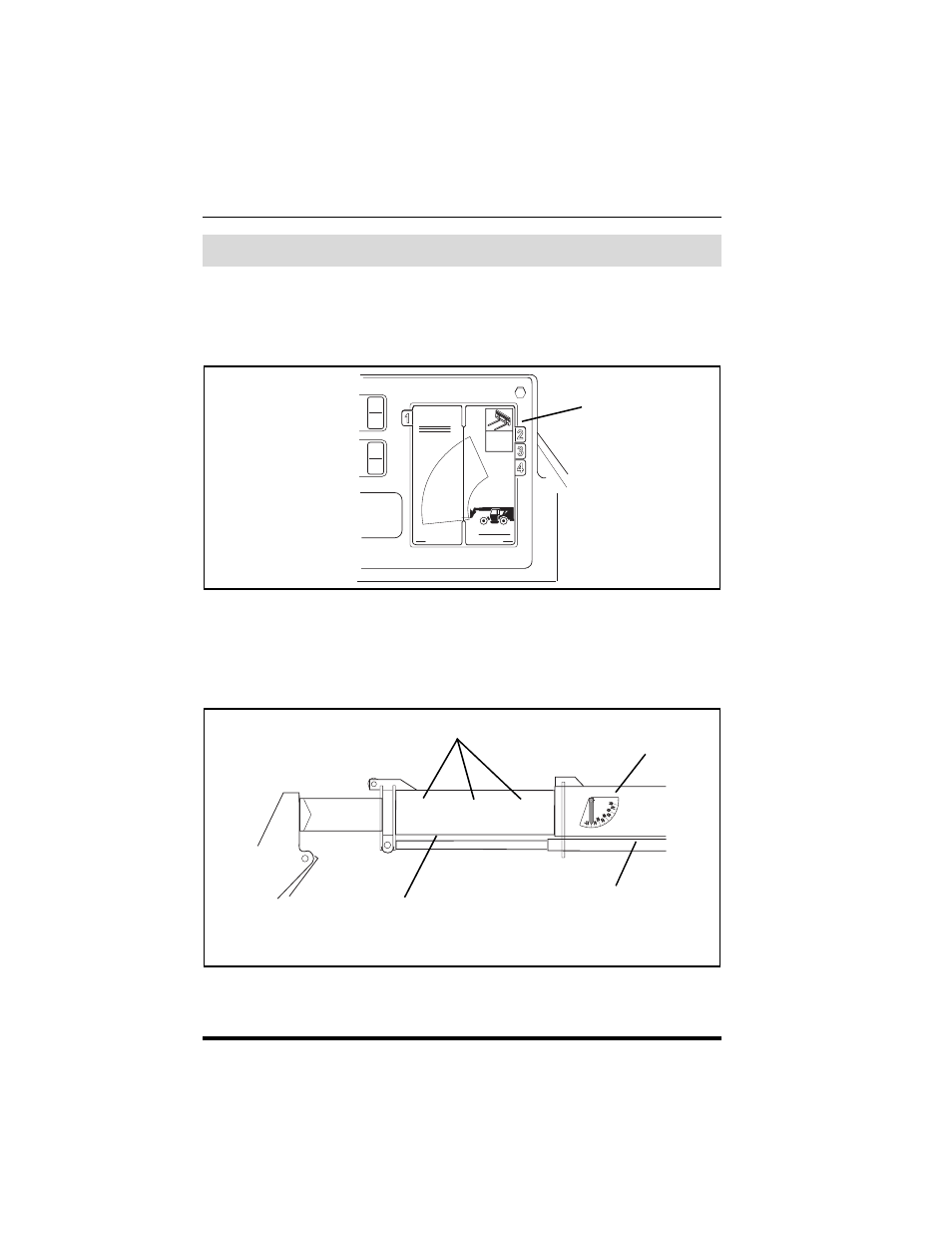

The individual capacity charts are located inside a booklet (1) on the right
side of the front dash. Capacity charts are provided to assist the operator in
determining how far in front, how high and at what angle a specific load can
be safely handled with this vehicle.
The vehicle is equipped with two indicators that will assist the operator in
determining how to accurately use the capacity chart. These indicators are:
• Boom Extend Letters (2)
• Boom Angle Indicator (3)
Using The Capacity Chart
8042
OH2920
1
A
B
C
A
B
C
OH1960
3
2
4
5
