General Maintenance
149 Model 8042 Rev. 11/03

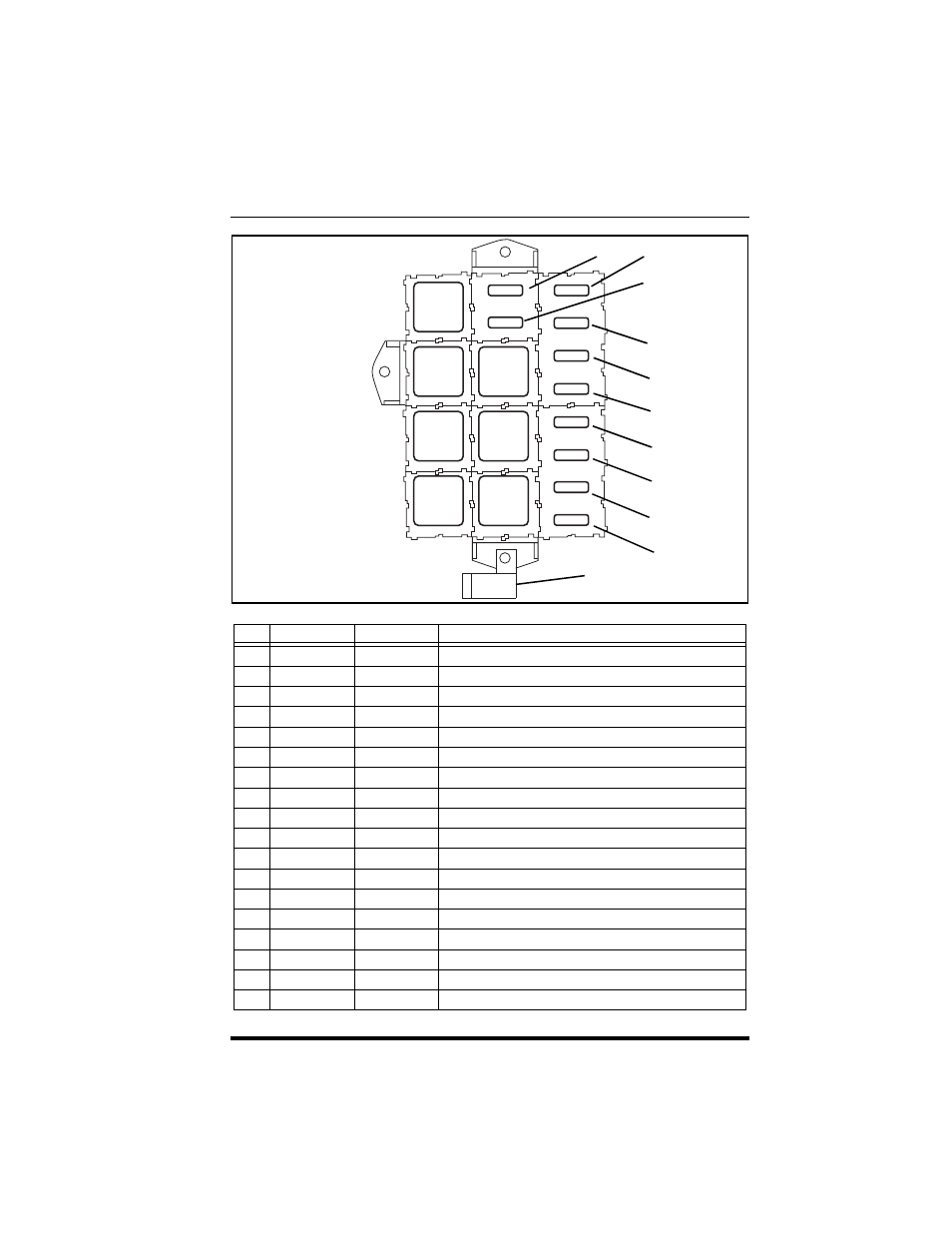

No. Amp/Volt Color Circuit Protected
3 40 Amp Orange Main
4 7.5 Amp Brown Light Switch Relay
5 10 Amp Red Instrument Cluster
6 15 Amp Blue Horn/Heater
7 10 Amp Red Steer Select Switch
8 10 Amp Red Stabil-TRAK System
9 10 Amp Red Optional Washer/Wiper
10 20 Amp Yellow Optional Lights
11 7.5 Amp Brown Transmission
12 7.5 Amp Brown ECM Indicator Light
13 40 Amp Orange Optional Road/Work Lights
14 12 Volt – Park Brake Disengage Relay
15 12 Volt – Neutral Start Relay
16 12 Volt – Backup Relay
17 12 Volt – Boom Switch Relay
18 12 Volt – Stabil-TRAK Lock Relay
19 12 Volt – Light Switch Relay
20 12 Volt – Optional Headlight Switch Relay
20 10
10
10
15
10
7.5
40
40
7.5 7.5
OH2992
3
4
5
6
7
8
9
10
11
14
20
15
16
19
18
17
13
12
