8

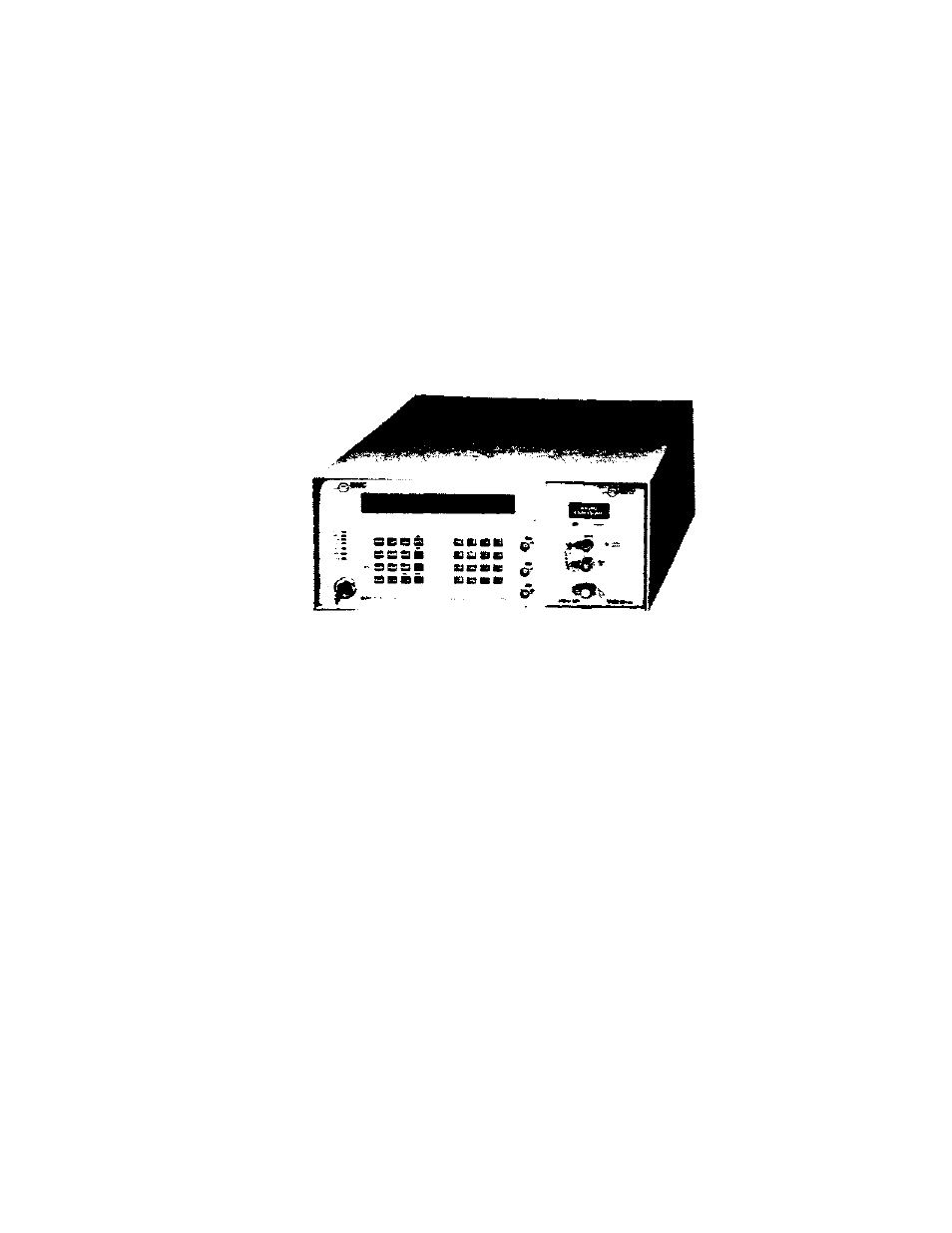

UNIVERSAL PULSE GENERATOR
MODEL 6040
The Model 6040 System consists of a crystal-controlled programmable pulse/digital delay generator
mainframe and a family of optional plug-in modules. The 6040 itself generates TTL and ECL outputs at
rates to 100 MHz with 1 ns or less rise times and a 1 nanosecond resolution for pulse width, delay and
double pulse timing.
The interchangeable modules provide the instrument with additional capabilities such as faster
transition times, higher pulse amplitudes, and generating optical pulses.
