VEHICLE PREPARATION

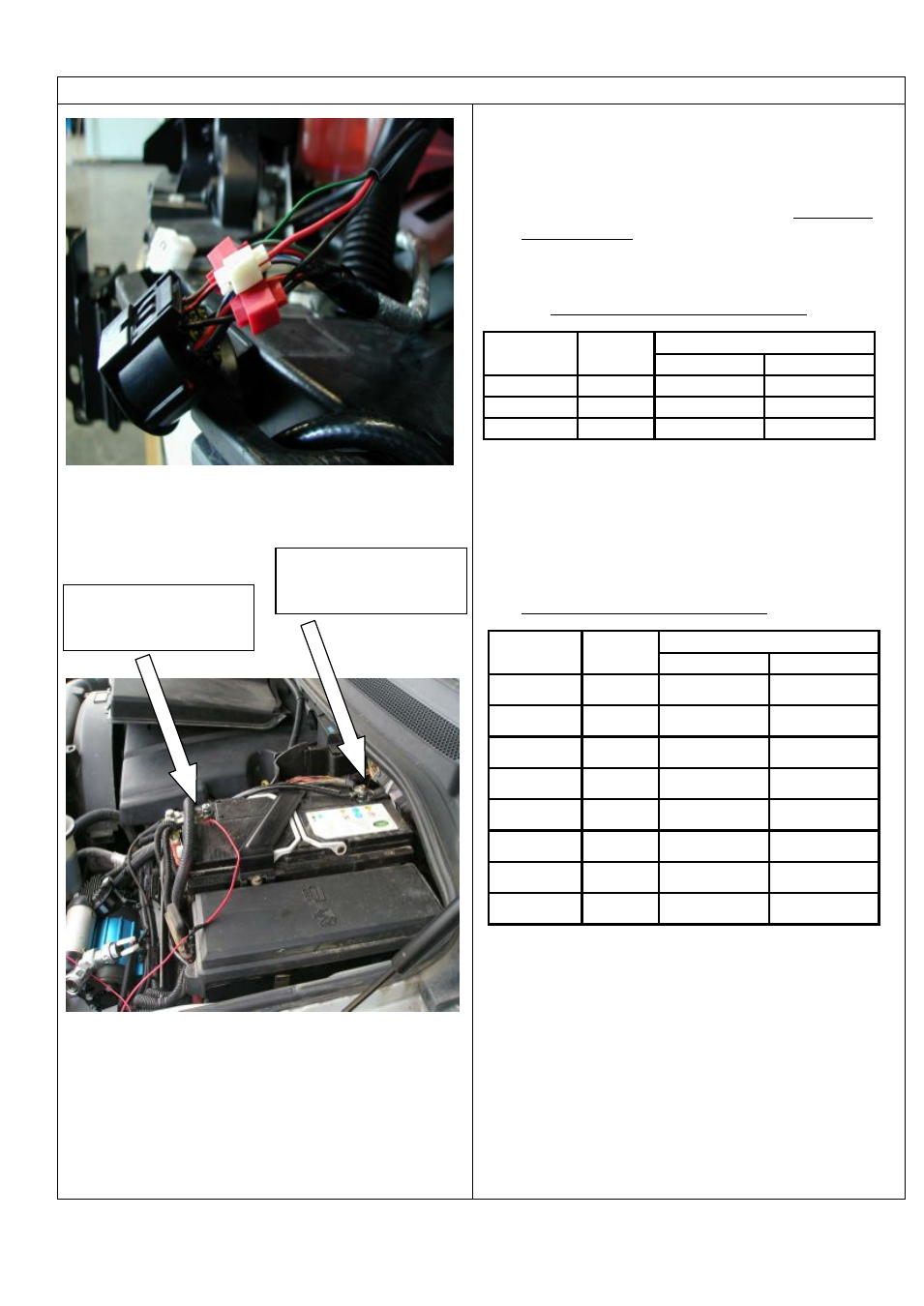

10. Find the clearance , indicator and earth
wires for each headlight using a test lamp.
Removal of the headlamp will make this
easier . Wire the park lamp wire ONLY AT
THIS STAGE from the short indicator looms
into the head light looms using the scotch
locks provided .
WIRING TABLE FOR SHORT LOOM
FUNCTION
INDICATOR
HARNESS
VEHICLE COMBINATION LAMP
RIGHT
LEFT
INDICATOR
GREEN
GREEN / WHITE
GREEN / RED
EARTH
BLACK
BLACK
BLACK
PARK LAMP
RED
RED / ORANGE
RED / BLACK
11. The remaining wires from the short loom
( tabled above ) will now in conjunction with
the longer loom - will be both wired into the
vehicles headlamp loom . The table below
lists the colour & function of the longer relay
loom .
WIRING TABLE FOR LONG LOOM
FUNCTION
RELAY
HARNESS
SHORT INDICATOR HARNESS
RIGHT
LEFT
BATTERY
POSITIVE
RED
-------
------
BATTERY
EARTH
BLACK
-------
------
VEHICLE RH
INDICATOR
GREEN /
BLACK
------
------
BULL BAR
INDICATOR
GREEN
GREEN
GREEN
BULL BAR
INDICATOR
BLACK
BLACK
BLACK
VEHICLE LH
INDICATOR
YELLOW /
BLACK
------
------
BULL BAR
INDICATOR
YELLOW
GREEN
GREEN
BULL BAR
INDICATOR
BLACK
BLACK
BLACK
12. The two wires for each common function
from both looms can now be combined and
scotch locked to the appropriate wire in the
vehicles head lamp loom . Replace the
headlamps back into the vehicle if removed
.
13. Wire the positive wire to the battery and the
earth wire to the negative as shown .
BLACK WIRE TO
BATTERY NEGATIVE
TERMINAL
RED WIRE TO
BATTERY POSITIVE
TERMINAL
