ARB 3232200 User Manual
Page 21
02-08-12
Page 21 of 23
3787827

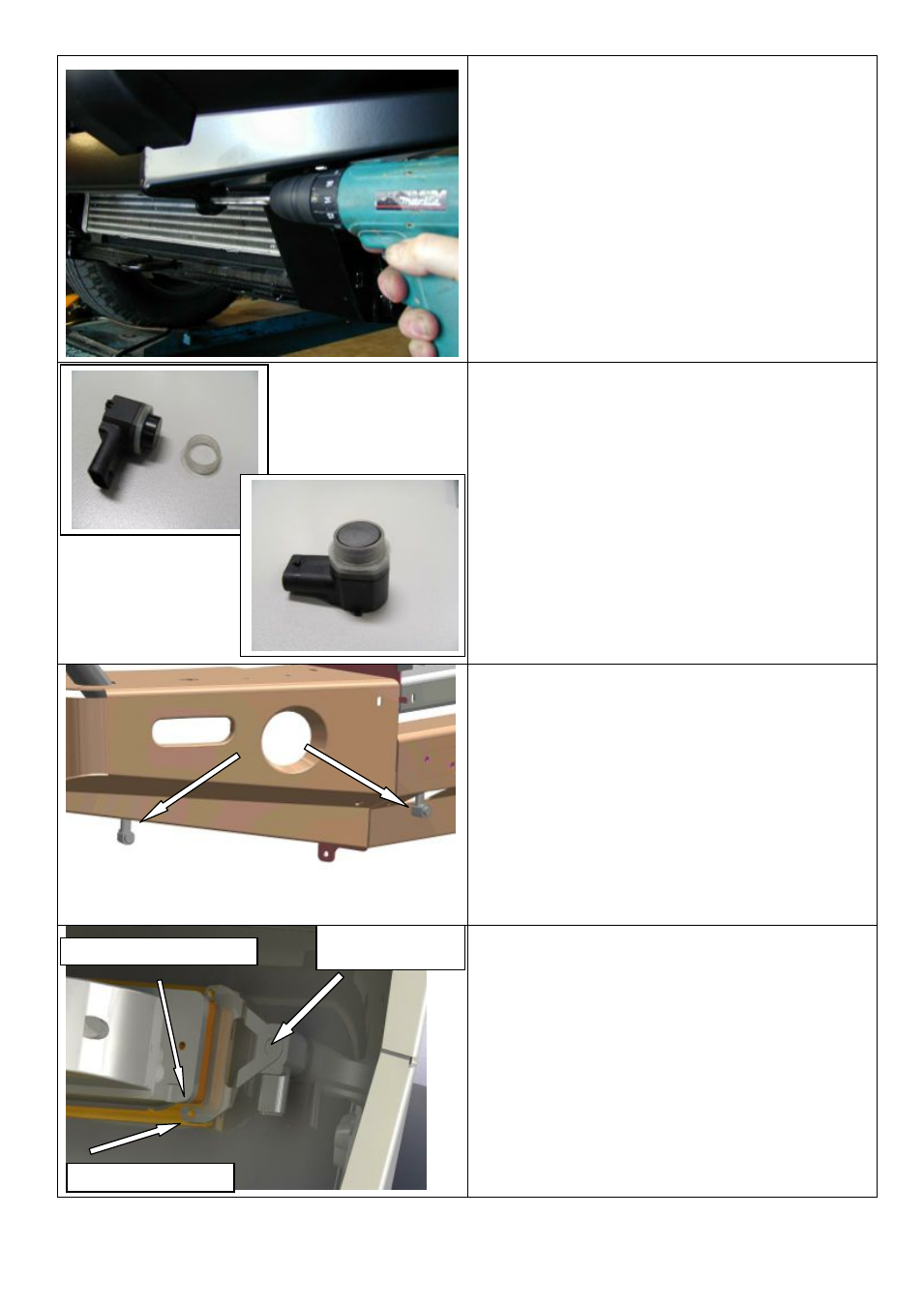

68. Using a 10mm drill bit; drill the pinning
bolt hole using the hole in the upright as
a guide.
69. Fix in place using a M10 x 35mm bolt,
M10 flat washer, M10 spring washer and
M10 flange nut. Repeat for the other
side.
70. Connect the indicators to the indicator
loom. Re-connect the fog light loom,
headlight washer hose and the ambient
temperature sensor.
71. Fit original rubber grommets to sensors
as shown.
72. Plug sensors into loom. Hang down from
vehicle as shown facing forward. Test
vehicle parking system is operating
correctly.
73. Start from right to left fit and test one
sensor at a time. Fit small blanking
grommets to outer brackets making sure
the larger area faces the sensor. Fit outer
brackets as shown. Secure to indicator
mount using small self tapping screws. If
you wish to achieve a tighter hold bracket
may be bent slightly. Test sensor system.
FIT GROMMET TO
BRACKET
MOUNTING BRACKET
LARGER FOOT TO BOTTOM
