VEHICLE PREPARATION

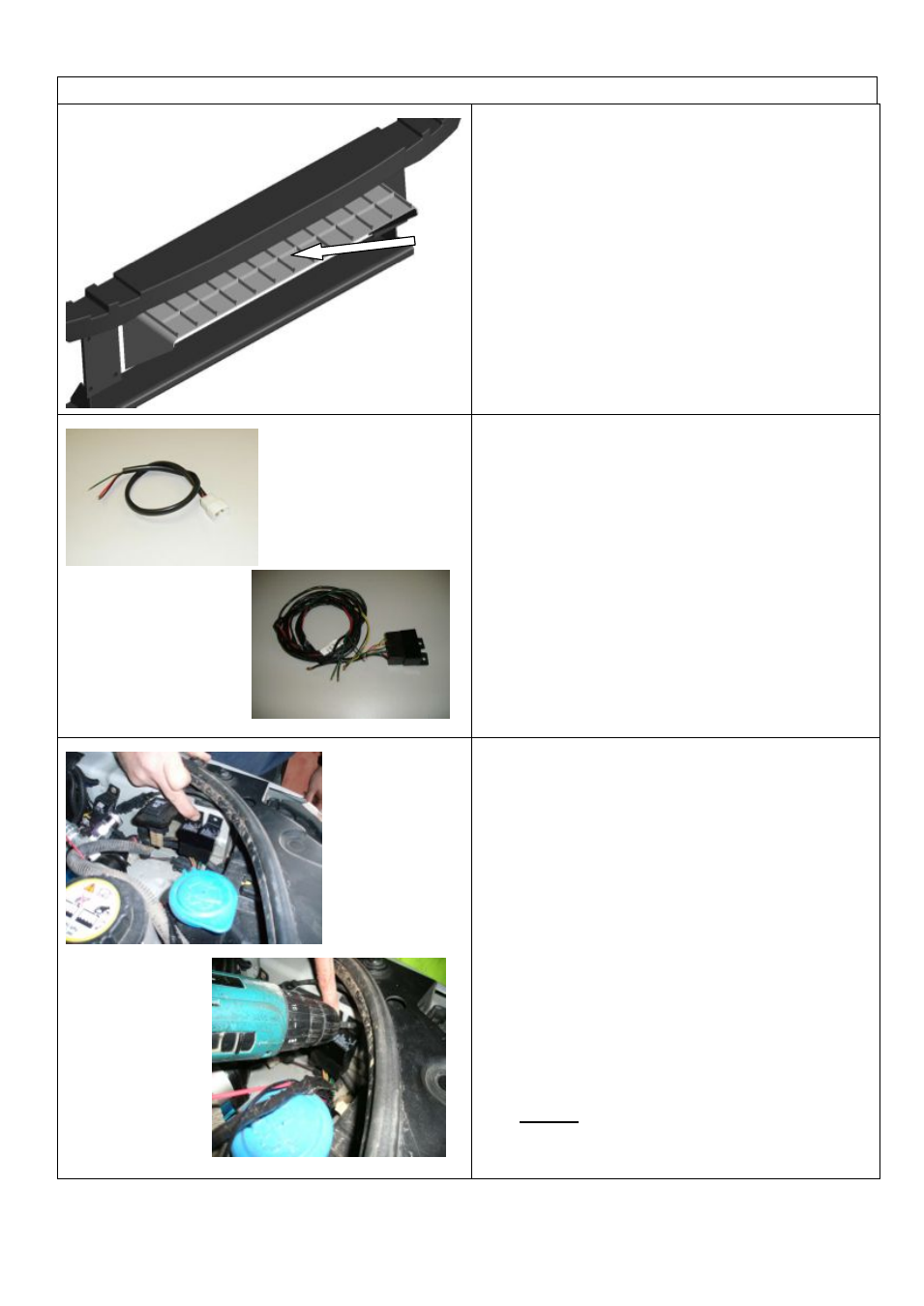

7. If fitting a winch the plastic air ram will
need to be removed.
Short loom .
Longer relay loom .
8. To wire up the indicators from the bull
bar to the vehicle indicators a short loom
must be fitted .
A longer loom with two relays is also to be
fitted in conjunction with the short turn
signal loom .
9. Open the bag containing the long wiring
loom with relays .
Lay the loom across the engine bay from
headlamp to headlamp with the relays on
the Left Hand ( battery ) side of
the vehicle .
Place the relays on the inner guard ( as
shown ) as close as possible to the
battery .
Using a drill and a Phillips head bit attach
the relays to the vehicle with the screws
provided .
Note :- Ensure wiring will not rub on
any metal part or sharp edges .
