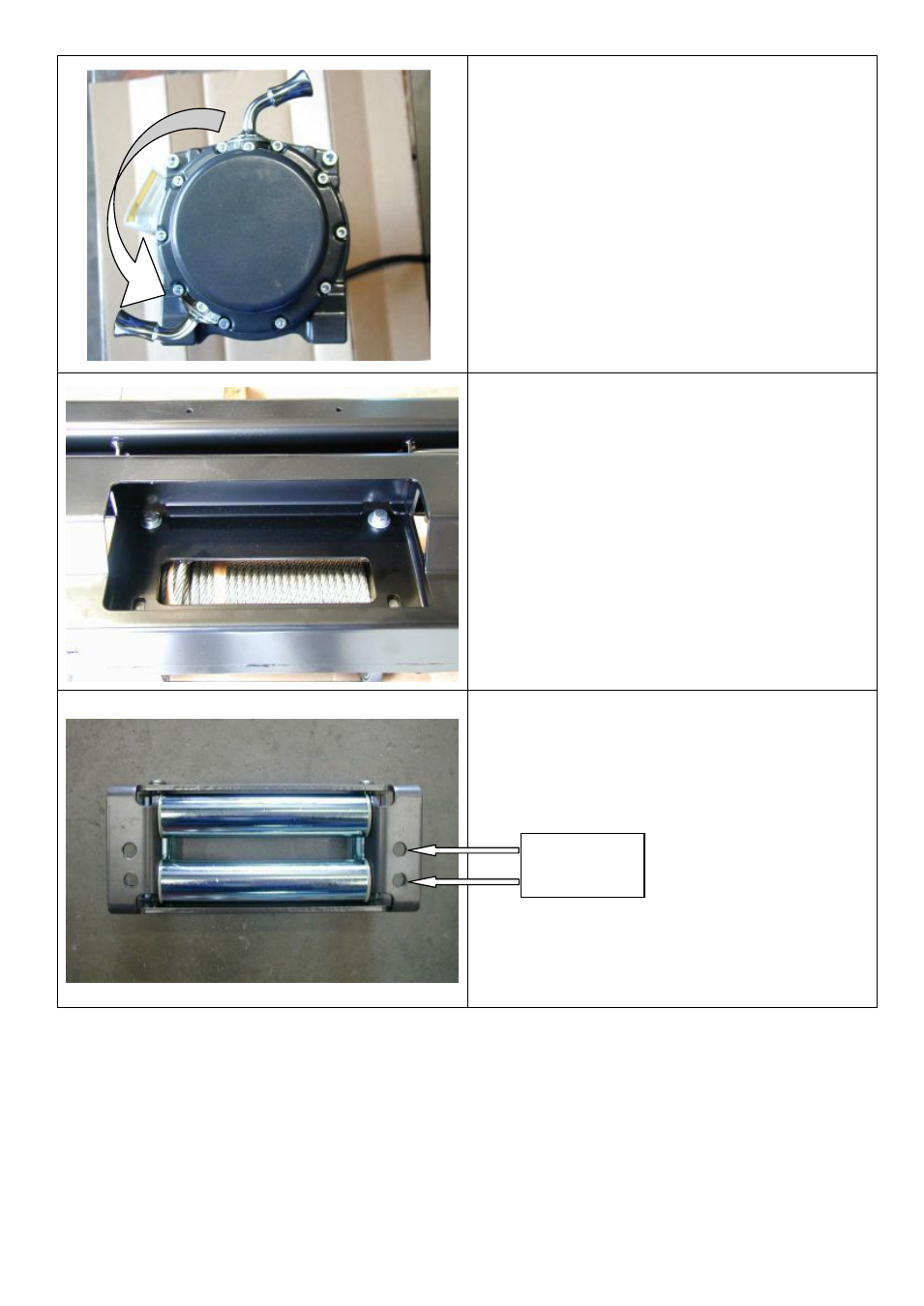

43. Remove the cap head screws retaining
the gearbox to the winch drum. Carefully
lift and rotate the gearbox 144 degrees
counter clockwise (four hole spacings)
and re-fit the cap screws.
44. Lay the winch on a suitable surface and
place the bull bar on top so that the wire
rope will feed from the bottom.
45. Using two 3/8” x 1 1/2” bolts, M10 flat and
spring washers, attach the bull bar to the
winch through the top two holes
46. Using a 12mm drill bit, drill two new holes
in the roller fairlead 25mm below the
original holes.
Drill the new
hole 25mm
below original
