MASKING BUMPER FOR TRIMMING

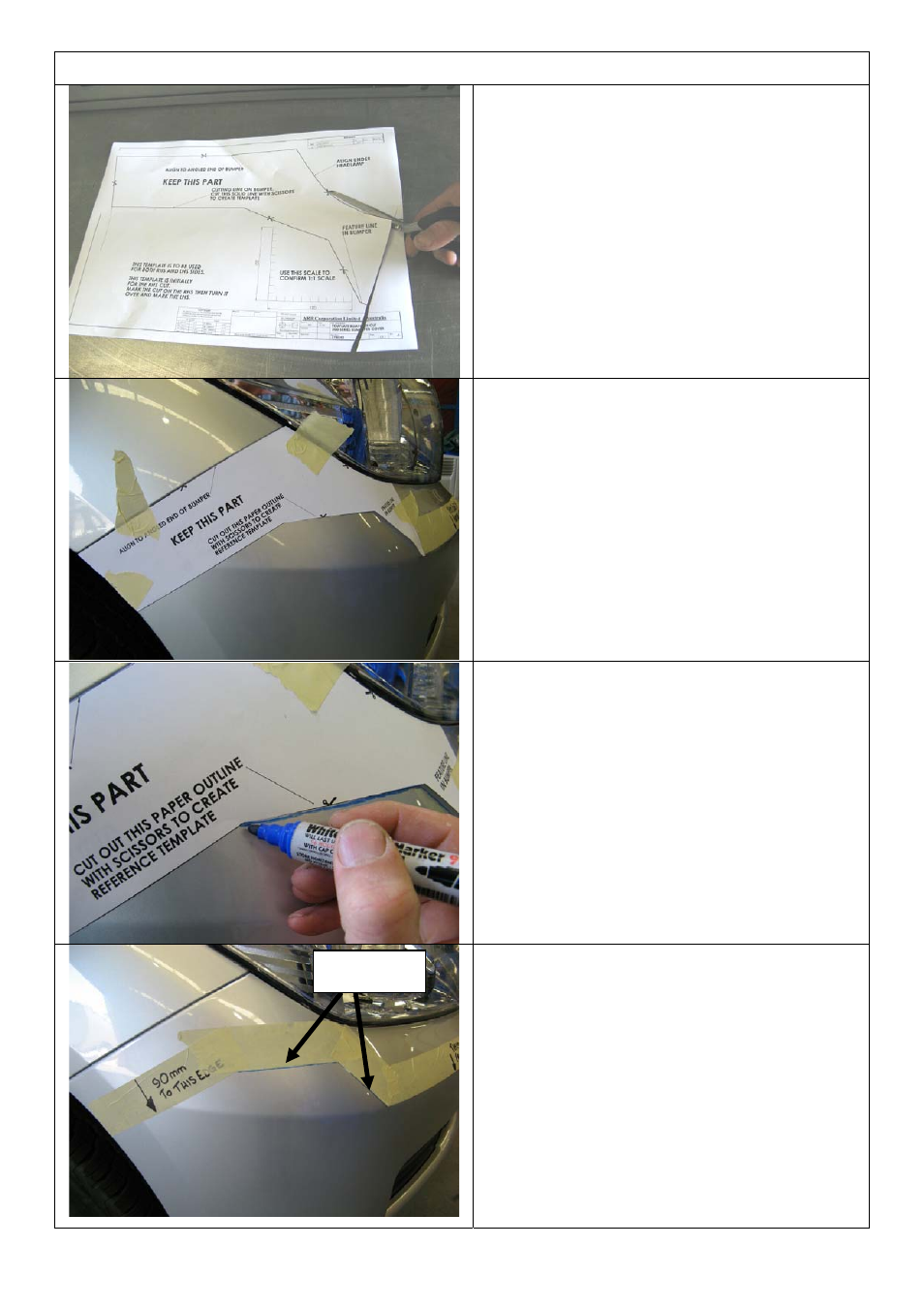

13. Cut A3 paper template along identified
cutting line.
NOTE: There is a scale on the sheet to
confirm that the template is 1:1 scale, this
is critical.
14. Apply template to outer corner of RHS
bumper as shown aligning accurately to
features such as the lower line of
headlamp and end of bumper. Tape in
position
15. Transfer cutting line to bumper
16. Apply masking tape aligning edge to
marked cut line as shown
17. Reverse template and apply to LHS of
bumper and follow same steps as RHS.
18. The bumper is now marked out for
cutting.
Cutting line
