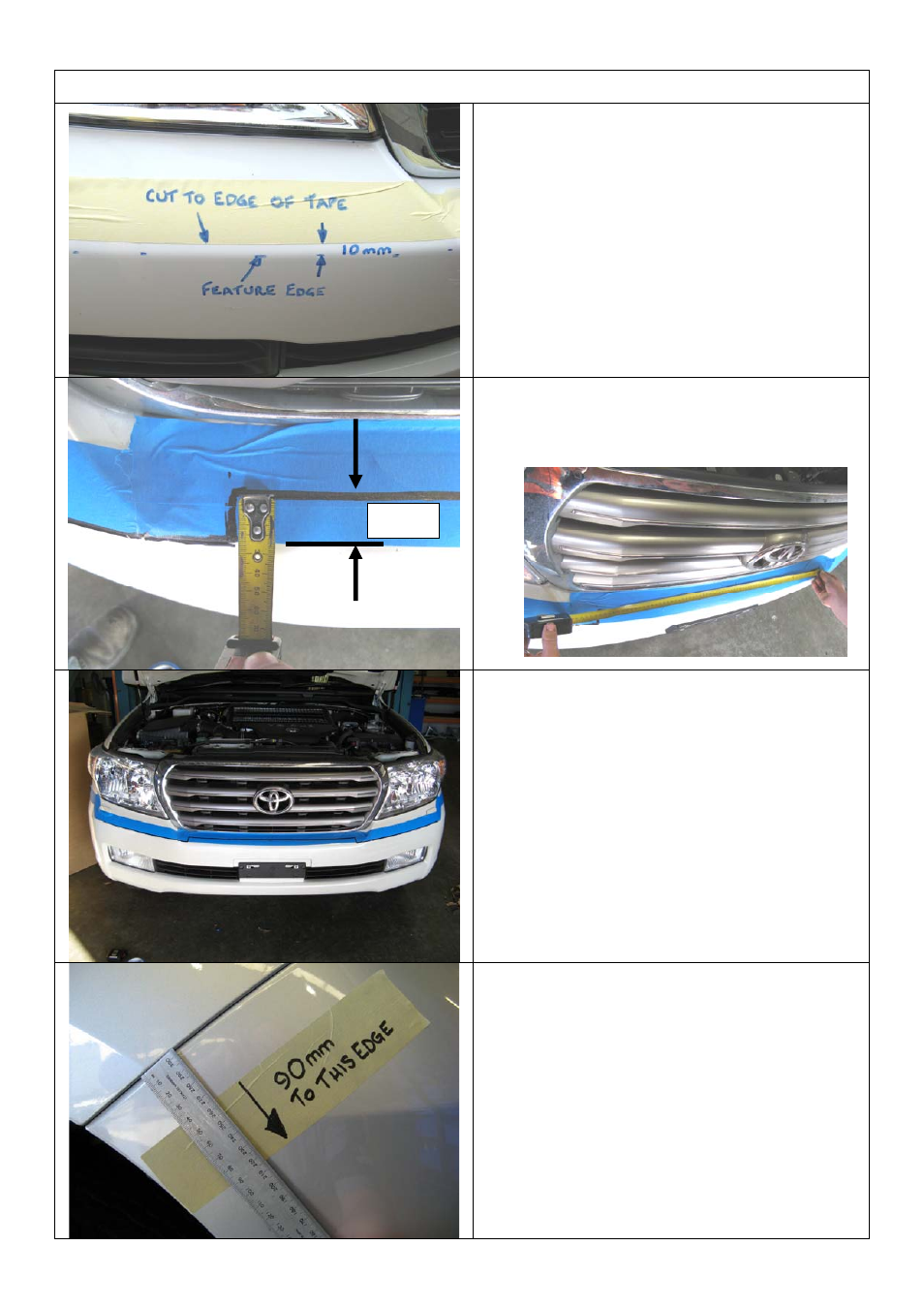

MASKING BUMPER FOR TRIMMING
9. Apply wide masking tape edge, carefully
aligning 10mm above bumper feature
line as shown. Keep the same line level
through the centre section of the bumper
as shown
Hint: Using a marking pen, run a line or
dashed lines along the feature line on the
bumper to assist in measuring the 10mm
offset for the tape application.
10. Mark out centre cut area of bumper as
shown, 740mm wide x 30mm back from
feature edge.
11. View of masking tape across bumper for
reference.
12. Apply approx.200mm of masking tape
with edge exactly 90mm from angled
bumper end as shown.
30mm
