Fitting bull bar to vehicle – ARB 3415120 User Manual
Page 19
Last Rev Date: 17 SEPTEMBER 2008
Page 19 of 20
Fitting instructions# 3783312
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
FITTING BULL BAR TO VEHICLE

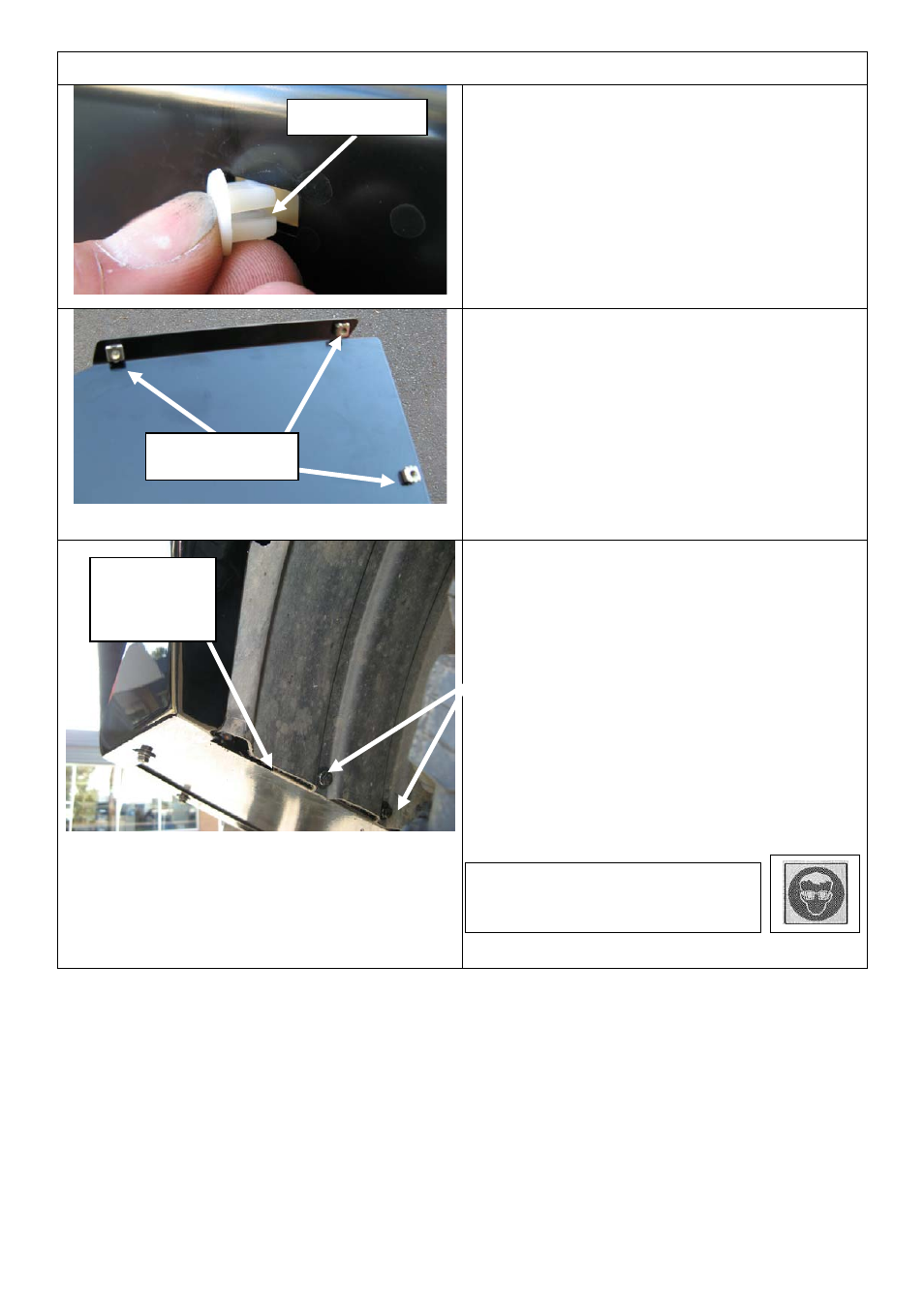

96. If fitting winch apply double sided tape
strip to top back of number plate. If not
fitting winch use top holes in number plate
and no adhesive is required.
97. Fit grommets to slots, with split horizontal
as shown
98. Fit number plate using supplied pan head
screws into grommets.
99. Fit 5 x M6 cage nuts to each wing splash
panel as shown on inside faces.
Note: LHS shown with 3 of 5 cage nuts inserted.
100. Fit panels up inside wings, secure using
M6 x 20 black bolts and washer sets.
101. Fix folded up slotted flange on panel to
top hole in side of main mount bracket
using M8 bolt set.
102. Tuck fender liner into wing return. Trim if
necessary
103. Mark out and drill 2 x Dia 7.0 mm holes in
each fender liner for securing to the
splash panel flange.
Hint: Scribe a line on the liner parallel to the
splash panel, measure and mark the position of
the required holes up from the marked line.
104. Use M6 x 20 black bolts and washer sets
to secure the fender liner to the panels.
105. Trim the fender liner end flush with the
splash panel face as shown.
Warning: Drilling operations can
result in flying debris, safety
glasses should be worn.
Fit cage nuts to
inside faces
Trim this
edge flush
with face of
panel
Split horizontal
