PREPARATION FOR MOUNT BRACKETS

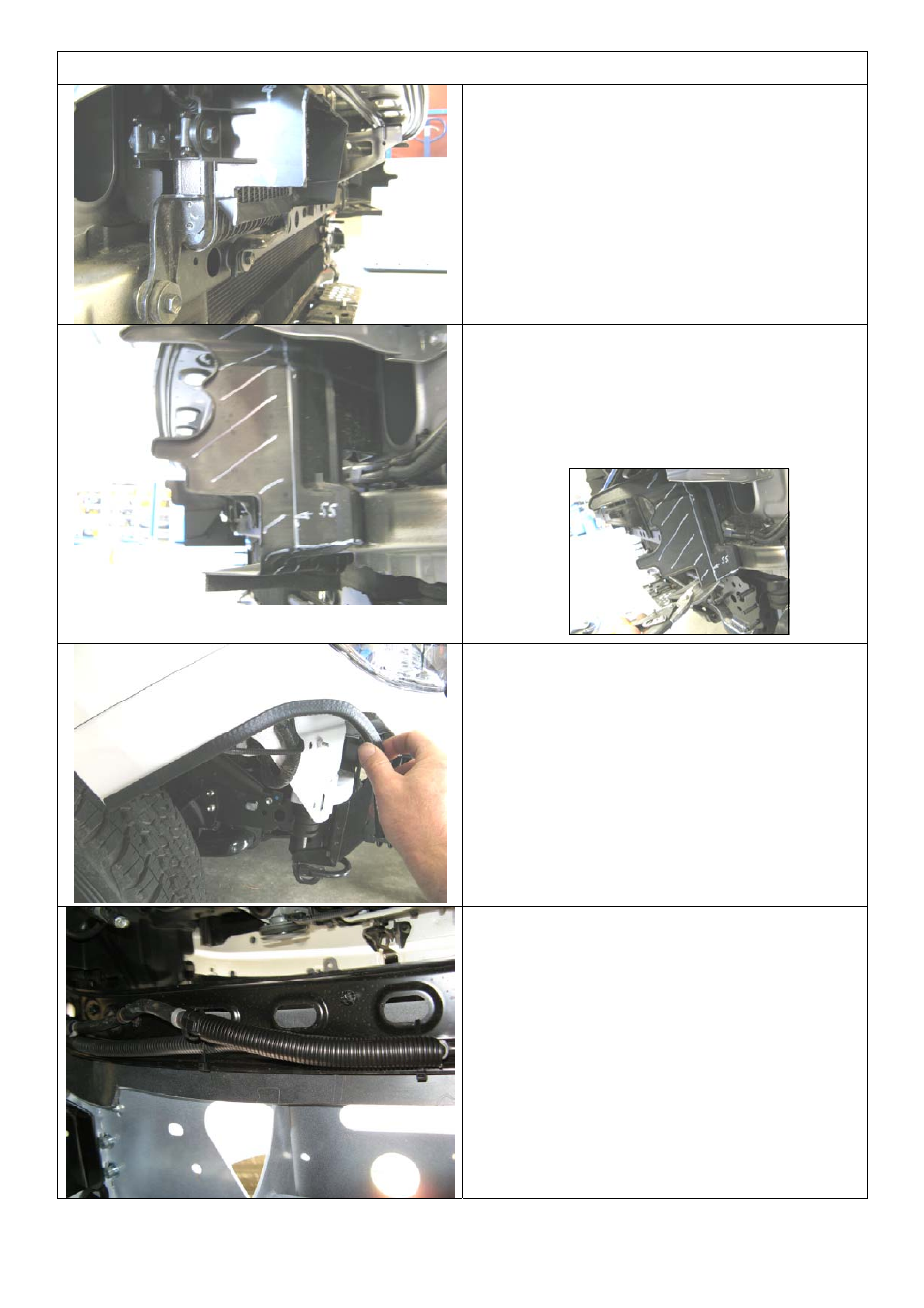

39. Refit to vehicle, it should now look like
this.
40. Mark out and trim the air deflector on the
LHS of the vehicle using a pair of tin snips
or similar.
Hint: You can do this on the vehicle as shown
below.
41. Fit the cut bumper and secure.
42. Fit the grille
43. Fit pinch weld to each end of the bumper
as shown
44. Secure the wing return in the wheel arch
area with one of the original dome head
screws each side.
45. Fit 2 x large rubber grommets to holes in
uprights inside the upper area of the bull
bar.
46. If fitting fog lamps, factory loom can be
reused and routed through the grommets
in uprights and along inside the lower lip
of the top pan.
47. If headlight cleaner circuit is to be refitted,
run hosing along the underside of the
grille cross member, cable tie in position
as shown Ensure that the tee is
centralised and then cable tie in position
