FITTING BULL BAR TO VEHICLE

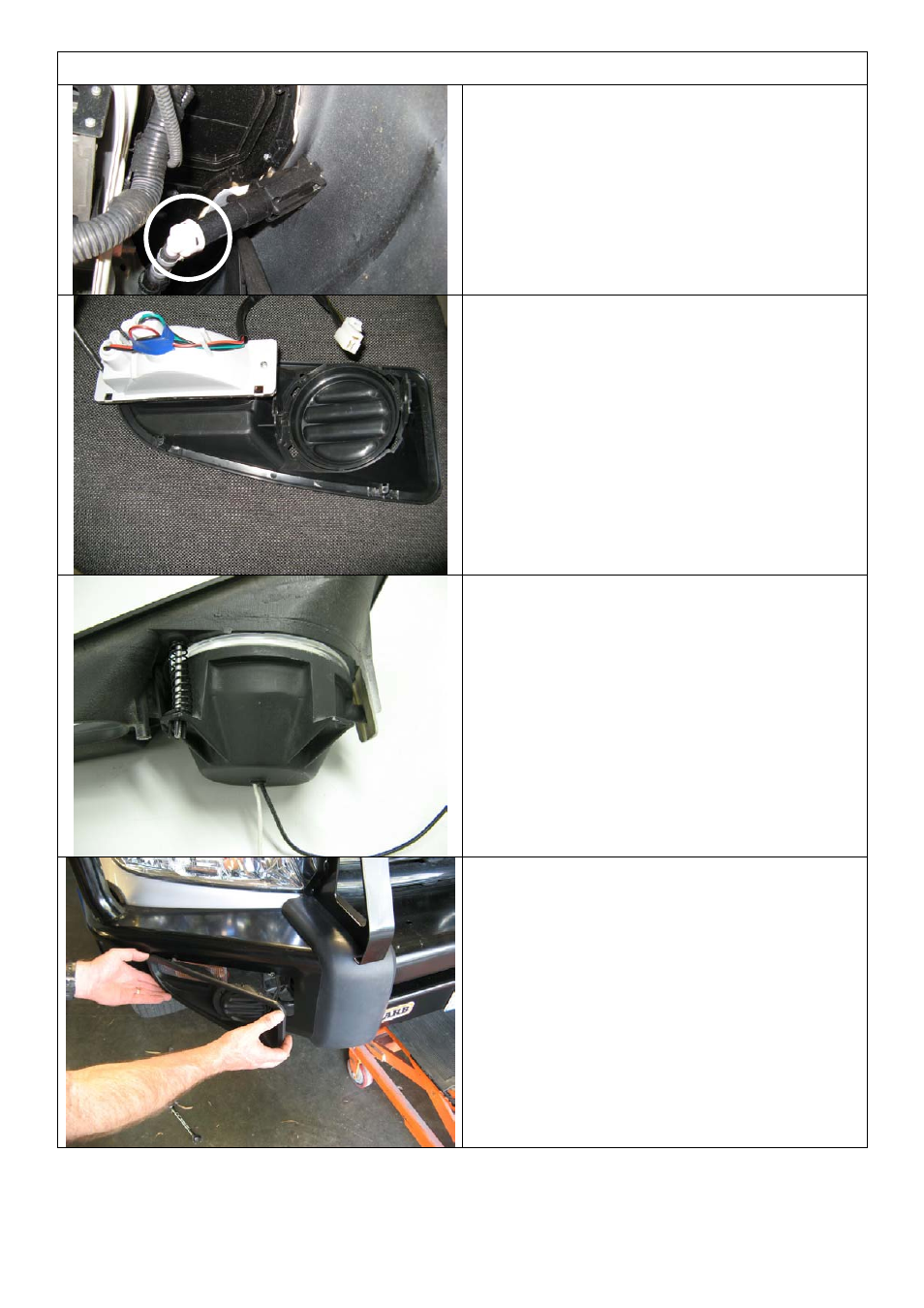

81. If headlight cleaner system to be fitted,
reconnect circuit at main joint to vehicle
and also hoses to tails of spray heads
82. Remove and discard screws and speed
nuts on supplied indicators.
83. Using the 25mm long pan head screws in
the fitting kit, fit indicators to light
surrounds, note that the indicators are
handed and drain holes must be on the
lowest edge.
84. If fitting fog lamps, refer to instructions
supplied with kit.
85. Fit insert assemblies into the wings as
shown
86. Fit the 4 x clamps to secure light
assembly in position.
HINT: You can loose fit the top two screw
and clamp sets before loading the assembly
into the wing to make fit up easier.
