Installation, Moving the lens – BOXLIGHT Matinee 1HD User Manual
Page 16
16
Installation

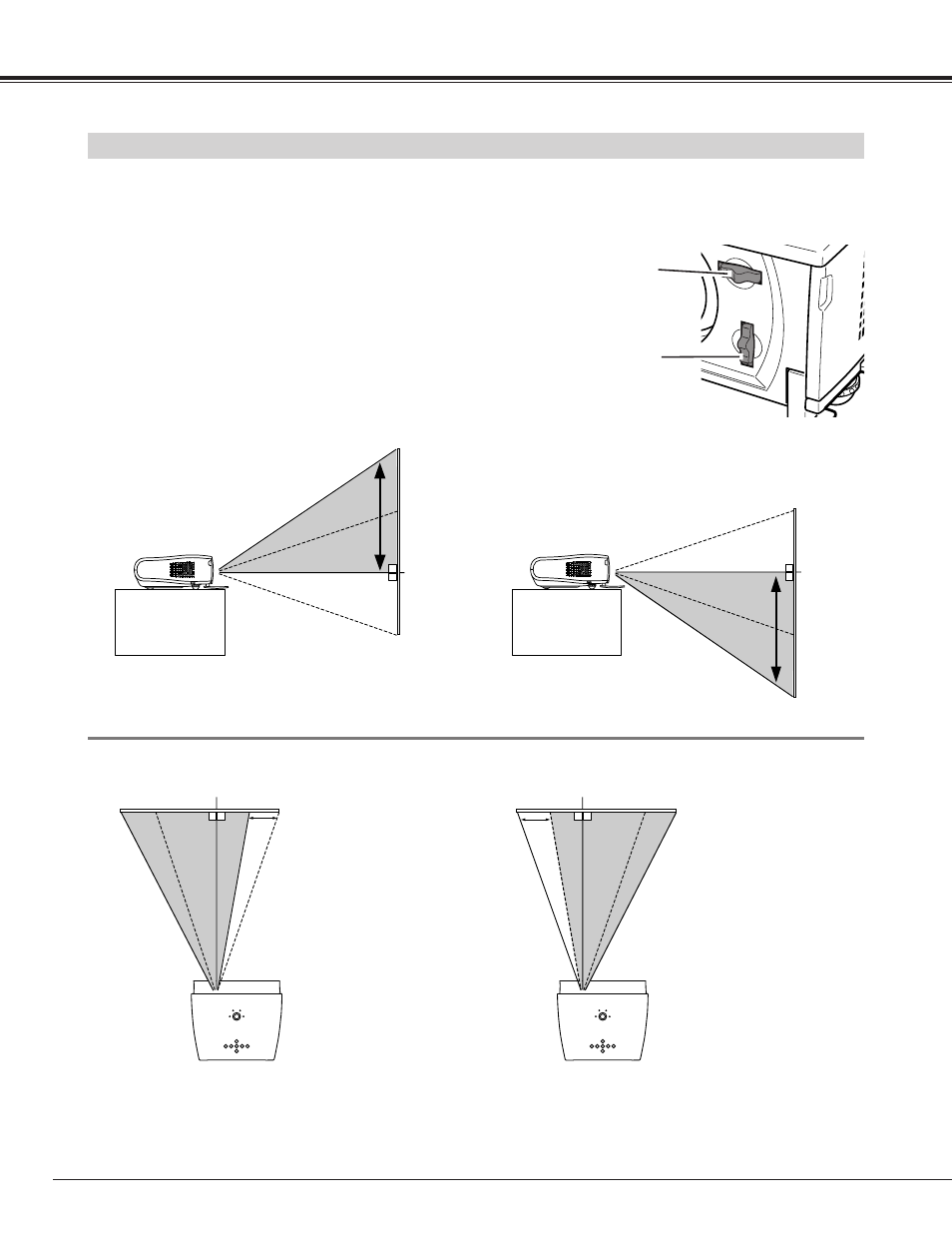

The Projection lens can be moved up and down with manual lens shift function. This function makes it easy to provide a
projected image where you want. U/D ratio can be adjusted from 10 : 0 ~ 0 : 10 (refer to the figures below).
Moving the Lens
UPPERMOST
LENS SHIFT RING
(LEFT/RIGHT)
Turn the lens shift ring (left/right) left/right to move the lens leftward /
rightward.
Turn the lens shift ring (up/down) up/down to move the lens upward /
downward.
LENS SHIFT RING
(UP/DOWN)
DOWNMOST
LEFTMOST
RIGHTMOST
LENS SHIFT UP/DOWN
LENS SHIFT LEFT/RIGHT
25%
25%
NOTE
The best image is generally obtained at the center without the Lens shift.
