Installation

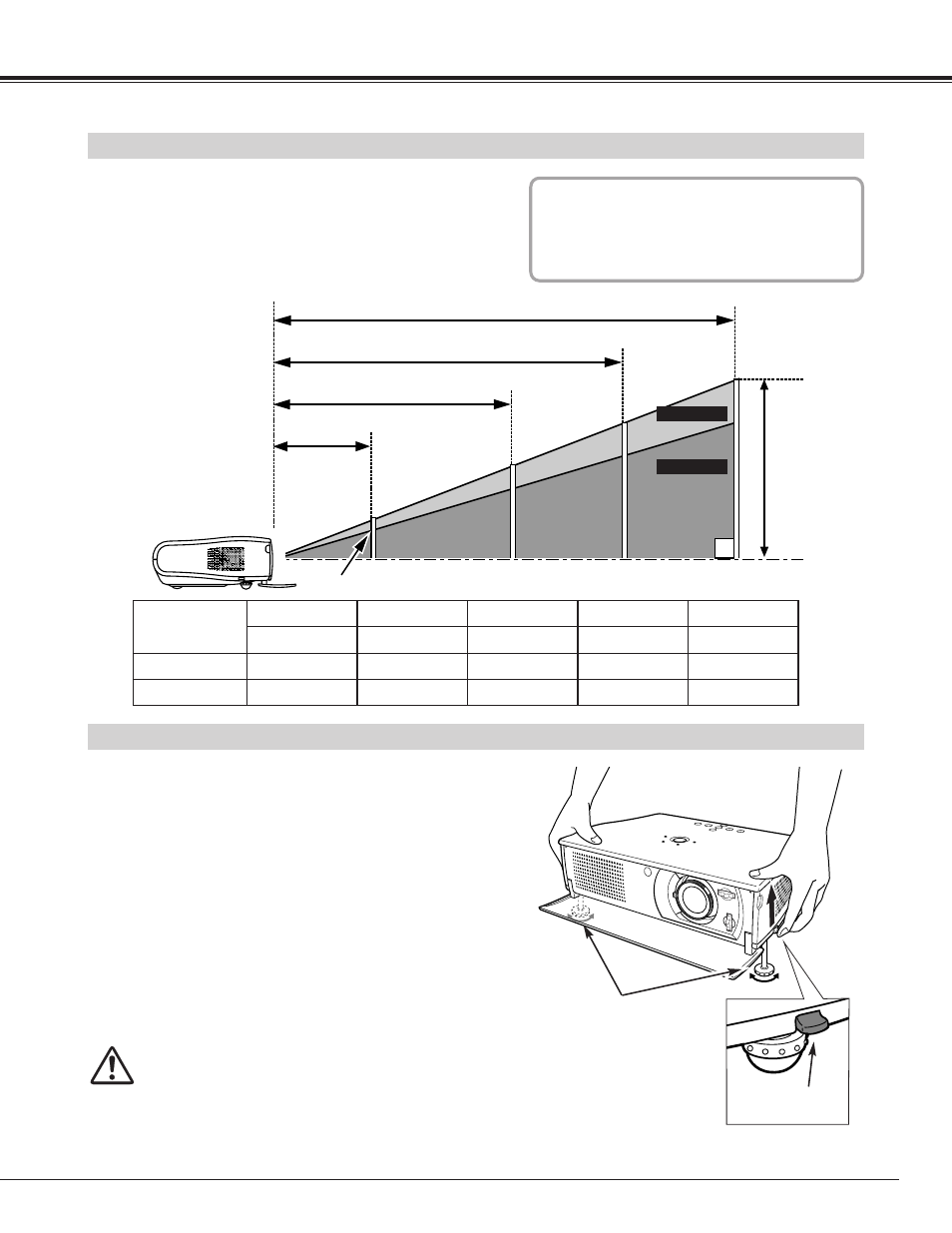

Positioning the Projector
Tilting the Projector
Picture tilt and projection angle can be adjusted by rotating the
Adjustable feet. Projection angle can be adjusted up to 11.8
degrees with the Adjustable feet.
Lift the front of the projector and pull the Feet lock latches on
both sides of the projector. 1
ADJUSTABLE FEET
FEET LOCK
LATCH
Release the Feet lock latches to lock the Adjustable feet and
rotate the Adjustable feet to adjust position and tilt. 2
To retract the Adjustable feet, lift the front of the projector
and pull and undo the Feet lock latches.
Keystone distortion of a projected image can be adjusted by
menu operation or the remote control. (Refer to page 21 and
42.) 3
CAUTION
Tilt the projector within the adjustable range in order not to shorten
the life of the lamp. Proper angle should be taken. Refer to page
5.
● This projector is designed to project on a flat projection surface.
● The projector can be focused from 3.6’(1.1m) ~ 19.7’(6.0m).
● Refer to the figure below to adjust a screen size.
40”
100”
150”
200”
169”
125”
83”
31”
19.7’(6.0m)
14.8’ (4.5m)
9.8’ (3.0m)
3.9’(1.2m)
ROOM LIGHT
The brightness in a room has a great influence on
picture quality. It is recommended to limit
ambient lighting in order to provide the best
image.
Max. Zoom
Min. Zoom
Screen Size
(W x H) mm
Zoom (min)
40”
Zoom (max)
884 x 497
4.6' (1.4m)
3.9’ (1.2m)
100”
2209 x 1244
11.8' (3.6m)
9.8’ (3.0m)
150”
3314 x 1866
17.7' (5.4m)
14.8' (4.5m)
200”
4419 x 2489
–––––
19.7’(6.0m)
30"
663 x 373
3.6’(1.1m)
–––––
H
*The lens is at the top of the lens shift.
