ELECTRICAL HOOK-UP

WARNING – If the power cord is ever damaged, it must be replaced by the manufacturer or authorized service

personel with a special cord available from the manufacturer or its authorized service personel in order to
avoid a hazard. Improper electrical installation will damage electronic components. Damage caused by
incorrect electrical connections is not covered by warranty.

1. An electrician must provide electrical service.
2. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.
NOTE

- The brewer is shipped without a plug on the power cord. Qualifi ed service personnel must select

and install the proper UL listed grounding type attachment plug specifi ed on the rear of the brewer.

3. Install the specifi ed plug on the attached power cord.
4. Remove the front panel beneath the sprayheads to gain access to the terminal block.
5. Connect the brewer to the power source and verify the voltage at the terminal block before proceeding.
6. If plumbing is to be hooked up later be sure the brewer is disconnected from the power source. If plumb-

ing has been hooked up, the brewer is ready for Initial Set-Up.

WARNING – Electrical connections must be made as specifi ed above. Failure to follow these instructions can

result in personal injury, property or equipment damage.

35058.1 071205

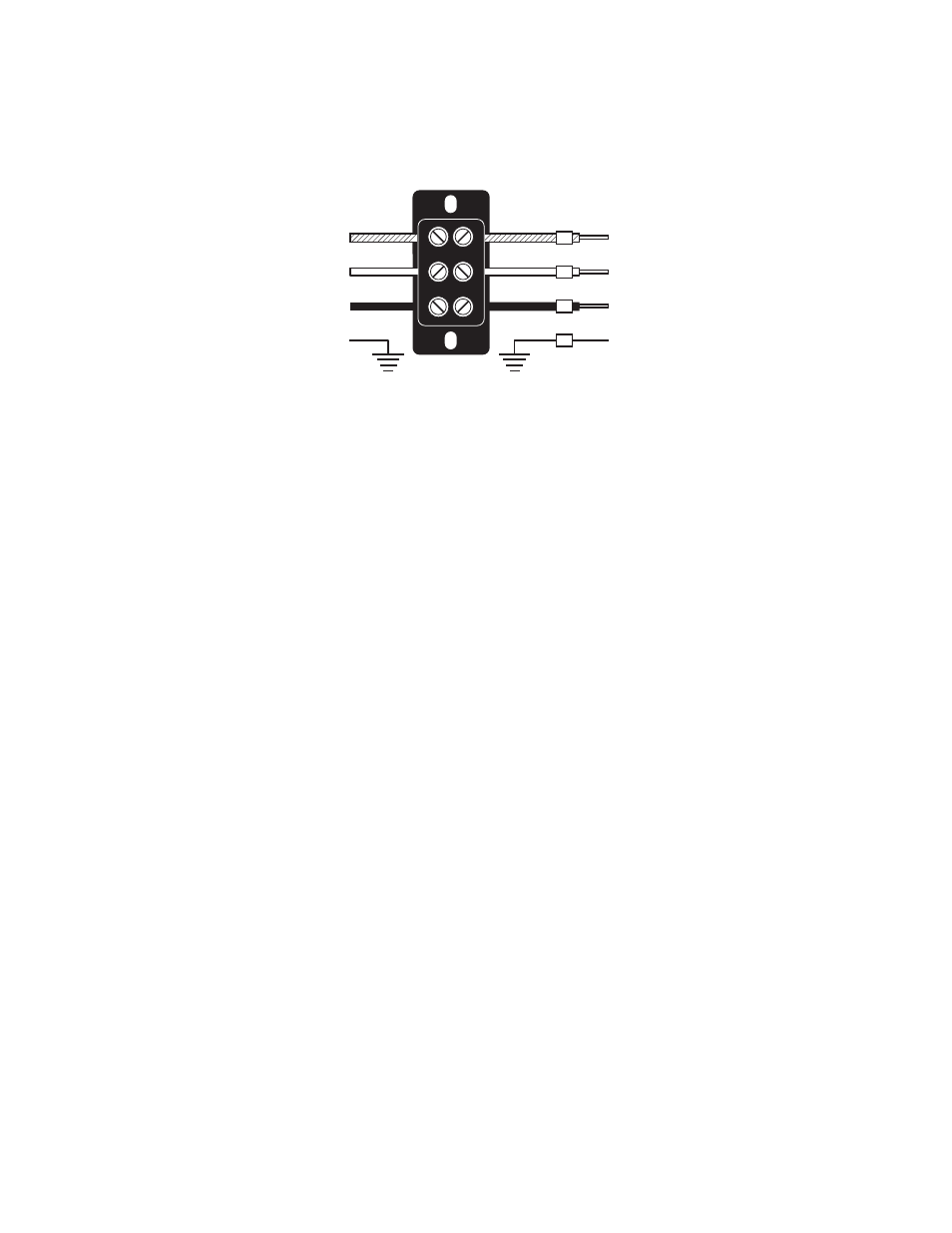

120/208 and 120/240 volt ac

single phase, 60 Hz models

Note: This electrical service consists
of 3 current carrying conductors
(Neutral, L1 and L2) and a separate
conductor for earth ground.

L2

N

L1

G

L2 RED

WHITE

GREEN

GREEN

NEUTRAL

L1 BLACK

L2 RED

WHITE

NEUTRAL

L1 BLACK

ELECTRICAL REQUIREMENTS (Models with power cord)

WARNING - The brewer must be disconnected from the power source until specifi ed in Initial Set-Up.

Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements.
