Manually Configuring your Modem Manually Configuring your Modem
33
se
ct
io
n
2
1
3
4
5
6
7

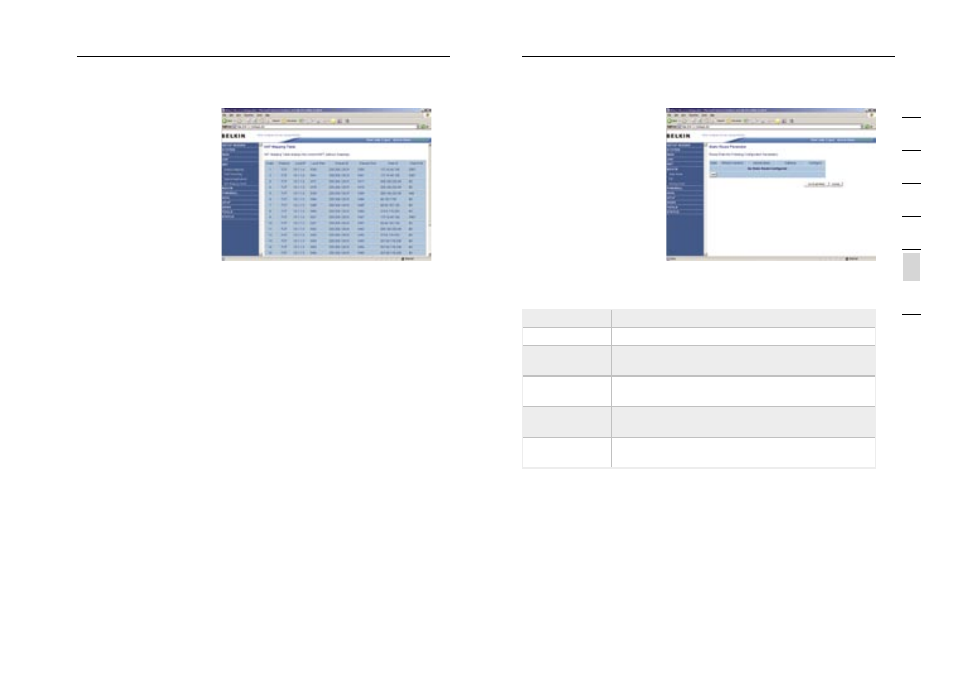

NAT Mapping Table
NAT Mapping Table
displays the current
NAPT (Network Address
Port Translation) address
mappings. The NAT
address mappings are
listed 20 lines per page,
click the control buttons
to move forwards and
backwards. As the NAT
mapping is dynamic, a
Refresh button is provided
to refresh the NAT
Mapping Table with the
most up-to-date values.
The content of the NAT Mapping Table is described as follows:
•
Protocol - protocol of the flow.
• Local IP - local (LAN) host’s IP address for the flow.
• Local Port - local (LAN) host’s port number for the flow.
• Pseudo IP - translated IP address for the flow.
• Pseudo Port - translated port number for the flow.
• Peer IP - remote (WAN) host’s IP address for the flow.
• Peer Port - remote (WAN) host’s port number for the flow.
Route
These pages define routing related parameters, including static routes
and Routing Information Protocol (RIP) parameters.
Static Route Parameters
Static routing is the manual method used to set up routing. A network
administrator enters routes into the Modem using the following
screens. This method has the advantage of being predictable, and
simple to set up. It is easy to manage in small networks but does not
scale well.
Parameter Description
Index Displays the number of the route.
Network
Address Displays the IP address of the remote computer
for which to set a static route.
Subnet Mask Displays the subnet mask of the remote network
for which to set a static route.
Gateway Displays the WAN IP address of the gateway to
the remote network.
Configure Allows you to modify or delete configuration
settings
