Page 15

Manually Configuring your Modem

Encapsulation

Shows the packet encapsulation type.
Packet encapsulation specifies how to handle
multiple protocols at the ATM transport layer.
•

VC-MUX: Point-to-Point Protocol over ATM Virtual
Circuit Multiplexer (null encapsulation) allows only
one protocol running per virtual circuit with less
overhead.

•

LLC: Point-to-Point Protocol over ATM Logical
Link Control allows multiple protocols running over
one virtual circuit (using slightly more overhead).

QoS Class

ATM QoS classes including CBR, UBR and VBR.

PCR/SCR/MBS

QoS Parameters - PCR (Peak Cell Rate), SCR
(Sustainable Cell Rate) and MBS (Maximum Burst
Size) are configurable.

IP Address

If your IP address is assigned by the ISP each time
you connect, leave this field all zeros. Otherwise,
enter your ISP supplied static IP address here.

Subnet Mask

If your subnet mask is assigned by the ISP
each time you connect, leave this field all zeros.
Otherwise, enter your subnet mask here.

Connect Type

Sets connection mode to always connected,
automatic or manual connection.
Idle Time Enter the maximum idle time for the
Internet connection. (minutes) After this time has
been exceeded the connection will be terminated.

Username

Enter user name.

Password

Enter password

Confirm
password

Confirm Password

MTU

Leave the Maximum Transmission Unit (MTU)
at the default value (1500) unless you have a
particular reason to change it.

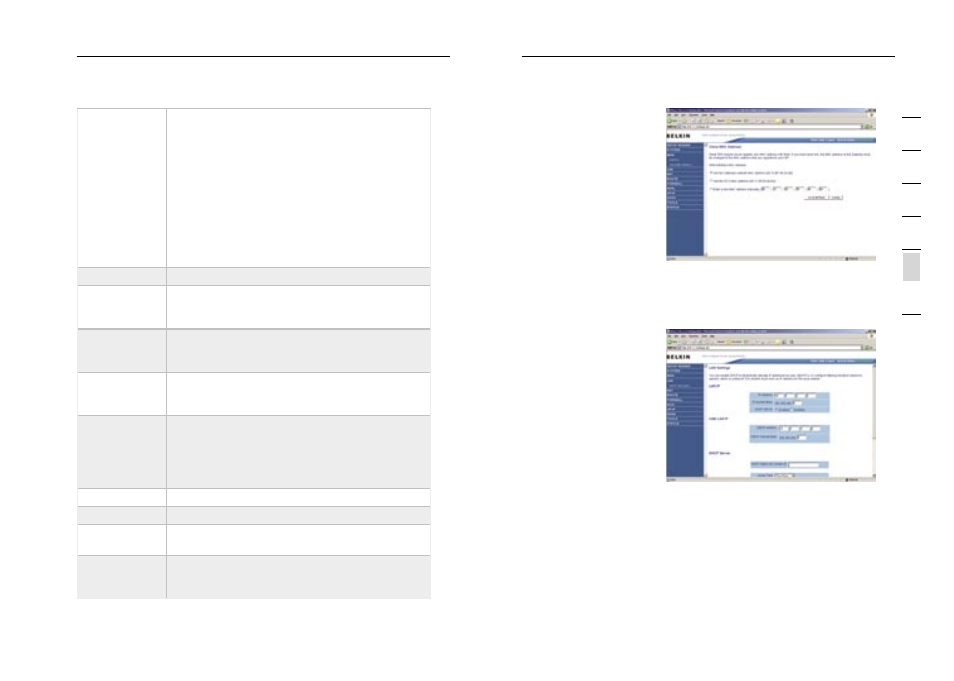

Clone MAC Address
Clicking on the Clone
MAC Address brings up
the following screen.
Some ISPs may require
that you register your
MAC address with them. If
this is the case, the MAC
address of the Modem
must be changed manually
to the MAC address that
you have registered with
your ISP. Most ISP’s in
Australia and New Zealand
do not require this option.

LAN
Use the LAN (Local
Area Network) menu to
configure the LAN IP
address and to enable the
DHCP server for dynamic
client address allocation.
