Configuring the WURE
11 10
Configuring the WURE
3.2
Click the “Refresh” button. The Utility will detect the
WURE(s) connected to your network. Select the WURE you
wish to configure.
3.3
If your WURE’s IP address is not in the same subnet as your
network, the “Set IP Address” button will be enabled. Click

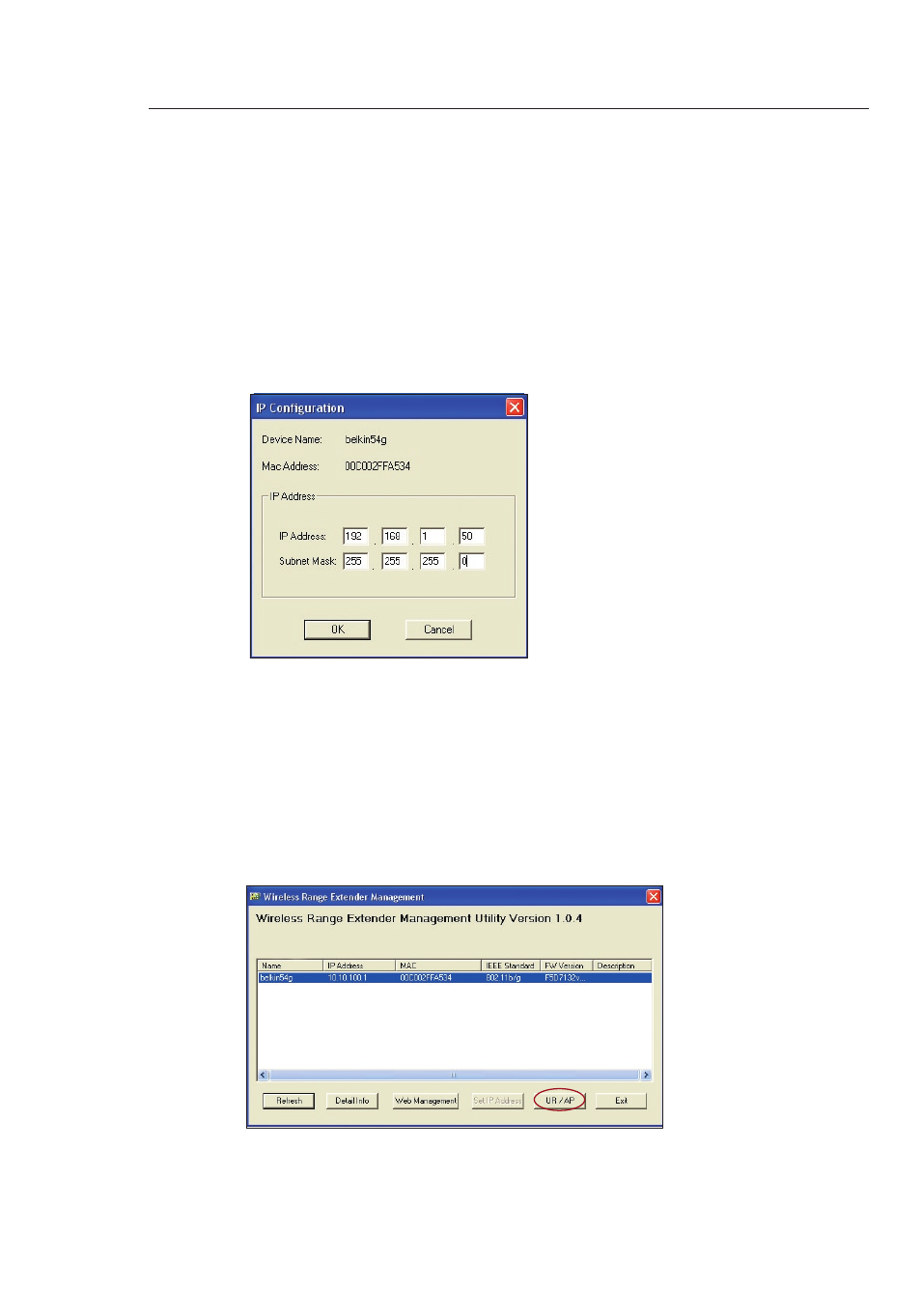

the “Set IP Address” button. A pop-up screen will appear.
3.4
Set the IP address of your WURE to be within the same sub-
net as your network. For example, if your router’s IP address
is 192.168.1.1, set your WURE to 192.168.1.xx (xx would
be any number between 2–254). Be careful of duplicate IP
addresses on your network. Then set the subnet mask to be
the same as your network’s subnet mask.
3.5
Click the “UR/AP” button.
Wireless Range Extender
NOTE:
If the “UR/AP” button is grayed out, click the
“Refresh” button.
