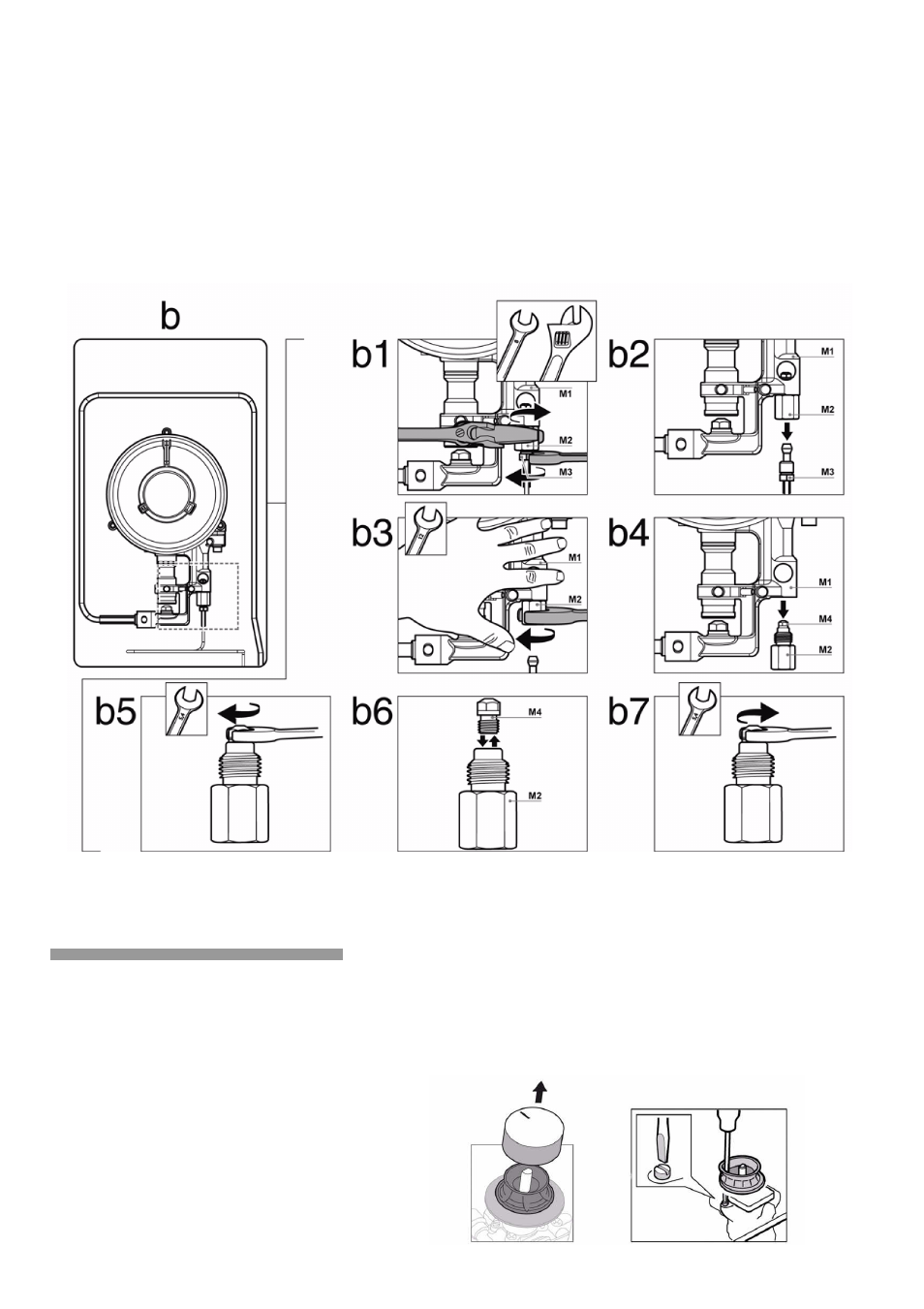

Changing the inner flame
nozzle (fig. 12)
- Unscrew the part M3 from the threaded part M2; to do
this, hold the threaded part in the opposite direction.
- Remove the pipe from the part M2. Fig. b2.
- Disassemble the assembly of parts M2 and M4 from
part M1. Fig. b3-b4.
- Remove the inner flame nozzle M4 from part M2.
Fig. b5-b6.
- Screw in the new inner flame nozzle M4. Fig. b6-b7.
Refit all the components, proceeding in the reverse order to
removal.
Adjustment of the
taps
Set the control knobs to minimum.
Remove the control knobs from the taps. Fig. 13.
It has a flexible rubber valve reinforcing ring. Simply press
on this seal with the tip of a screwdriver to allow access
to the tap adjusting screw.
Fig. 12
Fig. 13
