Controls and displays 03
24
En

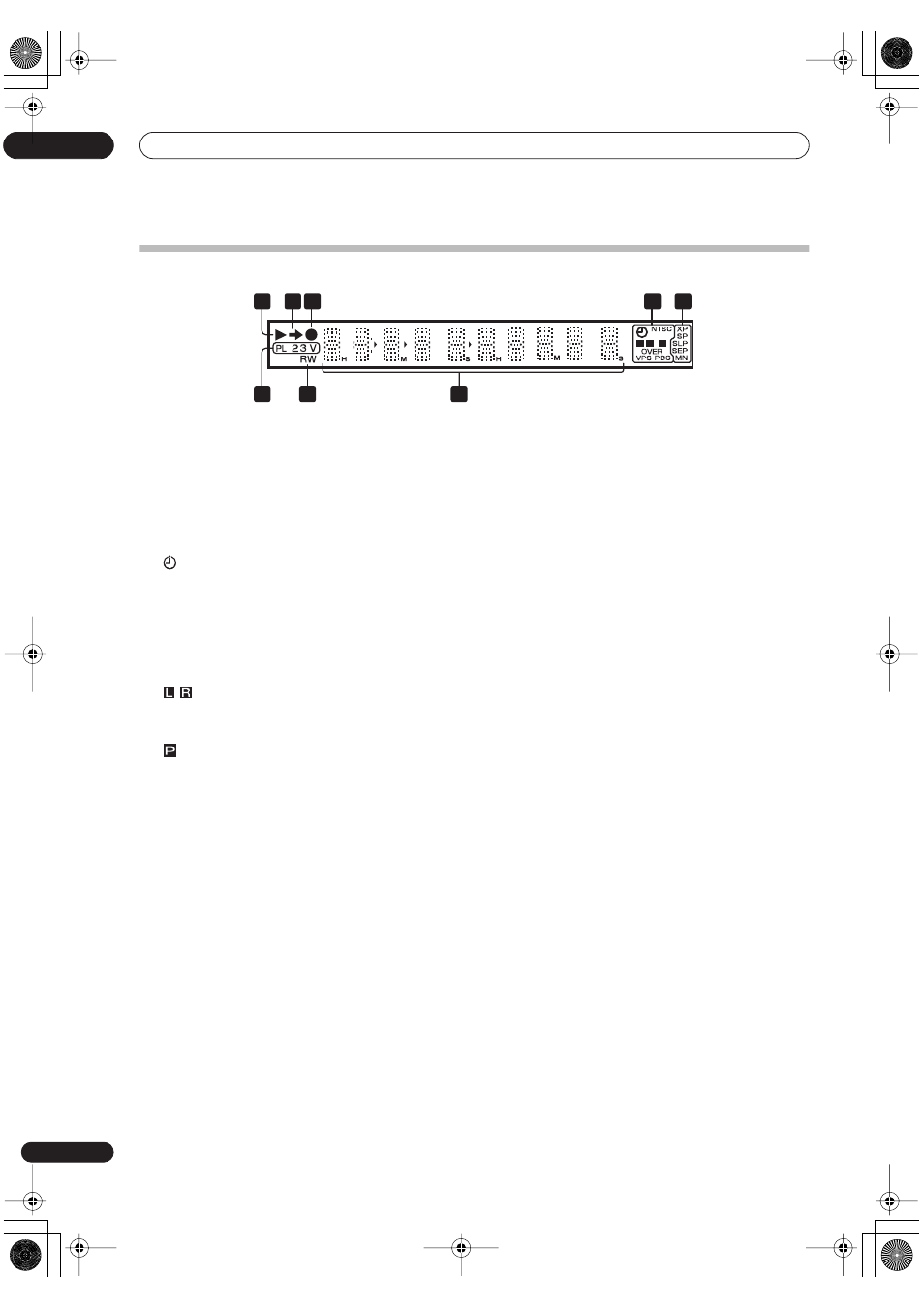

Display
1
Lights during playback; blinks when playback is paused.
2
Lights when copying.
3 ì
Lights during recording; blinks when recording is
paused.
4 (page 39)
Lights when a timer recording has been set.
(Indicator blinks if the timer has been set to DVD but
there isn’t a recordable disc loaded, or the timer has
been set to HDD but the HDD is not recordable.)
NTSC
Lights when playing NTSC format video.
(page 102)
Indicates which channels of a bilingual broadcast
are recorded.
(page 101)
Lights when the component video output is set to
progressive scan.
OVER (page 103)
Lights when the analog audio input level is too high.
VPS / PDC (page 53)
Lights when receiving a VPS/PDC broadcast during a
VPS/PDC-enabled timer recording.
5 Recording quality indicators (page 50)
XP
Lights when the recording mode is set to XP (best
quality).
SP
Lights when the recording mode is set to SP
(standard play).
LP / SLP
Lights when the recording mode is set to LP (long
play) or SLP (super long play).
EP / SEP
Lights when the recording mode is set to EP
(extended play) or SEP (super extended play).
MN
Lights when the recording mode is set to MN
(manual recording level) mode.
6 Character display
7 R / RW
Indicates the type of recordable DVD loaded: DVD-R or
DVD-RW.
8 PL (page 81)
Lights when a VR mode disc is loaded and the
recorder is in Play List mode.
2 3 (page 106)
Shows the remote control mode (if nothing is
displayed, the remote control mode is 1).
V
Lights when an unfinalized Video mode disc is
loaded.
P R L
8 7
2 4 3 5
6
1
