Connecting up
02
15
En

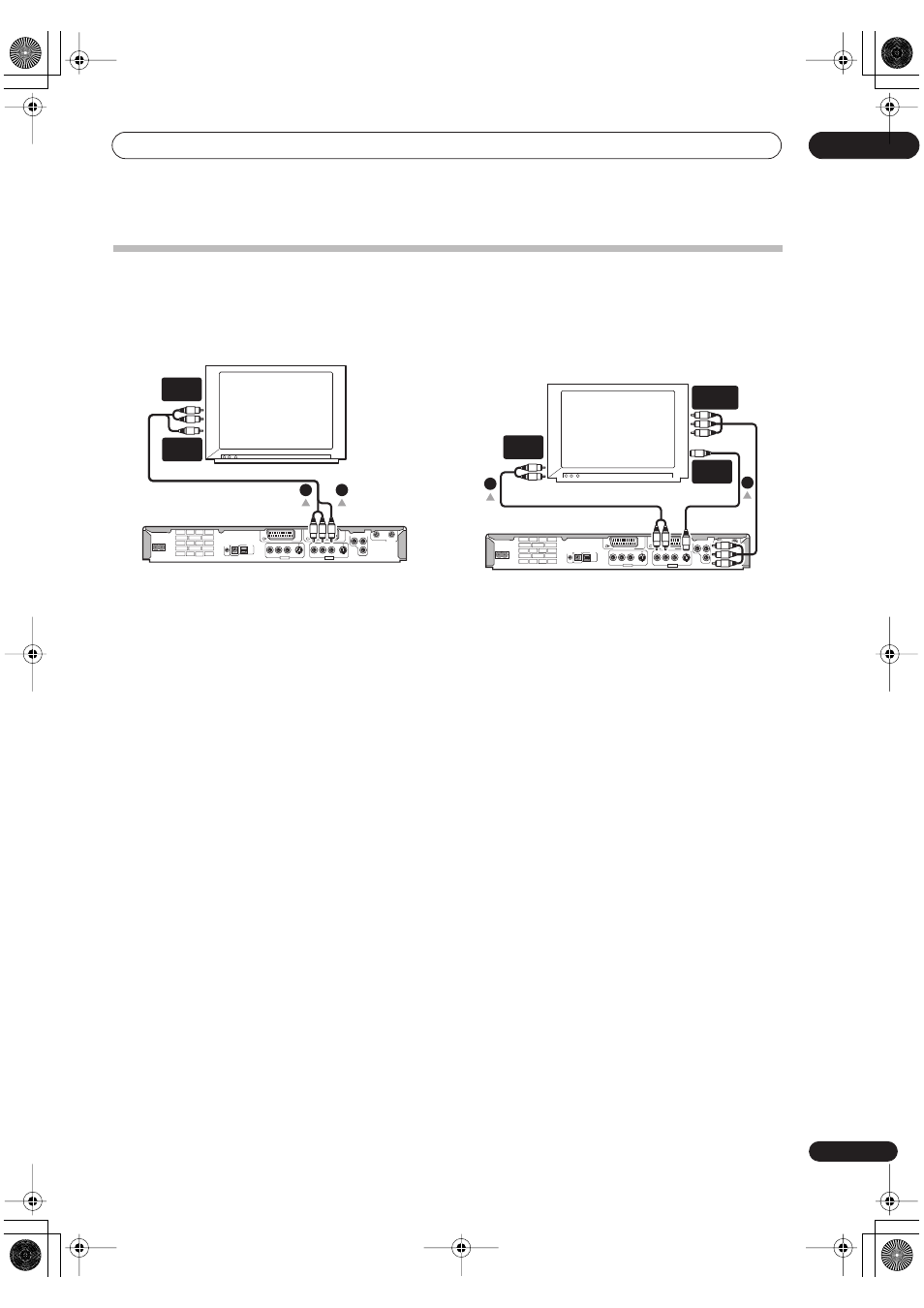

Using other types of audio/video output
If you can’t use the SCART AV connector to connect your TV to this recorder, there are standard audio/video output
jacks, as well as an S-video and component video output.
Using the supplied audio/video cable
1
Connect the VIDEO OUTPUT jack to a video input
on your TV.
Use the yellow jack of the supplied audio/video cable for
the video connection.
2
Connect the AUDIO OUTPUT jacks to the
corresponding audio inputs on your TV.
Use the red and white jacks of the supplied audio/video
cable for the audio connection. Make sure you match up
the left and right outputs with their corresponding inputs
for correct stereo sound.
Using the S-video or component video
output
1
Connect the S-video or component video output
to a similar input on your TV.
For an S-video connection, use an S-video cable (not
supplied) to connect the
S-VIDEO OUTPUT
jack to an S-
video input on your TV
For a component video connection, use a component
video cable (not supplied) to connect the
COMPONENT
VIDEO OUT
jacks to a component video input on your TV.
See also
Component Video Out
on page 101 for how to set
up the component video output for use with a progressive
scan-compatible TV.
2
Connect the AUDIO OUTPUT jacks to the
corresponding audio inputs on your TV.
You can use the supplied audio/video cable, leaving the
yellow video plug disconnected. Make sure you match up
the left and right outputs with their corresponding inputs
for correct stereo sound.
TV
DIGITAL
OUT
CONTROL
G-LINK
IN
OPTICAL
AV 1 (RGB) – TV
AV 2 (INPUT 1/DECODER)
S-VIDEO
VIDEO
AUDIO
L
R
COMPONENT VIDEO OUT
Y
P
B
P
R
ANTENNA
IN
OUT
AC IN
OUTPUT
S-VIDEO
VIDEO
AUDIO
L
R
INPUT 3
VIDEO
INPUT
AUDIO
INPUT
1
2
TV
DIGITAL
OUT
CONTROL
G-LINK
IN
OPTICAL
AV 1 (RGB) – TV
AV 2 (INPUT 1/DECODER)
S-VIDEO
VIDEO
AUDIO
L
R
COMPONENT VIDEO OUT
Y
P
B
P
R
ANTENNA
IN
OUT
AC IN
OUTPUT
S-VIDEO
VIDEO
AUDIO
L
R
INPUT 3
S-VIDEO
INPUT
COMPONENT
VIDEO INPUT
AUDIO
INPUT
1
2
